Product parameters:
- Communication protocols: DH+, PLC-2 Serial, PLC-3 Serial
- Baud rate: Asynchronous (PLC-2 & PLC-3 CPUs) – 9.6/19.2 Kbps, Synchronous (Data Highway Plus) – 57.6 Kbps
- Cable length: PLC-2 & PLC-3 – 10 ft (3m), DH+ PLC-3 and PLC-5 – 10,000 ft (3,050m) @ 57.6 Kbps
- Output connector: 62-Pin D-shell
- Hardware interrupts: IRQ3 (Com2), IRQ4, IRQ5, IRQ7
- Power requirements: +5VDC @ 0.4A, +/-12VDC @ 0.04A
Usage method:

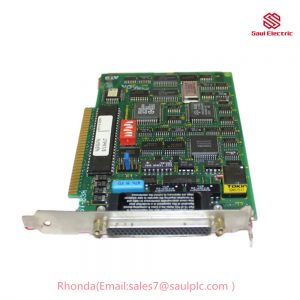

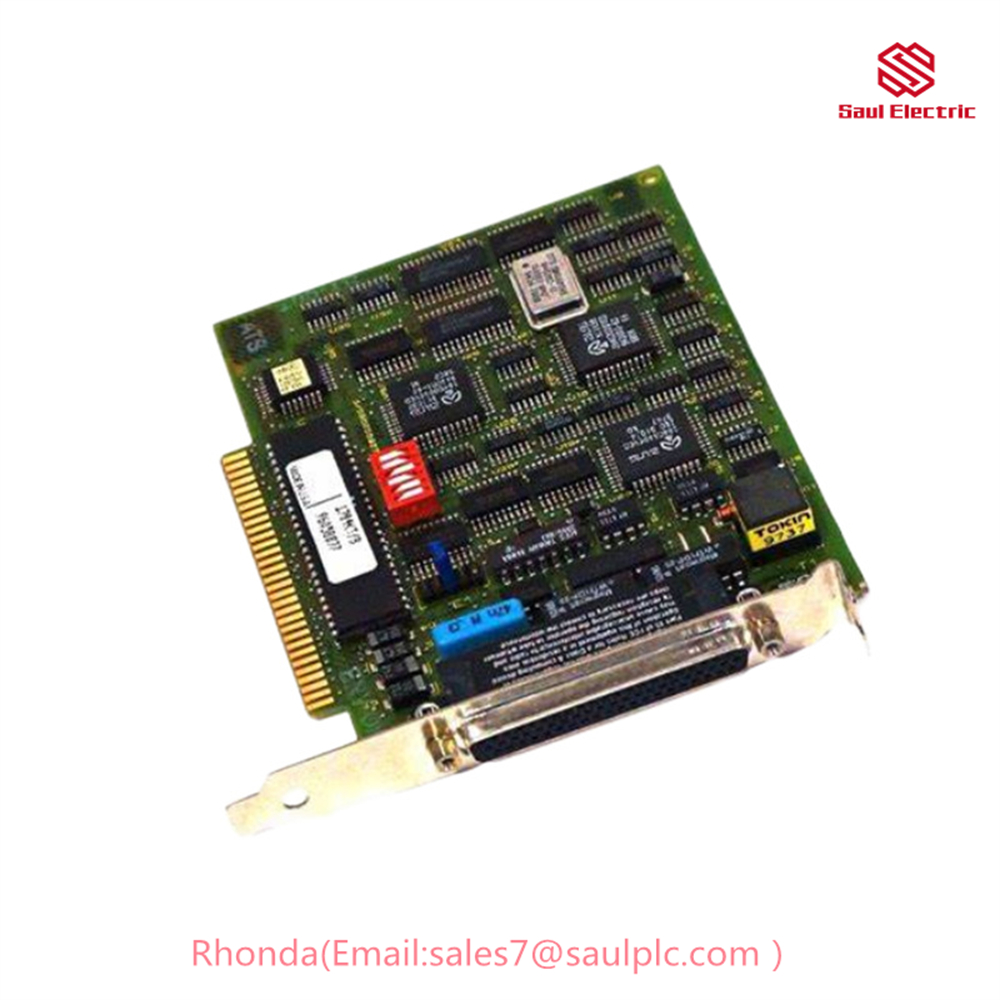

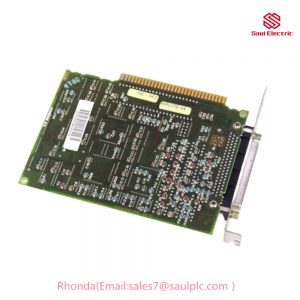

The 1784-KT is used to connect a PC to a DH+ network using a 62-pin D-shell cable. The card is installed in an ISA expansion slot on the PC and the cable is connected to the card’s output connector. The PC must be running a software program that supports communication over DH+.
Product application:
The 1784-KT is commonly used in industrial automation systems to allow a PC to communicate with PLCs. This allows the PC to monitor and control the PLCs, as well as to program them. The 1784-KT can also be used to connect a PC to a DH+ network for other purposes, such as data logging and monitoring.
Example:
A 1784-KT card could be used to connect a PC to a PLC that is controlling a manufacturing conveyor line. The PC could be used to monitor the status of the conveyor line, such as the speed of the belts and the position of the products on the line. The PC could also be used to control the conveyor line, such as starting and stopping it, and adjusting the speed of the belts.
Note: The 1784-KT is a discontinued product, but it is still widely used in legacy industrial automation systems.
