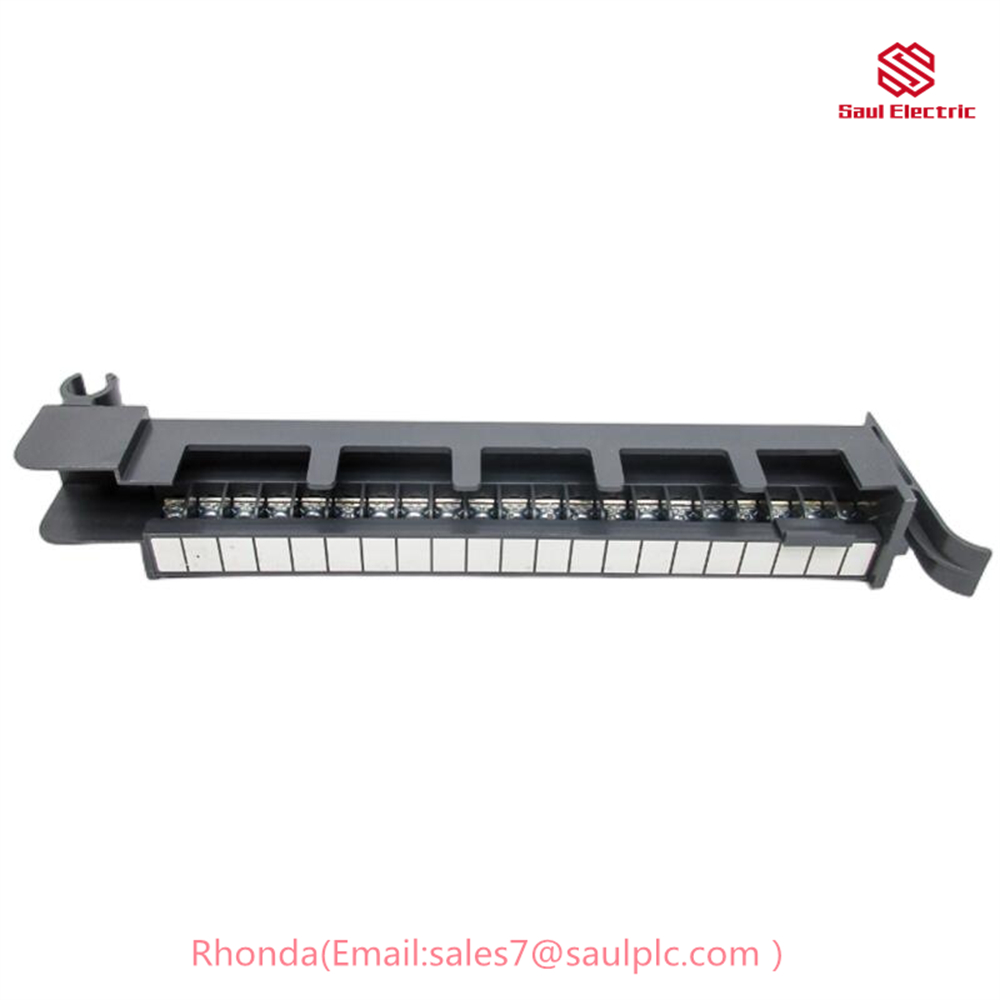

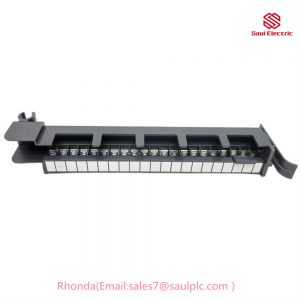

The Allen-Bradley 1771-WH is a field wiring arm that is used with the Allen-Bradley/Rockwell Automation 1771-OAD output module. It is a standard wiring arm that allows connections to be made to the module through the 21 terminals on the front of the arm. The arm pivots on the chassis to connect with the 8 terminals on the front of the module, and it can be removed from the chassis without disconnecting any wires.
The 1771-WH is made of durable thermoplastic material and has a conformal coating that protects it from corrosion and moisture. It is designed to withstand the harsh environments in which many industrial control systems operate.
Product parameters:
- Dimensions: 7.63 inches x 2.5 inches x 1.75 inches (194 mm x 64 mm x 44 mm)
- Weight: 0.5 pounds (0.23 kg)
- Material: Thermoplastic material
- Terminals: 21 screw terminals
- Wire size: 14 AWG to 22 AWG
Usage method:
- To connect the 1771-WH to the 1771-OAD output module, loosen the screws on the wiring arm and pivot the arm away from the module.
- Connect the wires to the terminals on the wiring arm, following the wiring instructions in the documentation for the 1771-OAD output module.
- Tighten the screws on the wiring arm to secure the wires.
- Pivot the wiring arm back into place and secure it to the module with the screws.
Product application:
The Allen-Bradley 1771-WH field wiring arm is used in a variety of industrial control applications, including:
- Manufacturing automation
- Process control
- Material handling
- Robotics
- Building automation
The 1771-WH is a versatile and reliable wiring arm that can be used in a wide range of industrial applications. It is easy to install and maintain, and it provides a secure connection between the 1771-OAD output module and the field wiring.
Here are some examples of specific applications where the Allen-Bradley 1771-WH field wiring arm is used:
- Controlling the operation of a conveyor system in a manufacturing plant
- Regulating the temperature of a process oven
- Operating the robotic arms in a welding cell
- Controlling the lighting and HVAC system in a commercial building
The Allen-Bradley 1771-WH field wiring arm is an essential component of many industrial control systems. It provides a reliable and secure way to connect the 1771-OAD output module to the field wiring.
