Product description

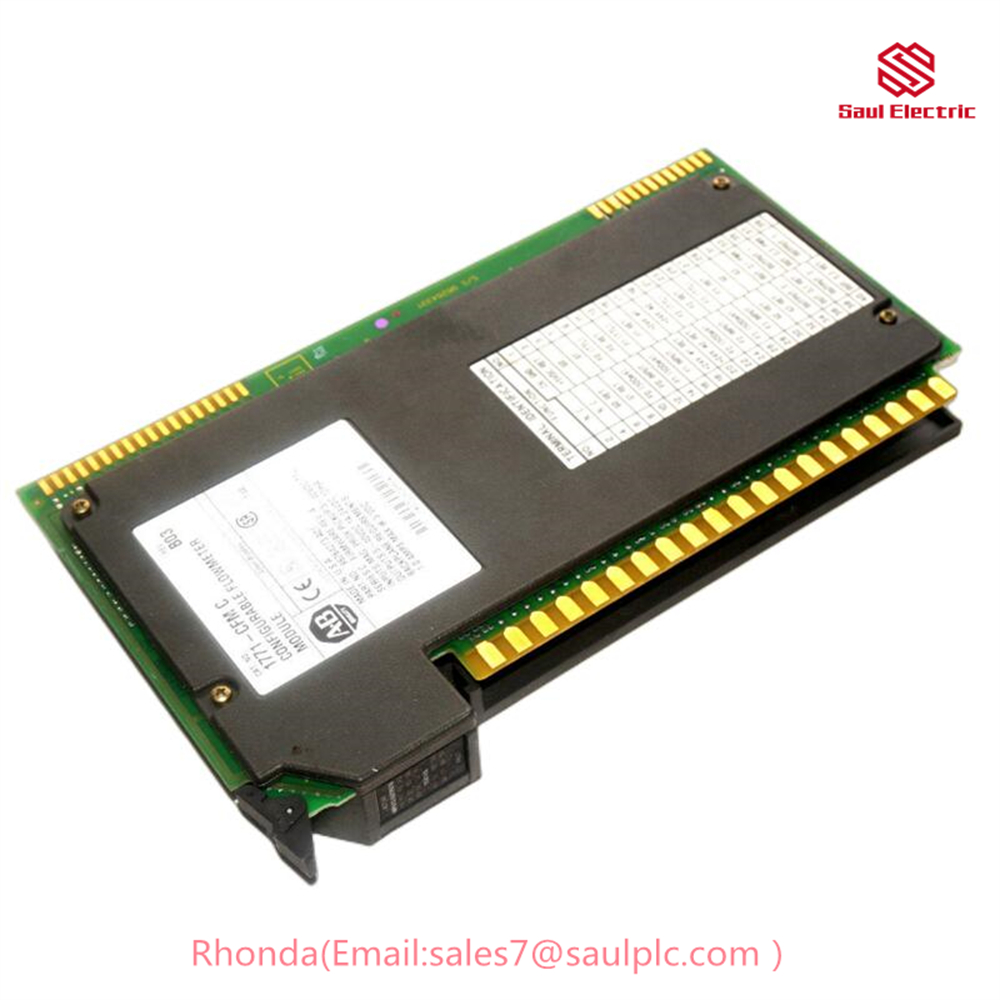

The 1771-CFM module can be configured to support a variety of flow meter types, including turbine flow meters, magnetic flow meters, and vortex flow meters. It has four digital inputs and four digital outputs. The digital inputs can be used to connect the flow meter sensor to the module, and the digital outputs can be used to control external devices such as valves and pumps.
Product parameters
- Input voltage: 50 mV to 200 VAC peak
- Output voltage: 5 to 40 VDC
- Input current: 10 mA maximum
- Output current: 100 mA maximum
- Operating temperature: 0 to 60 degrees Celsius
- Storage temperature: -40 to 85 degrees Celsius
Usage method
To use the 1771-CFM module, you must first configure it for the type of flow meter that you are using. This can be done using the PLC 5 software. Once the module is configured, you can connect the flow meter sensor and control devices to the module.
Product application
The 1771-CFM module can be used in a variety of applications, such as:
- Flow measurement in water and wastewater treatment plants
- Flow measurement in oil and gas production facilities
- Flow measurement in food and beverage processing plants
- Flow measurement in power plants and other industrial facilities
Examples
- The 1771-CFM module can be used to measure the flow of water in a water treatment plant. The flow meter sensor would be connected to the module, and the module would be programmed to send a signal to a valve to control the flow of water.
- The 1771-CFM module can be used to measure the flow of oil in an oil production facility. The flow meter sensor would be connected to the module, and the module would be programmed to send a signal to a pump to control the flow of oil.
- The 1771-CFM module can be used to measure the flow of milk in a dairy processing plant. The flow meter sensor would be connected to the module, and the module would be programmed to send a signal to a valve to control the flow of milk.
Discontinued
The Allen-Bradley 1771-CFM module was discontinued by Rockwell Automation in March 2019. However, it is still possible to find used modules from other sources.
