Product description:

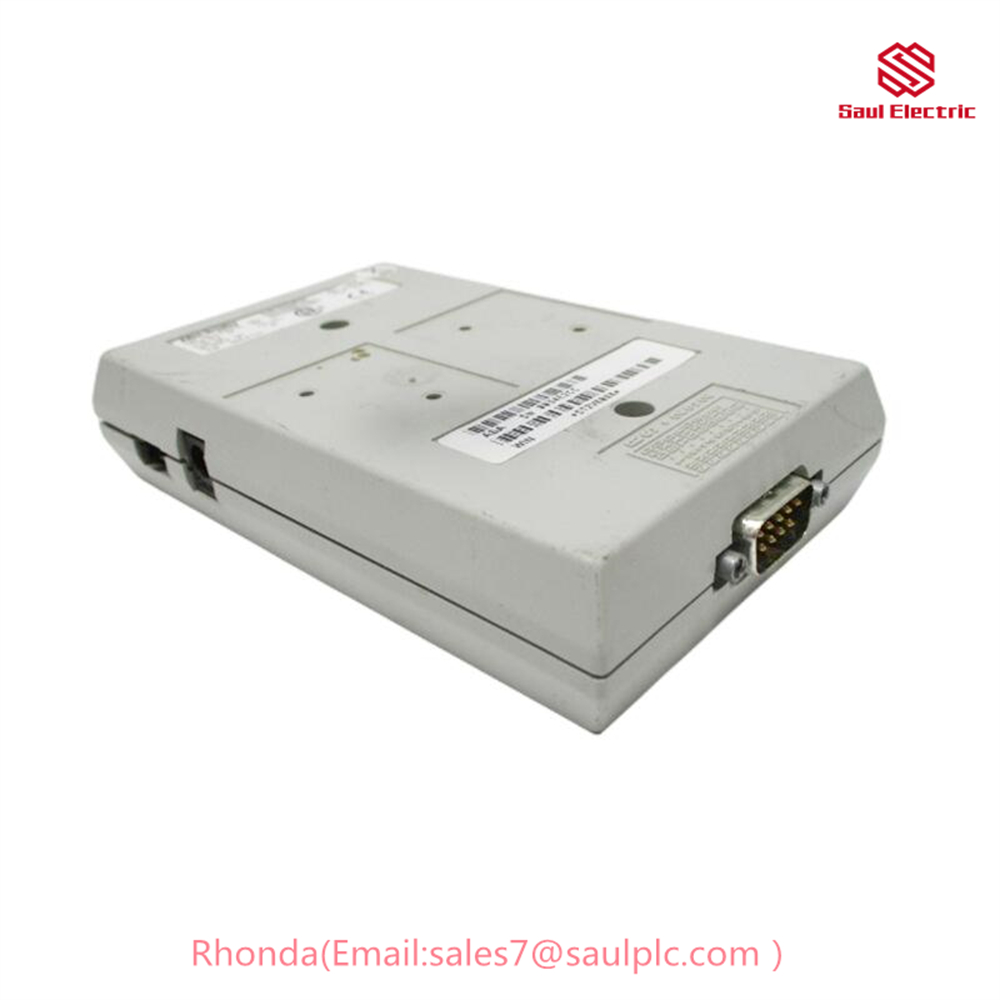

- DeviceNet RS-232 Interface Module
- Provides a communication interface between a host computer and a DeviceNet network
- Portable and easy to use
- Supports a wide range of RS-232 communication protocols
- Compatible with all DeviceNet devices
Product parameters:
- Power supply: 9.0 VDC @ 1 A
- Communication interface: RS-232C
- DeviceNet baud rate: 500 Kbps
- RS-232 baud rate: 1200 to 115,200 bps
- Dimensions: 3.9 in. x 2.3 in. x 1.5 in. (98.9 mm x 58.4 mm x 38.1 mm)
- Weight: 0.3 lbs. (0.14 kg)
Usage method:
To use the 1770-KFD module, connect the RS-232 cable from the module to the serial port of the host computer. Connect the DeviceNet cable from the module to the DeviceNet network. Once the connections are made, the module will automatically configure itself and begin communicating with the DeviceNet network.
Product application:
The 1770-KFD module is typically used in the following applications:
- Configuration and monitoring of DeviceNet networks
- Programming and troubleshooting of DeviceNet devices
- Data logging and monitoring of DeviceNet networks
- Remote access to DeviceNet networks
Example applications:
- A laptop computer with a 1770-KFD module can be used to configure and monitor a DeviceNet network of sensors and actuators in a manufacturing plant.
- A 1770-KFD module can be used to connect a notebook computer to a DeviceNet network of traffic lights to monitor and troubleshoot the system.
- A 1770-KFD module can be used to connect a data logger to a DeviceNet network of sensors to collect data on temperature, humidity, and other environmental conditions.
- A 1770-KFD module can be used to connect a remote access device to a DeviceNet network to allow engineers to monitor and troubleshoot the system from a remote location.
The 1770-KFD module is a versatile and powerful tool for communicating with DeviceNet networks. It is easy to use and supports a wide range of applications.
