Product Description

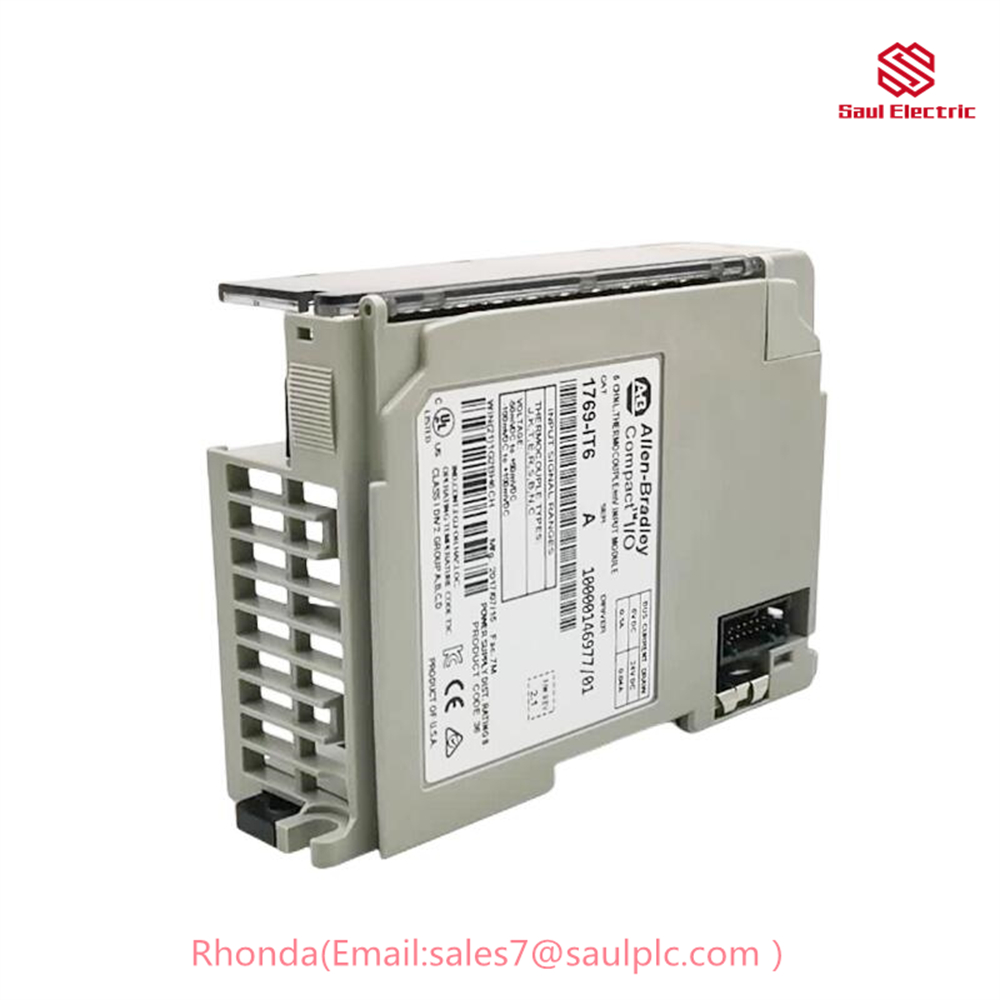

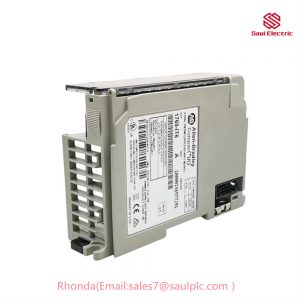

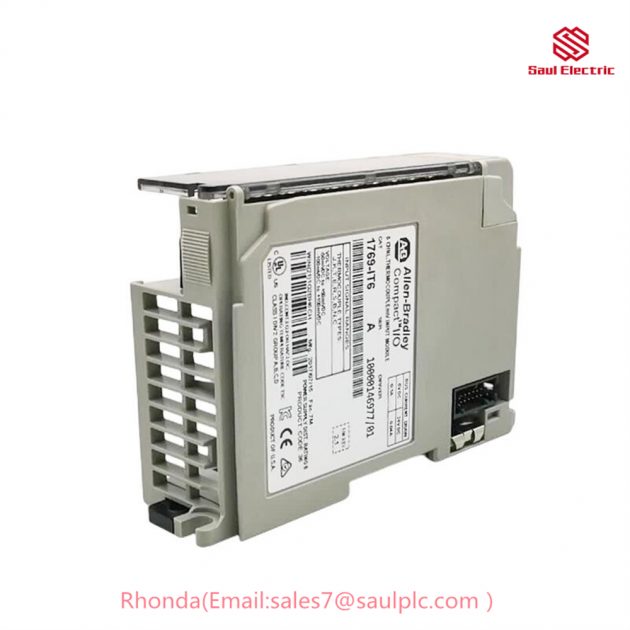

The Allen-Bradley 1769-IT6 A is a 6-channel thermocouple/mV input module for use with the CompactLogix 5370 and CompactLogix 5069 programmable logic controllers (PLCs). It provides high-accuracy temperature measurement of a variety of thermocouples and millivolt signals, including type J, K, T, E, R, S, B, N, C, and U. The module also provides a variety of features to simplify installation and wiring, including:
- Automatic thermocouple type detection
- Cold junction compensation
- Linearization
- Scaling
- Fault detection and diagnostics
Product Parameters
- Number of channels: 6
- Input type: Thermocouple or mV
- Thermocouple types supported: J, K, T, E, R, S, B, N, C, and U
- Input range: -200°C to 1750°C (-328°F to 3182°F) for thermocouples; -10 V to 10 V for mV
- Accuracy: ±0.1% of reading
- Resolution: 16 bits
- Update rate: 10 ms
Usage Method
The 1769-IT6 A module can be used to measure the temperature of a variety of devices, including:
- Furnaces
- Ovens
- Kilns
- Dryers
- Engines
- Compressors
- Turbines
- Generators
- Transformers
- Other industrial equipment
To use the module, simply connect the thermocouple or mV signal wires to the appropriate terminals on the module. The module will automatically detect the thermocouple type and configure itself accordingly. The module’s output data can then be read by the PLC and used to control the process or device.
Product Application
The 1769-IT6 A module is typically used in industrial applications where high-accuracy temperature measurement is required. Some common applications include:
- Food and beverage processing
- Pharmaceutical manufacturing
- Chemical processing
- Metalworking
- Power generation
- Oil and gas production
- Water and wastewater treatment
- HVAC systems
- Building automation
Example Applications
- Monitoring the temperature of a furnace in a food processing plant
- Controlling the temperature of a dryer in a pharmaceutical manufacturing plant
- Measuring the temperature of an engine in a power generation plant
- Monitoring the temperature of a transformer in an oil and gas production facility
- Controlling the temperature of an HVAC system in a building
Conclusion
The Allen-Bradley 1769-IT6 A is a versatile and reliable thermocouple/mV input module that can be used in a variety of industrial applications. It provides high-accuracy temperature measurement, easy installation and wiring, and a variety of features to simplify programming and operation.
