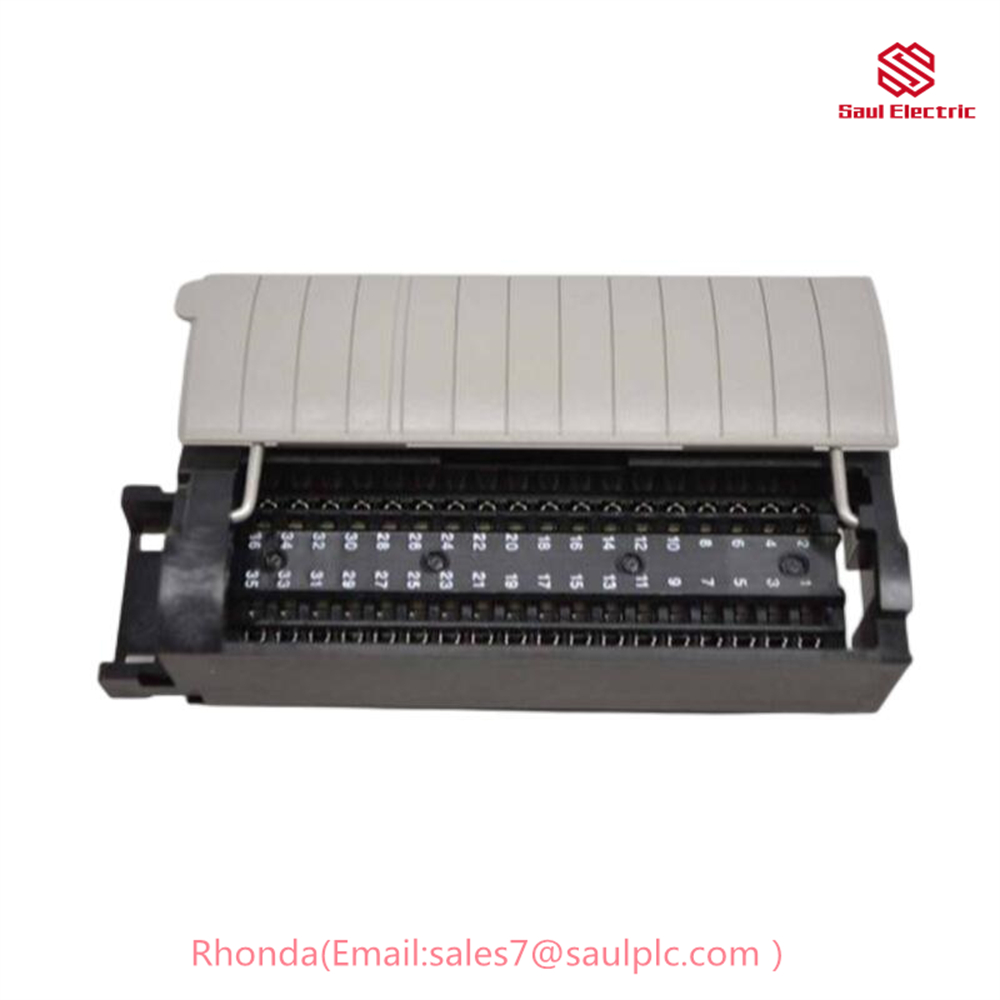

Product Information:Allen-Bradley 1756-TBS6H
Product Description
The Allen-Bradley 1756-TBS6H is a removable terminal block (RTB) module for ControlLogix programmable logic controllers (PLCs). It is a 36-pin spring-clamp type RTB with standard housing (wiring arm depth < 2.5 mm²).
Product Parameters
- Number of pins: 36
- Wire gauge: 36 to 18 AWG or 23 to 14 AWG
- Maximum voltage: 600 V
- Maximum current: 10 A per terminal
- Operating temperature range: -40 to 70 °C
Usage Methods
The 1756-TBS6H RTB module can be used to connect field wiring to the control module of a ControlLogix PLC. The spring-clamp terminals make it easy to connect and disconnect wires without the need for tools.
To use the 1756-TBS6H RTB module, follow these steps:
- Install the RTB module in the control module of the PLC.
- Connect the field wiring to the RTB module terminals.
- Tighten the spring-clamp terminals to secure the wires.
Product Advantages
The Allen-Bradley 1756-TBS6H RTB module has several advantages, including:
- Easy to install and use
- Spring-clamp terminals for fast and tool-free wiring
- Supports a wide range of wire gauges
- High voltage and current ratings
- Wide operating temperature range
Applications
The Allen-Bradley 1756-TBS6H RTB module is commonly used in a variety of industrial applications, including:
- Manufacturing
- Food and beverage processing
- Oil and gas
- Power generation
- Water and wastewater treatment
Conclusion
The Allen-Bradley 1756-TBS6H is a versatile and reliable RTB module for ControlLogix PLCs. It is easy to use and supports a wide range of applications.
