Product Information:Allen-Bradley 1756-TBNH
Product Description

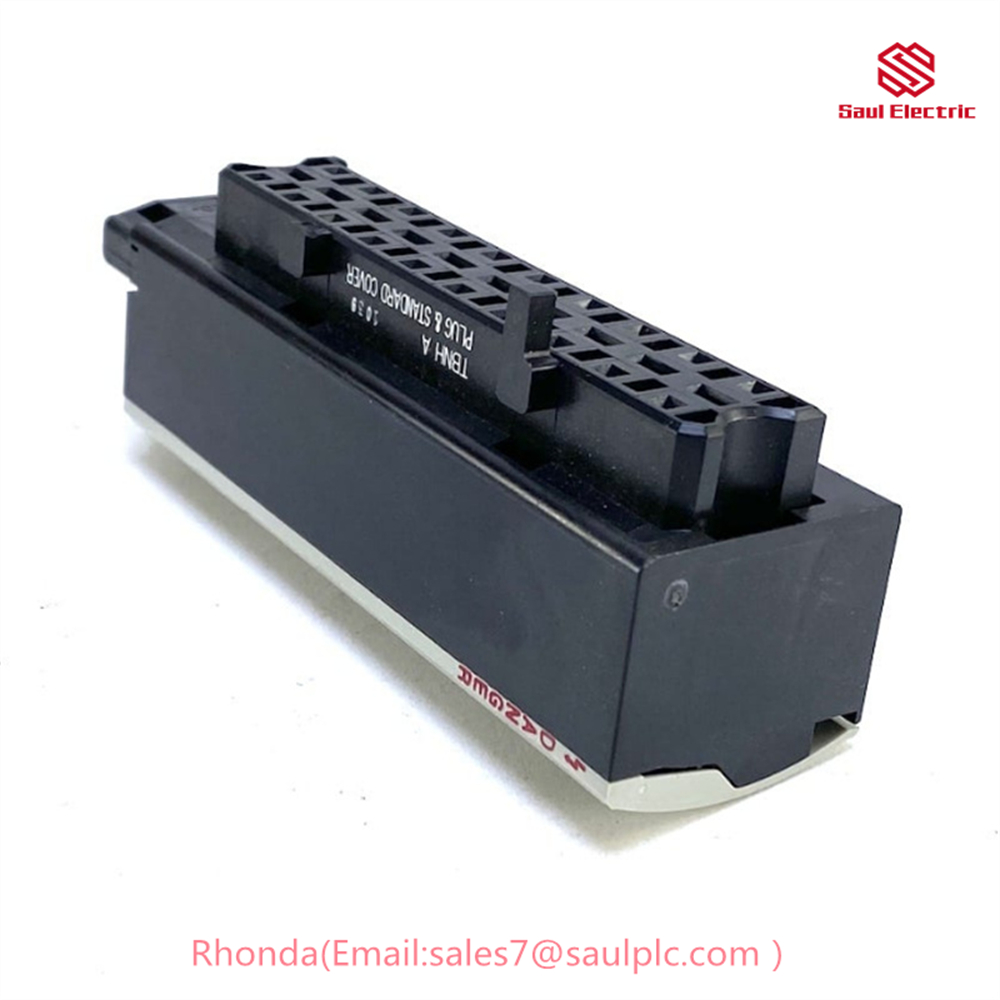

The Allen-Bradley 1756-TBNH is a removable 20-position terminal block with NEMA screw clamp connections. It is designed for use with ControlLogix Programmable Controllers (PLCs) and other compatible devices. The 1756-TBNH provides a convenient and reliable way to connect field wiring to your PLC.
Product Parameters
- Number of Positions: 20
- Connection Type: NEMA Screw Clamp
- Wire Size: 22-14 AWG
- Voltage Rating: 600 V
- Current Rating: 15 A
- Operating Temperature: -40 to 70 °C
- Dimensions: 1.5 x 2.8 x 3.4 inches (38.1 x 71.1 x 86.4 mm)
- Weight: 0.25 lbs (0.11 kg)
Usage Methods
To use the 1756-TBNH, simply remove it from its carrier and connect your field wiring to the screw clamp terminals. Once the wiring is complete, insert the terminal block back into its carrier and secure it in place.
Product Advantages
The 1756-TBNH offers a number of advantages, including:
- Removable: The terminal block can be easily removed from its carrier for wiring and maintenance.
- NEMA Screw Clamp Connections: The screw clamp connections are secure and reliable, even in high-vibration environments.
- Wide Wire Size Range: The terminal block can accommodate a wide range of wire sizes, from 22 to 14 AWG.
- High Voltage and Current Ratings: The terminal block is rated for 600 V and 15 A, making it suitable for a variety of industrial applications.
- Wide Operating Temperature Range: The terminal block can operate in a wide range of temperatures, from -40 to 70 °C.
Overall, the Allen-Bradley 1756-TBNH is a high-quality and versatile terminal block that is ideal for use with ControlLogix PLCs and other compatible devices.
