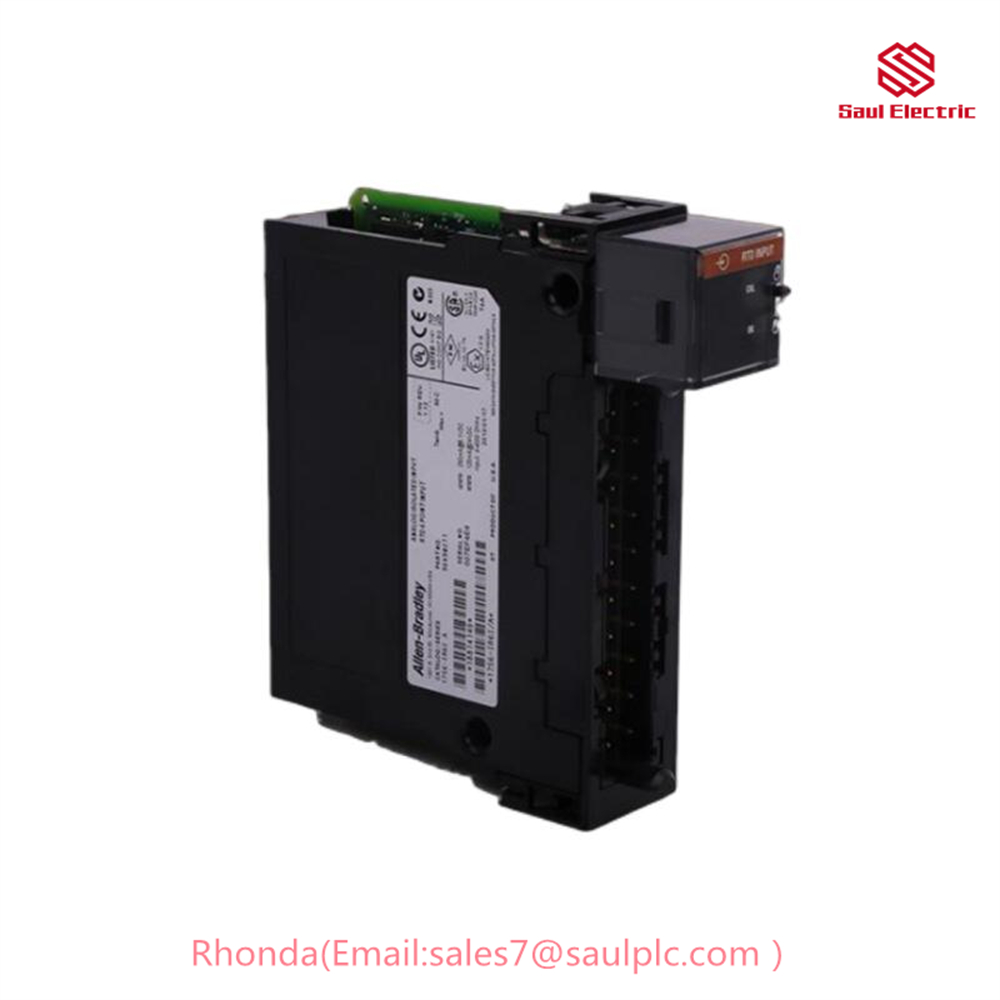

Product Information:Allen-Bradley 1756-IR6I
Product Description
The Allen-Bradley 1756-IR6I is a ControlLogix analog input module that is used to receive signals from Resistance Temperature Detectors (RTDs). RTDs are temperature sensors that measure temperature by measuring the change in electrical resistance of a metal element as its temperature changes.
The 1756-IR6I module has 6 isolated input channels, each of which can be configured to accept a different type of RTD sensor. The module can also be configured to provide linearization and compensation for temperature errors.
The 1756-IR6I module is a versatile and easy-to-use module that is ideal for a variety of applications, including:
- Temperature monitoring and control
- Process control
- Machine automation
- Building automation
Product Parameters
- Number of channels: 6
- Input type: RTD
- Input range: -200 to 800 degrees Celsius
- Accuracy: ±0.1% of full scale
- Resolution: 16 bits
- Isolation: Yes
- Linearization and compensation: Yes
- Form factor: 1756 ControlLogix module
Usage Methods
The 1756-IR6I module is used to connect RTD temperature sensors to a ControlLogix controller. The module is installed in a ControlLogix chassis and the RTD sensors are wired to the module’s input terminals.
Once the module is installed and wired, it must be configured using the ControlLogix controller’s programming software. The configuration process involves specifying the type of RTD sensor that is connected to each channel and the desired linearization and compensation settings.
Once the module is configured, it can be used to monitor and control temperature in a variety of applications. For example, the module can be used to monitor the temperature of a manufacturing process and to control the heaters and coolers that are used to maintain the desired temperature.
Product Advantages
The Allen-Bradley 1756-IR6I module offers a number of advantages, including:
- Versatility: The module can be used to connect a variety of different types of RTD sensors.
- Accuracy: The module provides accurate and reliable temperature measurements.
- Ease of use: The module is easy to install and configure.
- Durability: The module is designed to withstand the harsh conditions of industrial environments.
Additional Information
The Allen-Bradley 1756-IR6I module is a discontinued product. However, it is still widely used in existing applications. If you are considering using this module in a new application, you should consult with a Rockwell Automation representative to ensure that it is the right product for your needs.
