Product Description

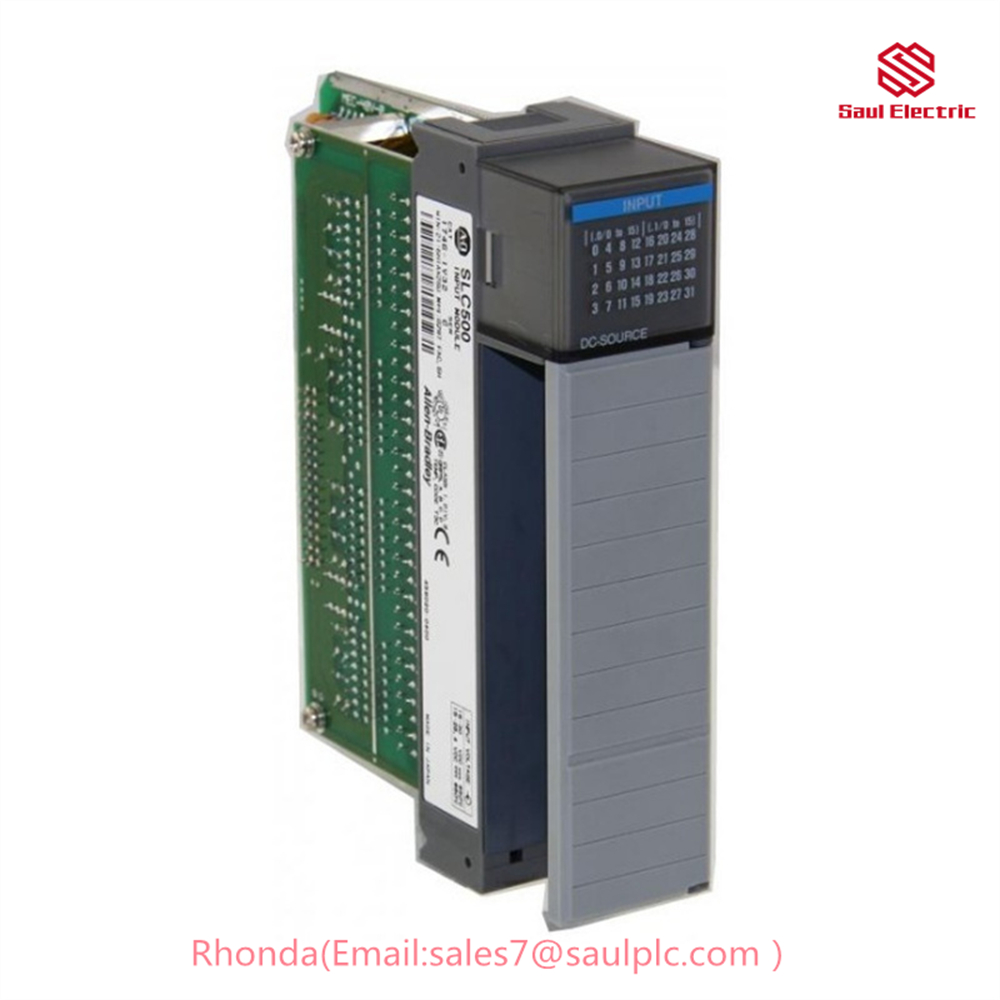

The Allen-Bradley 1746-IV32 is a 32-channel, sourcing input module for the SLC 500 programmable logic controller (PLC). It is designed to receive and store digitally converted analog data into its image table for retrieval by all fixed and modular SLC 500 processors.
Product Parameters
- Input voltage: 24V DC
- Number of channels: 32
- Input type: Sourcing
- Input range: 0-10V, 0-20V, or 4-20mA
- Resolution: 12 bits
- Accuracy: ±0.1% of full scale
- Input impedance: 100kΩ
- Response time: 1ms
- Operating temperature: -20 to 70°C (-4 to 158°F)
- Dimensions: 140 x 100 x 30 mm (5.51 x 3.94 x 1.18 in)
Usage Methods
The 1746-IV32 is installed in an SLC 500 I/O rack and is connected to the analog input signals using a shielded cable. The input signals are converted to digital values by the module and stored in its image table. The PLC processor can then access the digital values from the image table.
Product Advantages
- High accuracy and resolution
- Fast response time
- Wide operating temperature range
- Easy to install and use
Common Applications
The 1746-IV32 is commonly used in industrial applications to monitor and control analog signals, such as temperature, pressure, and flow. It is also used in building automation systems to monitor and control HVAC systems, lighting, and other equipment.
Here are some examples of specific applications where the 1746-IV32 can be used:
- Monitoring and controlling the temperature of a furnace
- Measuring and controlling the flow of liquid in a pipeline
- Monitoring and controlling the pressure in a hydraulic system
- Monitoring and controlling the level of liquid in a tank
- Monitoring and controlling the speed of a motor
- Monitoring and controlling the position of a servo actuator
The 1746-IV32 is a reliable and versatile input module that can be used in a wide range of industrial and building automation applications.
