Product Description

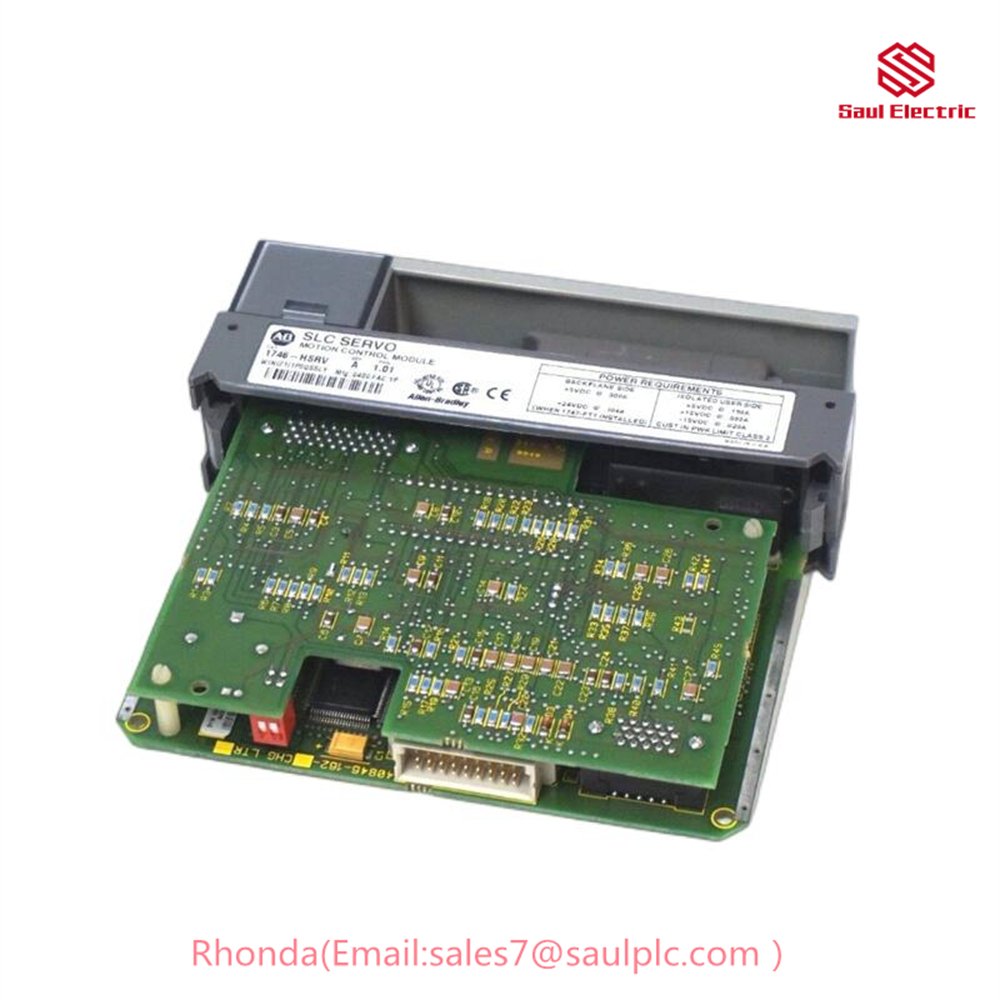

The Allen-Bradley 1746-HSRV is a Servo Control Module for SLC 500 systems. It is a single-axis and closed loop controller that is compatible with a variety of SLC 500 processors. The 1746-HSRV features block execution that works independently of scan time, providing fast and accurate servo control.
Product Parameters
- Power supply voltage: 24 VDC
- Input voltage: 17-31.5 VDC
- Output voltage: 17-31.5 VDC
- Input current: 20 mA
- Output current: 20 mA
- Operating temperature: -20 to 65 degrees Celsius
- Storage temperature: -40 to 85 degrees Celsius
- Dimensions: 88.9 mm x 105.7 mm x 77.5 mm (3.5 in x 4.16 in x 3.05 in)
Usage Methods
The 1746-HSRV is used to control servo motors in a variety of applications, including:
- Industrial automation
- Robotics
- Packaging
- Material handling
- Machine tools
Product Advantages
The 1746-HSRV offers a number of advantages, including:
- High performance: The 1746-HSRV provides fast and accurate servo control, even under demanding conditions.
- Versatility: The 1746-HSRV is compatible with a variety of SLC 500 processors and can be used to control a wide range of servo motors.
- Ease of use: The 1746-HSRV is easy to configure and use, even for users with limited experience with servo control.
How to Use the Allen-Bradley 1746-HSRV
To use the 1746-HSRV, you will need to connect it to the following:
- A SLC 500 processor
- A servo motor
- A servo encoder
- A power supply
Once the module is connected, you will need to configure it using the RSLogix 500 programming software. The software allows you to define the servo motor parameters, set up the servo control loops, and create the servo control programs.
Once the module is configured, you can start using it to control the servo motor. The module will provide an analog velocity command to the servo motor based on the servo control program. The servo motor will then use this command to control its speed and position.
Applications of the Allen-Bradley 1746-HSRV
The 1746-HSRV can be used in a variety of applications, including:
- Industrial automation: The 1746-HSRV can be used to control servo motors in a variety of industrial automation applications, such as assembly lines, packaging machines, and material handling systems.
- Robotics: The 1746-HSRV can be used to control servo motors in robots, providing the robots with the precision and speed they need to perform their tasks.
- Packaging: The 1746-HSRV can be used to control servo motors in packaging machines, ensuring that products are packaged accurately and efficiently.
- Material handling: The 1746-HSRV can be used to control servo motors in material handling systems, such as conveyors and sorters.
- Machine tools: The 1746-HSRV can be used to control servo motors in machine tools, such as CNC mills and lathes.
Conclusion
The Allen-Bradley 1746-HSRV is a versatile and powerful servo control module that can be used in a variety of applications. It offers fast and accurate servo control, ease of use, and compatibility with a wide range of SLC 500 processors and servo motors.
