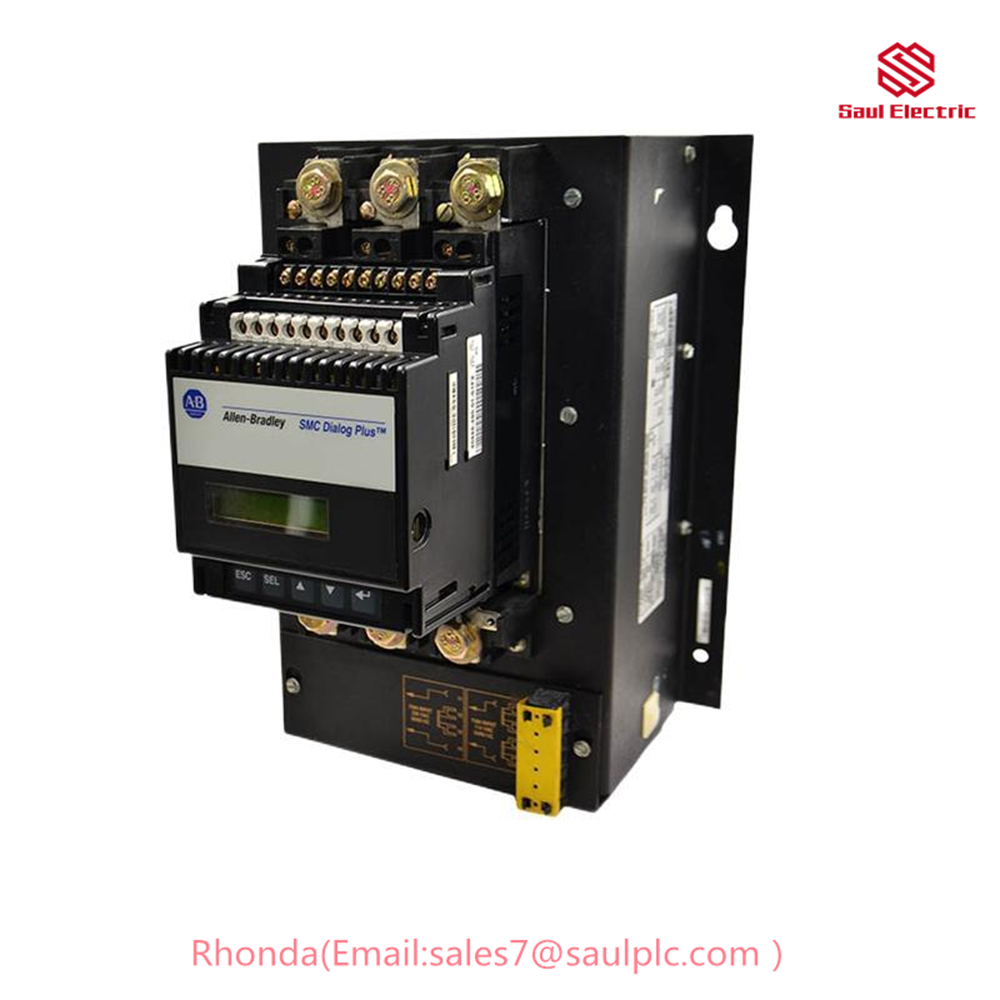

Product Information:A-B 150-B97NBDB Solid-State Controller
The 150-B97NBDB controller is an Allen-Bradley solid-state controller. It belongs to the Bulletin 150 SMC Dialog Plus family of motor controllers which support a 200 to 600 Volts AC input voltage range and offer 1 to 1000 Amps of current at the output.
Brand:Allen-Bradley / Rockwell Automation
Series:SMC Dialog Plus
Part Number:150-B97NBDB
Product type:Motor controller
Current rating:97 Amps
Voltage rating:200 to 460 Volts AC
Power output:5 to 75 Horsepower
Peak heat dissipation:285 Watts
Enclosure:Open
Operating temperature:0 to 50 degrees Celsius
Dimensions:30.48cm x24.81cm x 25.6cm
The Allen-Bradley 150-B97NBDB solid-state controller belongs to the Bulletin 150 SMC Dialog Plus series of motor controllers that support a voltage range of 200 to 600 Volts AC and that offer 1 to 1000 Amps of current at the output. The SMC Dialog Plus controllers are certified by the CSA, CE, and CCC standards and they also comply with the UL 508, EN/IEC 60947-1, and CSA C22.2 standards. The 150-B97NBDB controller is a 97 Amps rated motor controller with an open enclosure. The pump control is an optional motor control feature which is available as a standard feature on the 150-B97NBDB controller. Several other motor control options can be ordered from Allen-Bradley, including the preset slow speed and the accu stop. A total of six motor control modes are available on all SMC Dialog Plus controllers, including the current limit, dual ramp start, and energy saver modes.
The output power range for the 150-B97NBDB controller is 5 to 500 Horsepower at 460 Volts AC. The controller can operate over a range of input voltages from 200 Volts AC to 460 Volts AC. Only three-phase input at 50 to 60 Hertz line frequency is supported. The control voltage range is 100 to 240 Volts AC. A 350 Amps rated fuse can be used with the controller for the purpose of providing short circuit protection. The maximum heat dissipation rating is 285 Watts. The approximate shipping weight of the 150-B97NBDB controller is 23 pounds and the dimensions of the controller are 12 x 9.77 x 10.09 inches. The working temperature range for the controller is from 0 to 50 degrees Celsius.
