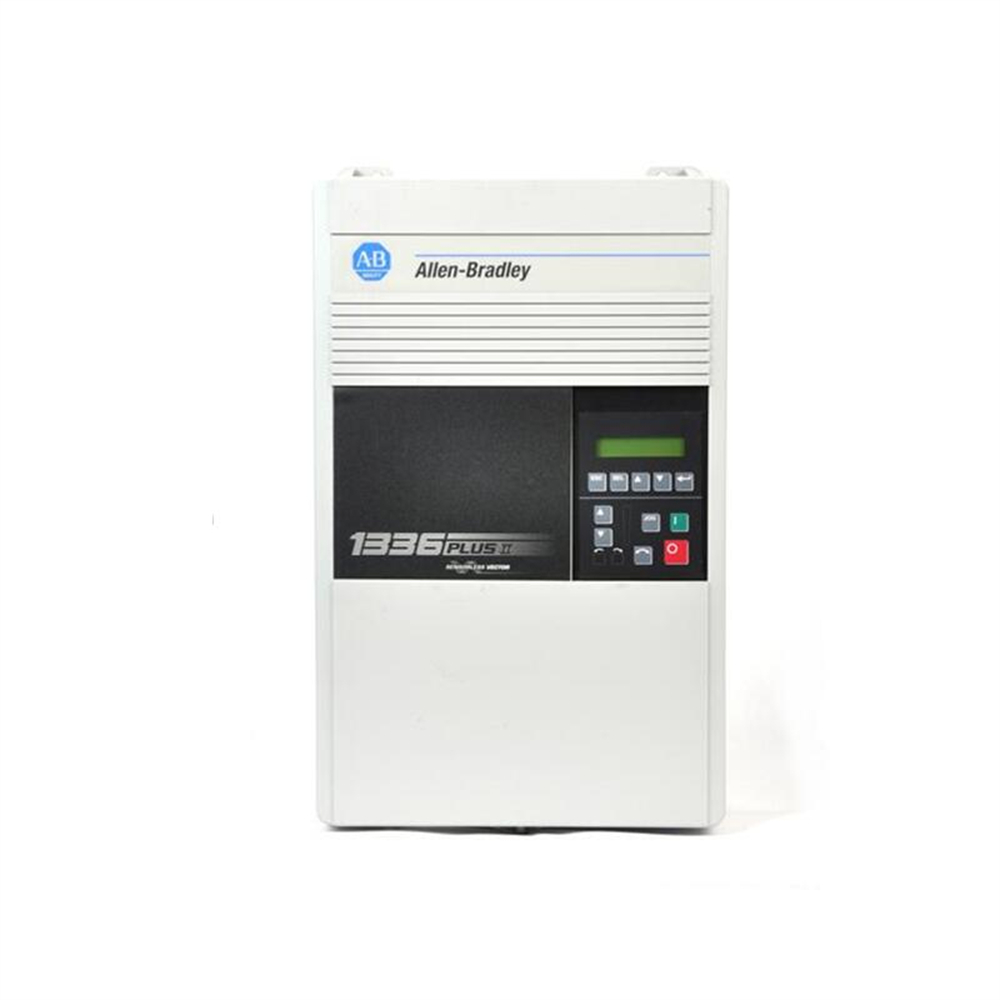

The Allen-Bradley 1336F-B020-AE-EN is a discontinued adjustable frequency drive (VFD) from the 1336 PLUS II series. It is a microprocessor-controlled and digitally configurable drive that is designed to provide precise speed control of AC induction motors. The drive can be used in a variety of applications, including pumps, fans, conveyors, and other industrial machinery.
Here are some of the key features of the Allen-Bradley 1336F-B020-AE-EN:
- 15 kW (20 HP) output at 460 V AC
- 24 amps current rating
- IP20/NEMA 1 enclosure
- Frame size C
- 115 V AC control interface
- Pulse-width modulation (PWM) control
- VFD logic (VFDL) functionality
- Programmable logic controller (PLC) compatibility
- Advanced thermal dissipation technology
Here is a table of the specifications for the Allen-Bradley 1336F-B020-AE-EN:
| Specification | Value |
|---|---|
| Voltage | 380-480 V AC |
| Frequency | 50/60 Hz |
| Output power | 15 kW (20 HP) |
| Current rating | 24 amps |
| Enclosure | IP20/NEMA 1 |
| Frame size | C |
| Control interface | 115 V AC |
| Control mode | PWM |
| VFDL functionality | Yes |
| PLC compatibility | Yes |
