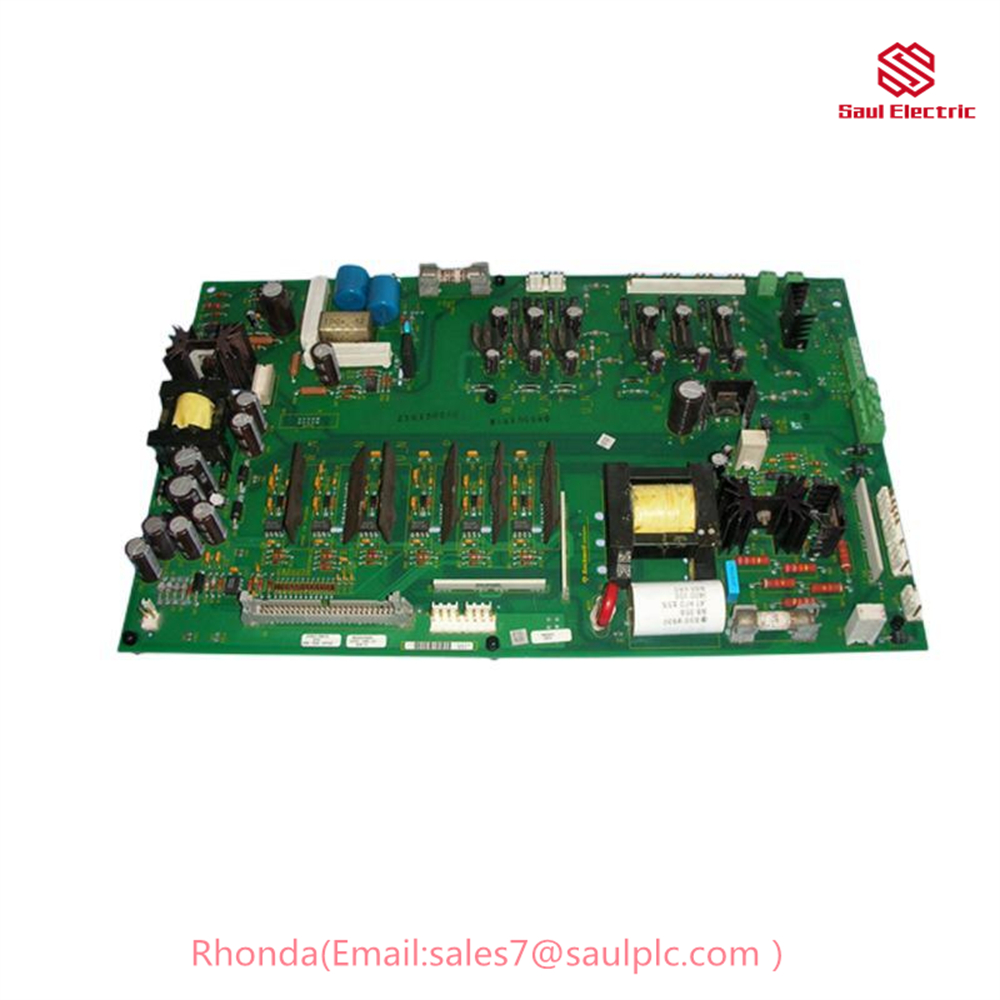

The Allen-Bradley 1336-BDB-SP72D is a gate drive PC board for use with 1336STEF frame F adjustable frequency AC drives. It has a voltage rating of 460V AC and a horsepower rating of 250 HP.
Product description
The 1336-BDB-SP72D is a high-performance gate drive board that provides isolated gate signals to the drive’s power modules. It features a number of advanced features, including:
- Isolated gate signals to protect the drive from gate voltage spikes
- Built-in gate protection circuits to protect the IGBTs from over-voltage and over-current conditions
- On-board diagnostics to monitor the health of the gate drive board
- A user-friendly interface for easy setup and configuration
Product parameters
- Voltage rating: 460V AC
- Horsepower rating: 250 HP
- Isolation voltage: 2500V RMS
- Gate drive current: 2A peak
- Operating temperature range: -40°C to 85°C
Usage methods
The 1336-BDB-SP72D is easy to install and use. It simply plugs into the 1336STEF drive and is automatically configured. The user interface allows the user to set the gate drive parameters and monitor the health of the board.
Product advantages
The 1336-BDB-SP72D offers a number of advantages over other gate drive boards, including:
- High performance: The 1336-BDB-SP72D provides fast and accurate gate signals to the drive’s power modules, resulting in smooth and efficient motor control.
- Reliability: The 1336-BDB-SP72D is designed to withstand the harsh environments of industrial applications.
- Ease of use: The 1336-BDB-SP72D is easy to install and use, and the user interface is intuitive and easy to navigate.
Applications
The 1336-BDB-SP72D is used in a wide variety of industrial applications, including:
- Conveyor systems
- Pumps and fans
- Machine tools
- Material handling systems
- Food and beverage processing
- Oil and gas production
Overall, the Allen-Bradley 1336-BDB-SP72D is a high-performance, reliable, and easy-to-use gate drive board that is ideal for a wide variety of industrial applications.
