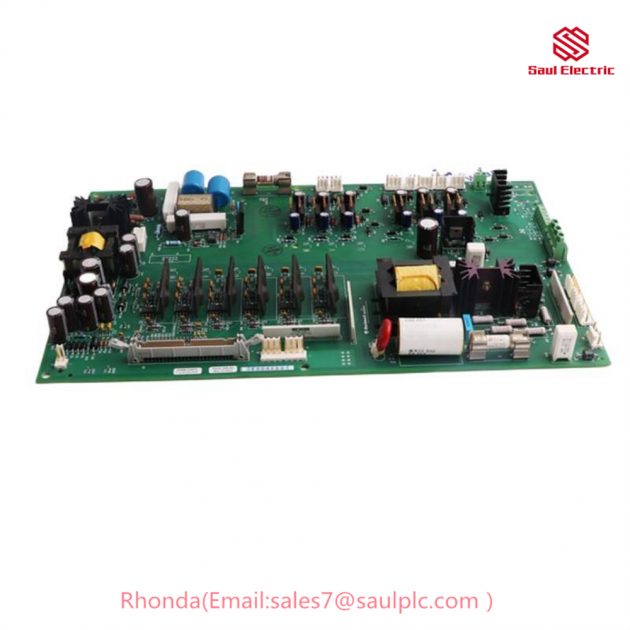

The Allen-Bradley 1336-BDB-SP63D is a gate drive board that is compatible with the 1336 series of adjustable frequency AC drives. It is designed and manufactured by Allen-Bradley, a Rockwell Automation brand.
Product description
Gate driver boards are used to receive a low-power input and convert it into a high-current input, which is then delivered to several parts of the drive. They are essentially level shifters combined with amplifiers.
The 1336-BDB-SP63D gate drive board is used to control the power transistors in the 1336 series AC drives. It is responsible for turning the transistors on and off at the correct times, in order to generate the desired output voltage and frequency.
Product parameters
The 1336-BDB-SP63D gate drive board has the following parameters:
- Input voltage: 120 VAC or 240 VAC
- Output voltage: 460 VAC
- Output current: 1 A
- Operating temperature range: 0 °C to 55 °C
Usage methods
The 1336-BDB-SP63D gate drive board is installed in the 1336 series AC drive. It is connected to the power transistors, the drive control board, and the drive power supply.
Once the gate drive board is installed and connected, it is configured using the drive control board. The drive control board sets the parameters for the gate drive board, such as the output voltage and frequency.
Once the gate drive board is configured, it is ready to operate. The drive control board will send signals to the gate drive board, which will turn the power transistors on and off at the correct times to generate the desired output voltage and frequency.
Product advantages
The Allen-Bradley 1336-BDB-SP63D gate drive board has the following advantages:
- It is designed and manufactured by Allen-Bradley, a trusted brand in industrial automation.
- It is compatible with the 1336 series of AC drives, which are widely used in a variety of industries.
- It is easy to install and configure.
- It is reliable and durable.
The 1336-BDB-SP63D gate drive board is an important component of the 1336 series AC drives. It is responsible for controlling the power transistors, which generate the desired output voltage and frequency. The gate drive board is reliable and durable, and it is easy to install and configure.
