Allen-Bradley 1336-BDB-SP56C AC Gate Drive Board Competitive prices

Advantageous brands:

ABB Robots, FANUC Robots, YASKAWA Robots, KUKA Robots, Mitsubishi Robots, OTC Robots, Panasonic Robots, MOTOMAN Robots and so on!

If you need, we can solve your missing part or exchange, welcome to call us for inquiry! We will give you the best service!

Product Description

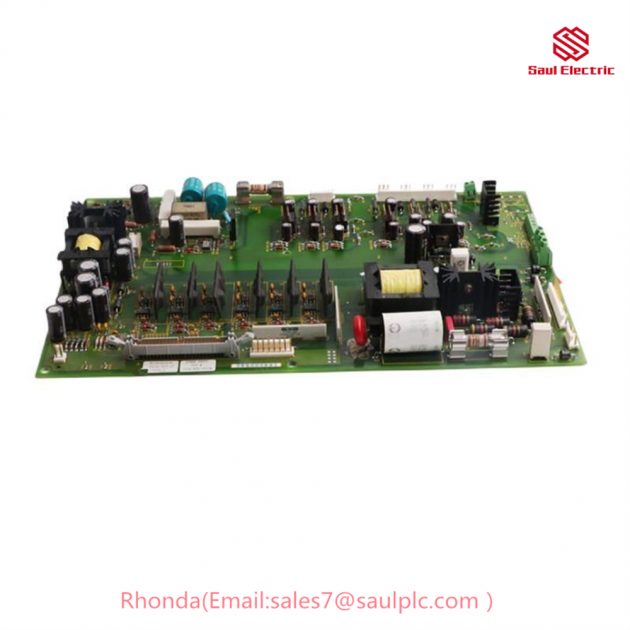

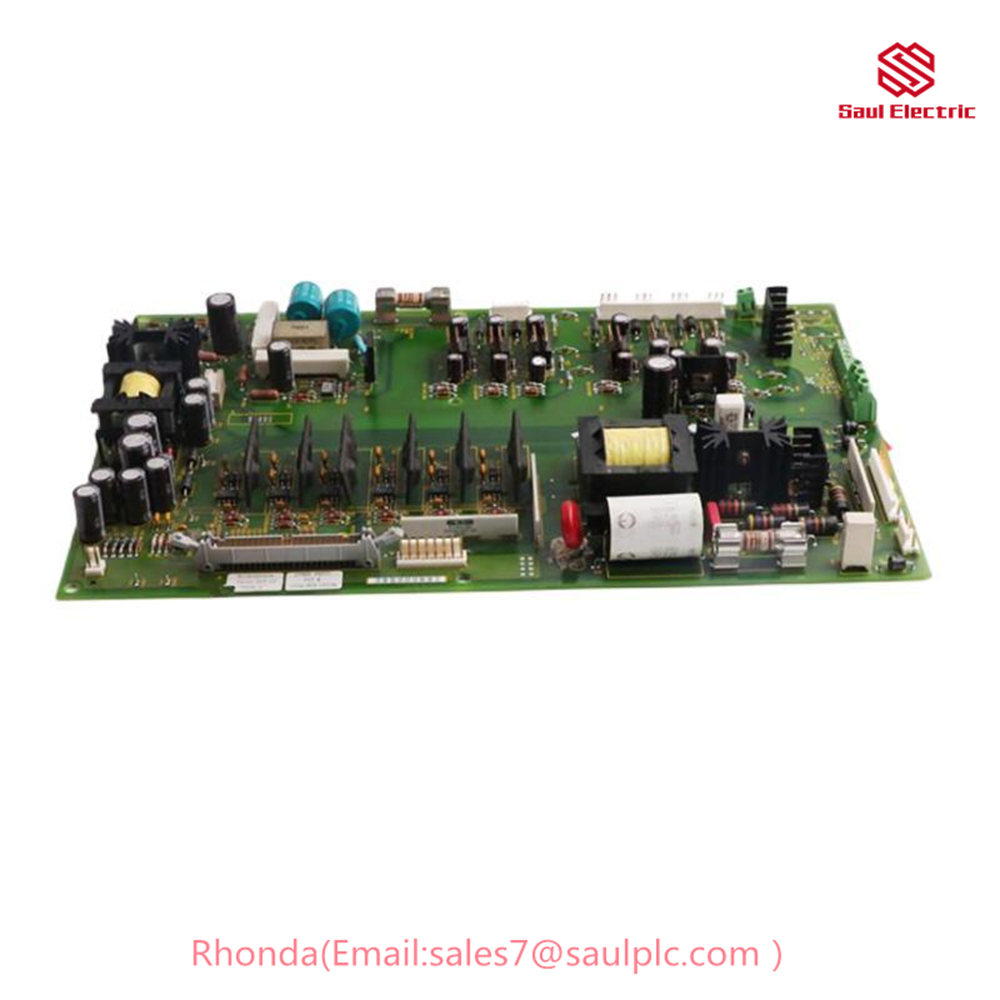

The Allen-Bradley 1336-BDB-SP56C board is an AC gate drive board that is compatible with the 1336-STEFR bulletin of 3-phases adjustable frequency AC drives (in the Plus, Force, Impact, Plus II, and Regen series). It is responsible for driving the IGBTs in the motor control circuit.

Product Parameters

Input Voltage: 12-24VDC
Output Voltage: 150-600VDC
Output Current: 10A
Operating Temperature Range: -40 to 70°C

Usage Methods

The 1336-BDB-SP56C board is typically mounted inside the 1336 AC drive enclosure. It is connected to the motor control circuit and the drive power supply. The board is also connected to the drive’s main controller board, which provides the gate drive signals.

To use the 1336-BDB-SP56C board, the following steps must be followed:

Connect the board to the motor control circuit.
Connect the board to the drive power supply.
Connect the board to the drive’s main controller board.
Configure the drive parameters to match the board’s specifications.
Apply power to the drive.

Product Advantages

The 1336-BDB-SP56C board has the following advantages:

It is a high-quality product from a reputable manufacturer.
It is easy to install and configure.
It is reliable and durable.
It is backed by a warranty from the manufacturer.

Applications

The 1336-BDB-SP56C board is used in a variety of applications, including:

Industrial automation
HVAC
Robotics
Material handling
Power generation

Conclusion

The Allen-Bradley 1336-BDB-SP56C board is a high-quality AC gate drive board that is compatible with a wide range of Allen-Bradley AC drives. It is easy to install and configure, and it is backed by a warranty from the manufacturer.
