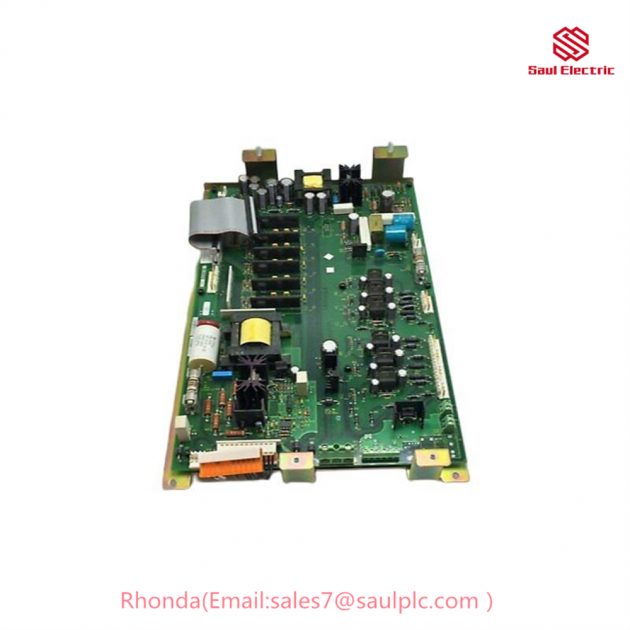

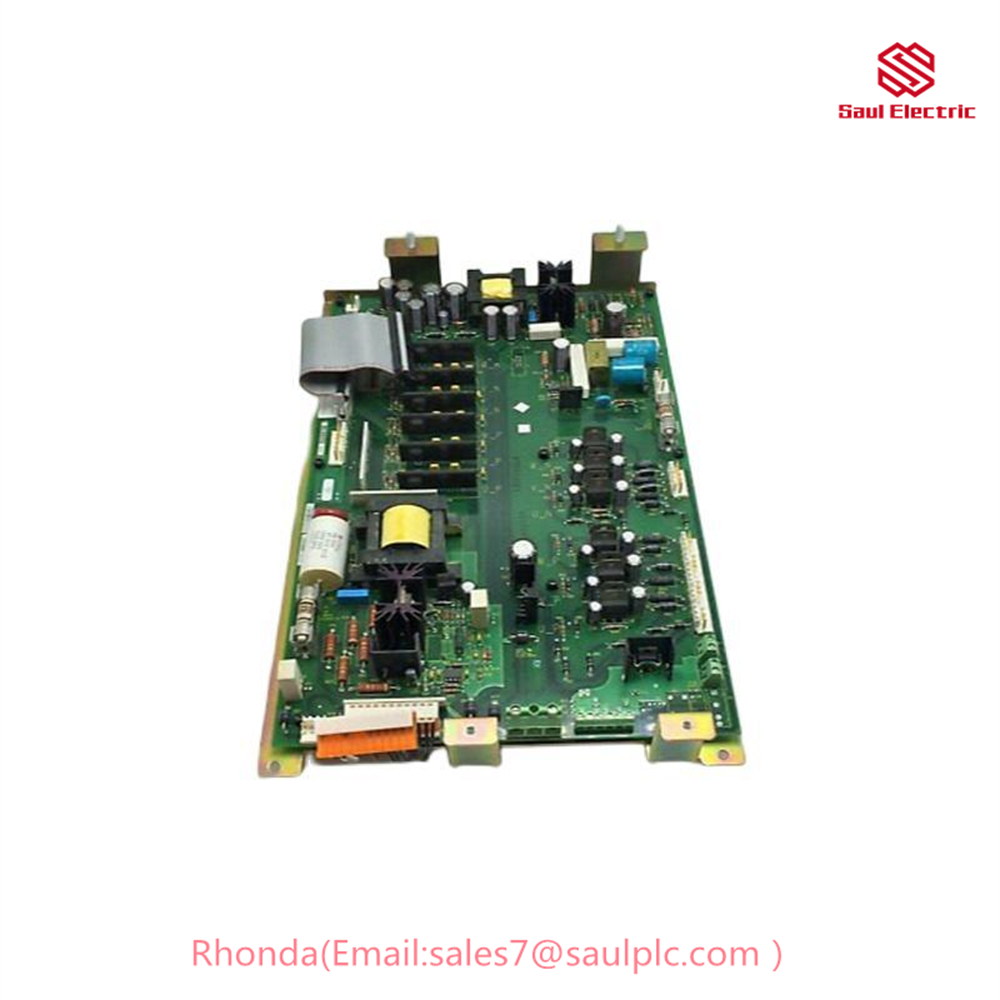

Product Information:A-B 1336-BDB-SP53C Gate Driver Board

Product description

The Allen-Bradley 1336-BDB-SP53C is a Gate Drive PCB (Printed Circuit Board) manufactured by Allen-Bradley/Rockwell Automation. It is a spare part for the 1336 series of AC drives.

Product parameters

Input voltage: 460 VAC
Horsepower rating: 450 HP
Output voltage: 3-phase AC variable voltage variable frequency (VVVF)

Usage methods

The 1336-BDB-SP53C Gate Drive PCB is used to control the flow of power to the motor in an AC drive. It is installed inside the drive and is responsible for turning the motor on and off, as well as controlling the speed of the motor.

Product advantages

The 1336-BDB-SP53C Gate Drive PCB is a high-quality product that is designed to last.
It is easy to install and maintain.
It is backed by a warranty from Allen-Bradley/Rockwell Automation.

Here are some additional advantages of the Allen-Bradley 1336-BDB-SP53C Gate Drive PCB:

It is designed to operate in a wide range of environmental conditions.
It is very efficient, which helps to reduce energy costs.
It is reliable and durable, which helps to reduce downtime.

How to use the Allen-Bradley 1336-BDB-SP53C Gate Drive PCB

The Allen-Bradley 1336-BDB-SP53C Gate Drive PCB is used in conjunction with an AC drive to control the speed and torque of a motor. The AC drive is responsible for converting AC power to DC power, and then converting the DC power back to AC power at a different frequency. The Gate Drive PCB is responsible for turning the motor on and off, and for controlling the speed of the motor by adjusting the frequency of the AC output.

To use the Allen-Bradley 1336-BDB-SP53C Gate Drive PCB, you will need to connect it to the AC drive and to the motor. The AC drive will provide the Gate Drive PCB with the power it needs to operate. The Gate Drive PCB will send signals to the motor to turn it on and off, and to control its speed.

The Allen-Bradley 1336-BDB-SP53C Gate Drive PCB is a complex piece of equipment, and it is important to follow the instructions carefully when installing and using it. If you are unsure about how to use the Gate Drive PCB, please consult a qualified electrician.
