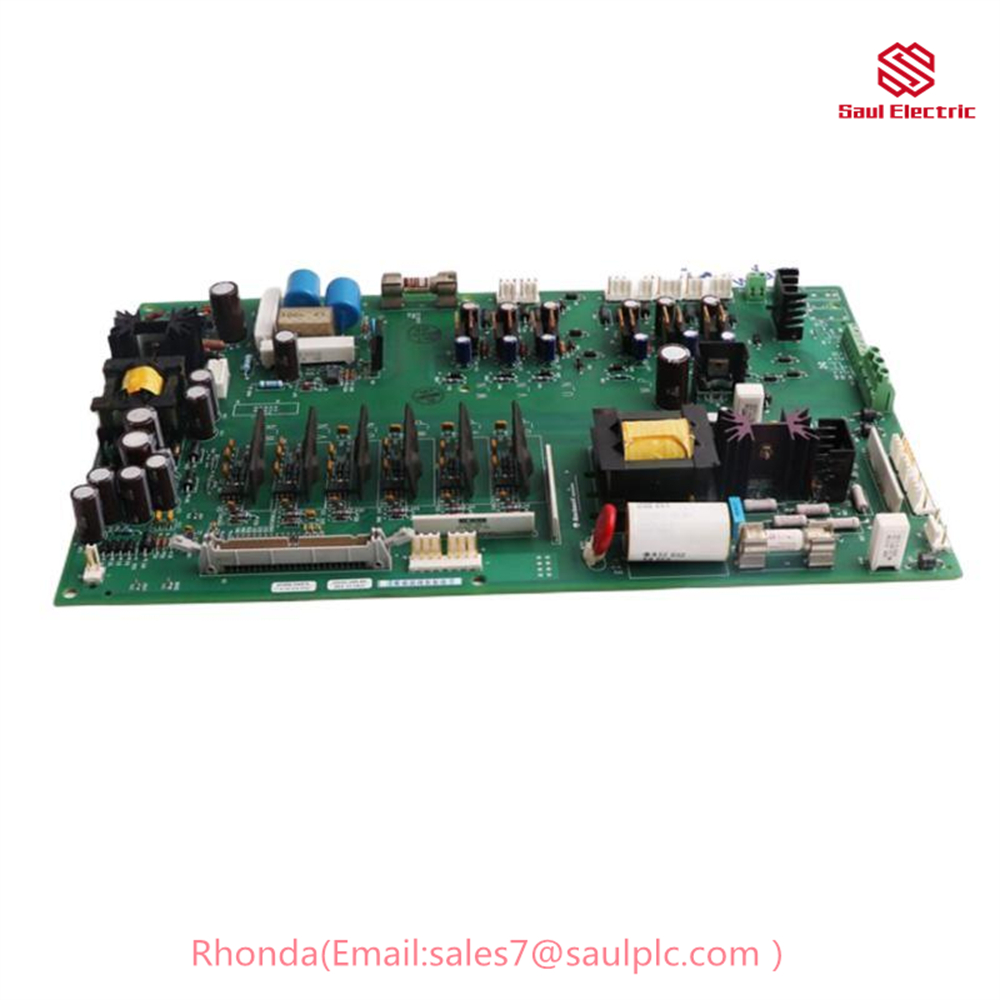

Product Information:A-B 1336-BDB-SP46D KIT Gate Driver Board

Allen-Bradley 1336-BDB-SP46D is a KIT GATE DRIVER BOARD, 1336STG, 460V, 600HP that was discontinued by the manufacturer in 2020. It is a PCB gate drive board from Allen-Bradley/Rockwell Automation that replaced the 1336-BDB-SP46A. The 1336-BDB-SP46D is a 1336STEF series with a Frame G type frame.

Product Parameters:

• Voltage: 460V
• Horsepower: 600HP
• Form Factor: PCB
• Series: 1336STEF
• Frame Type: Frame G

Usage Methods:

The 1336-BDB-SP46D is used to drive the gates of a 1336STEF series AC drive. The drive board is mounted inside the drive enclosure and is connected to the drive’s power supply and to the motor terminals. The drive board receives control signals from the drive’s controller and uses these signals to generate the gate signals that are required to operate the motor.

Product Advantages:

• The 1336-BDB-SP46D is a high-performance gate drive board that is designed to provide reliable and efficient operation of a 1336STEF series AC drive.
• The drive board is easy to install and maintain.
• The drive board is backed by a warranty from Allen-Bradley/Rockwell Automation.

How to Use the Allen-Bradley 1336-BDB-SP46D:

1. Install the drive board inside the drive enclosure.
2. Connect the drive board to the drive’s power supply and to the motor terminals.
3. Connect the drive board to the drive’s controller.
4. Configure the drive board for the specific application.
5. Power up the drive and verify that it is operating properly.

Please note: The Allen-Bradley 1336-BDB-SP46D is a discontinued product and may be difficult to find. If you are in need of a replacement drive board for a 1336STEF series AC drive, it is recommended that you contact Allen-Bradley/Rockwell Automation for assistance.
