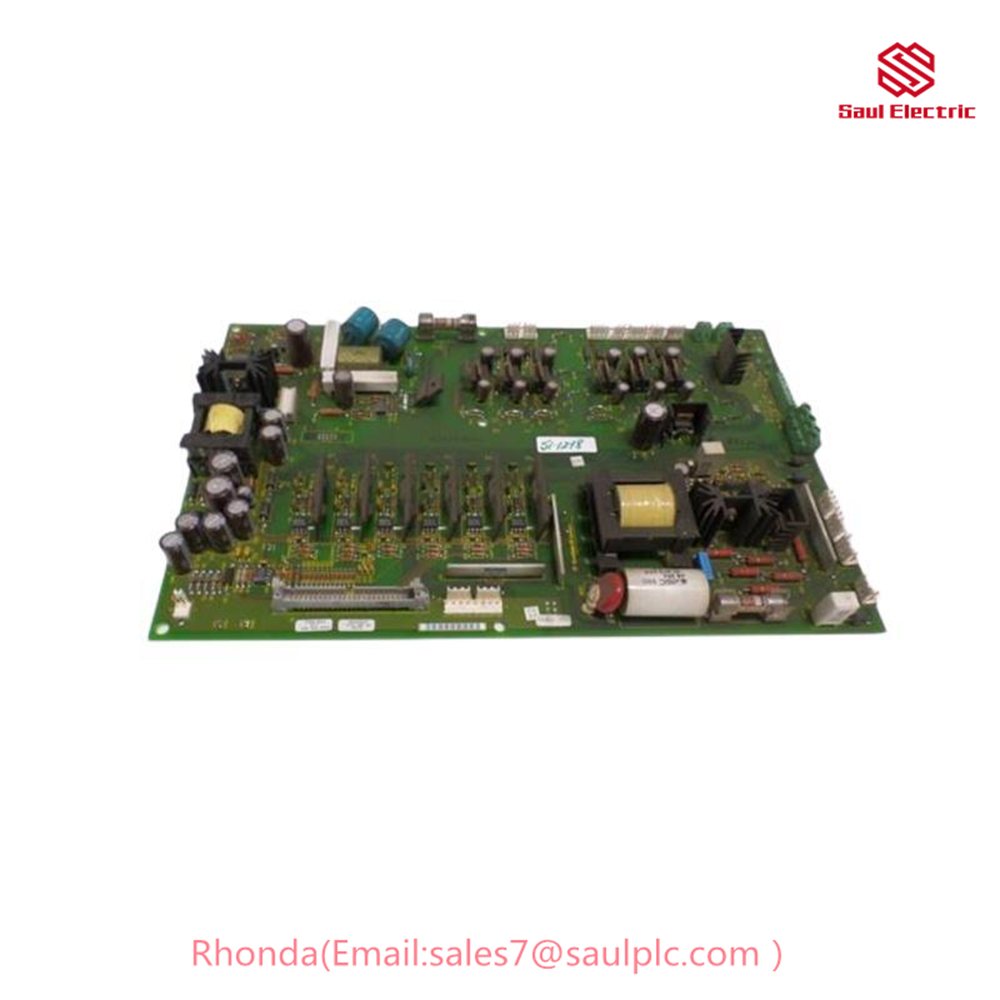

Product Information:A-B 1336-BDB-SP44C Gate Driver Board
Product Description
The Allen-Bradley 1336-BDB-SP44C is a gate driver board used with the Allen-Bradley 1336 adjustable frequency drives in multiple subseries. The main function of the adjustable frequency drive is to regulate the torque of a motor by using motor control algorithms. The gate driver board is responsible for controlling the turning on and off of the transistors in the inverter stage of the drive.
Product Parameters
- Horsepower rating: 20 HP
- Voltage rating: 460 VAC
- Dimensions: 9.5 inches x 6.5 inches x 2 inches
- Weight: 1.5 pounds
Usage Methods
The Allen-Bradley 1336-BDB-SP44C gate driver board is installed in the Allen-Bradley 1336 adjustable frequency drive. The drive is then connected to the motor and power supply. The drive can be programmed using the Allen-Bradley DriveExplorer software.
Product Advantages
The Allen-Bradley 1336-BDB-SP44C gate driver board is a high-quality product that is designed to provide reliable and efficient operation of the Allen-Bradley 1336 adjustable frequency drive. The board is also easy to install and maintain.
Additional Information
The Allen-Bradley 1336-BDB-SP44C gate driver board is a discontinued product. However, it is still possible to purchase replacement boards from authorized distributors and repair centers.
How to Use the Allen-Bradley 1336-BDB-SP44C Gate Driver Board
To use the Allen-Bradley 1336-BDB-SP44C gate driver board, you will need to install it in the Allen-Bradley 1336 adjustable frequency drive. The drive is then connected to the motor and power supply. The drive can be programmed using the Allen-Bradley DriveExplorer software.
Here are the steps on how to install the Allen-Bradley 1336-BDB-SP44C gate driver board:
- Disconnect the power supply to the drive.
- Remove the cover of the drive.
- Locate the gate driver board.
- Remove the old gate driver board.
- Install the new gate driver board.
- Replace the cover of the drive.
- Connect the power supply to the drive.
Once the gate driver board is installed, you can program the drive using the Allen-Bradley DriveExplorer software. The DriveExplorer software allows you to configure the drive parameters, such as the motor type, voltage, and current. You can also use the DriveExplorer software to monitor the drive performance and troubleshoot any problems.
Applications for the Allen-Bradley 1336-BDB-SP44C Gate Driver Board
The Allen-Bradley 1336-BDB-SP44C gate driver board is used in a variety of applications, including:
- Industrial automation
- HVAC
- Conveyor systems
- Robotics
- Printing and packaging
- Food and beverage processing
- Textile manufacturing
- Mining
- Oil and gas
Conclusion
The Allen-Bradley 1336-BDB-SP44C gate driver board is a high-quality product that is designed to provide reliable and efficient operation of the Allen-Bradley 1336 adjustable frequency drive. The board is also easy to install and maintain.
