Product Information:A-B 1336-BDB-SP43D Gate Driver
Product description

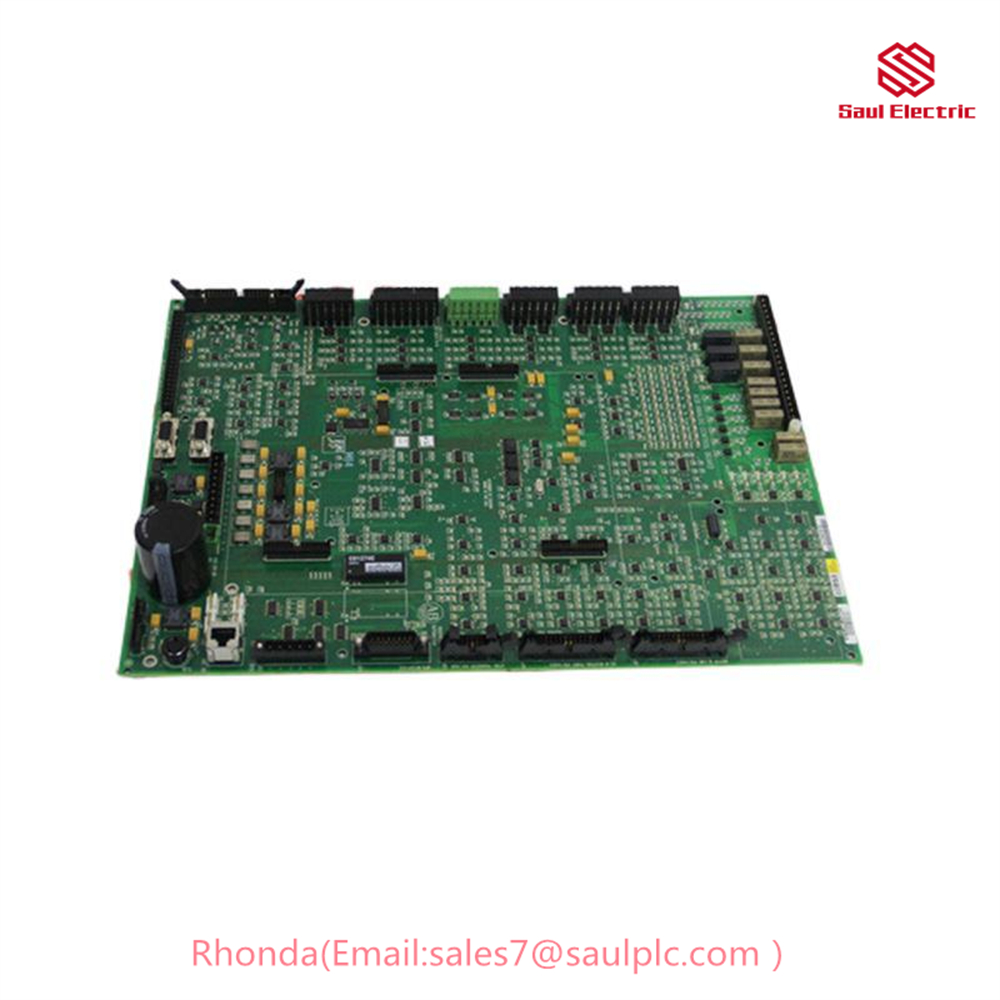

The Allen-Bradley 1336-BDB-SP43D is a gate driver PC board for 1336STG series drives. It is designed to drive three-phase induction motors rated up to 300 HP at 460 V AC. The 1336-BDB-SP43D is a high-performance gate driver that provides fast and reliable switching of the motor’s power transistors. It also includes a number of features that protect the drive and motor from damage, such as overcurrent protection, overvoltage protection, and undervoltage protection.
Product parameters
- Voltage rating: 460 V AC
- Current rating: 300 A
- Power rating: 300 HP
- Switching frequency: 16 kHz
- Protection features: Overcurrent protection, overvoltage protection, undervoltage protection
Usage methods
The Allen-Bradley 1336-BDB-SP43D is installed in the 1336STG series drive enclosure. The motor connections are made to the gate driver PC board through a terminal block. The gate driver PC board is also connected to the drive’s control board through a ribbon cable.
Product advantages
- High-performance gate driver for fast and reliable switching of the motor’s power transistors
- Protection features to protect the drive and motor from damage
- Easy to install and maintain
Applications
The Allen-Bradley 1336-BDB-SP43D is used in a variety of applications, such as:
- Industrial automation
- HVAC systems
- Material handling
- Food and beverage processing
- Oil and gas industry
Example of usage
The Allen-Bradley 1336-BDB-SP43D gate driver PC board can be used in a conveyor system to drive a three-phase induction motor. The motor would be used to move the conveyor belt. The gate driver PC board would be installed in the drive enclosure and connected to the motor and drive controller.
The gate driver PC board would receive a signal from the drive controller to turn on the motor. The gate driver PC board would then send a signal to the motor’s power transistors to turn on the motor. The gate driver PC board would also monitor the motor for any problems, such as overcurrent or overvoltage. If a problem is detected, the gate driver PC board would turn off the motor to protect it from damage.
