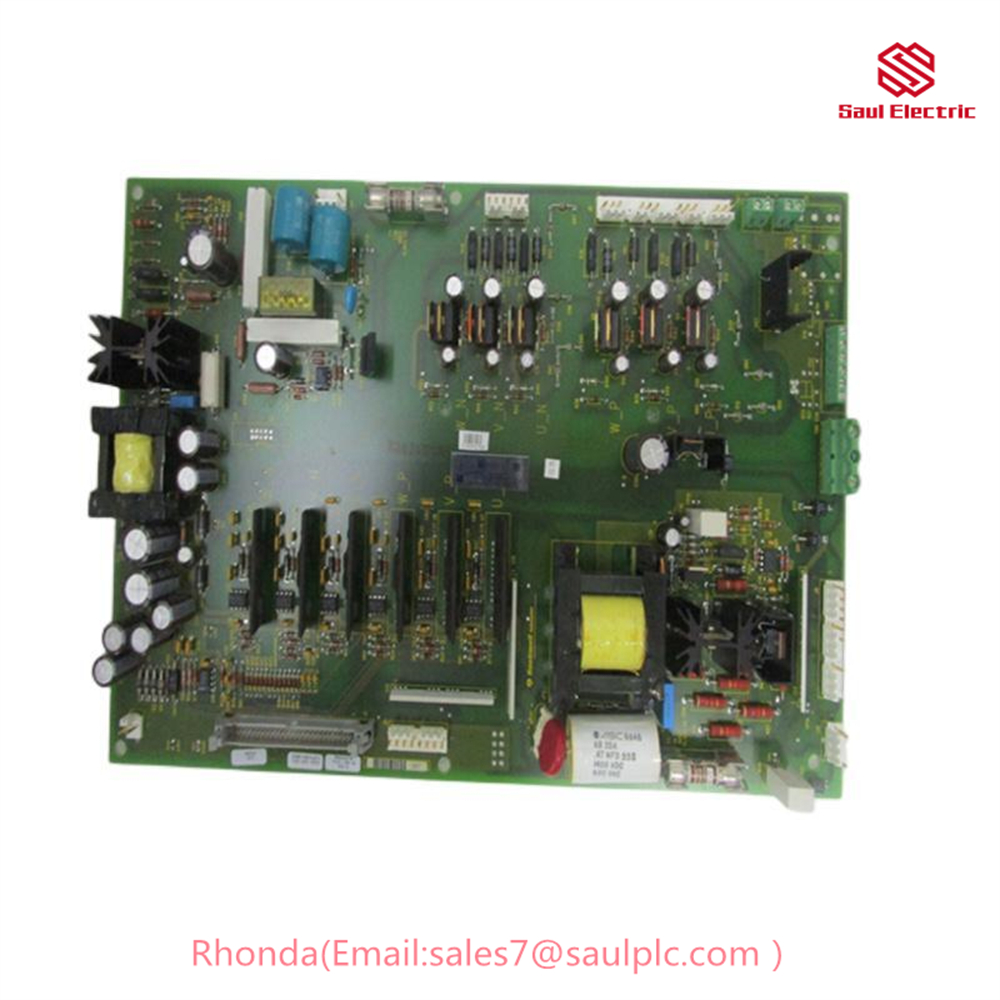

Product Information:A-B 1336-BDB-SP37C PCB Gate Driver Board
Product description
Allen-Bradley 1336-BDB-SP37C is a gate drive board for 1336 Plus variable frequency drives. It is a printed circuit board that controls the flow of power to the motor. The gate drive board is responsible for turning on and off the motor’s transistors at the correct time, in order to produce the desired output speed and torque.
Product parameters
- Input voltage: 460 VAC
- Output voltage: 460 VAC
- Current rating: 37 amps
- Frequency range: 0-60 Hz
- Horsepower rating: Up to 15 HP
Usage methods
The Allen-Bradley 1336-BDB-SP37C gate drive board is used in conjunction with a 1336 Plus variable frequency drive to control the speed and torque of a motor. The gate drive board is installed inside the drive enclosure. The drive is then connected to the motor and the power supply.
To use the gate drive board, the drive must be programmed to the desired speed and torque settings. The drive will then generate the appropriate signals to the gate drive board, which will control the flow of power to the motor.
Product advantages
The Allen-Bradley 1336-BDB-SP37C gate drive board is a high-quality product that is designed to provide reliable and efficient control of motors. It has a number of advantages over other gate drive boards, including:
- It is compatible with all 1336 Plus variable frequency drives.
- It is easy to install and use.
- It is highly reliable and durable.
- It is energy efficient.
Applications
The Allen-Bradley 1336-BDB-SP37C gate drive board is used in a wide variety of applications, including:
- HVAC systems
- Industrial automation systems
- Material handling systems
- Food and beverage processing systems
- Textile machinery
- Printing and packaging machinery
Conclusion
The Allen-Bradley 1336-BDB-SP37C gate drive board is a high-quality product that is designed to provide reliable and efficient control of motors. It is easy to install and use, and it is compatible with all 1336 Plus variable frequency drives.
