Product Information:A-B 1336-BDB-SP30C Gate driver PCB
Allen-Bradley 1336-BDB-SP30C
Product Description

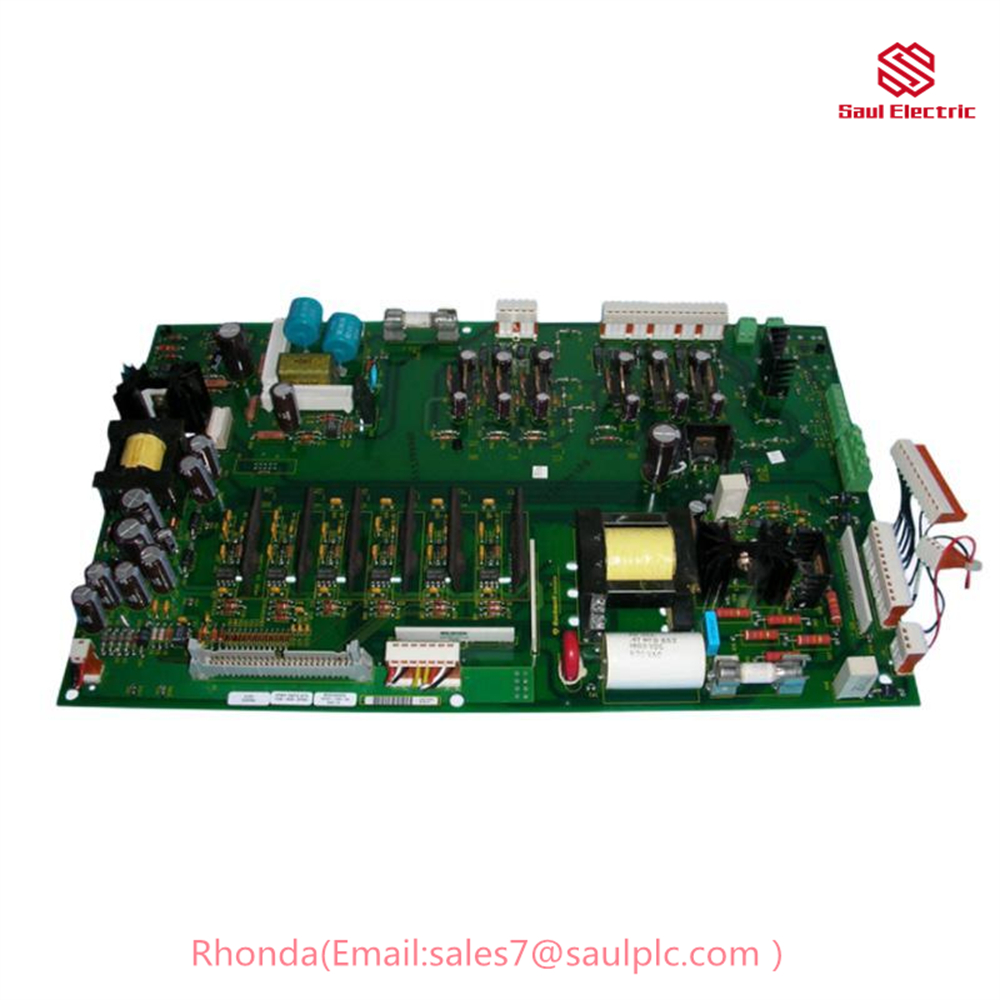

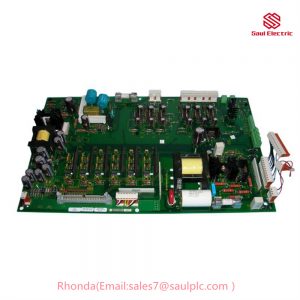

The Allen-Bradley 1336-BDB-SP30C is a gate driver board for 100 horsepower (HP) drives that operate at 460 volts AC input voltage. It is a spare part kit that contains a printed circuit board (PCB). The 1336-BDB-SP30C is obsolete, but it is still available from some suppliers.
Product Parameters
- Drive type: AC variable frequency drive (VFD)
- Horsepower: 100 HP
- Input voltage: 460 VAC
- Output voltage: 460 VAC
- PCB dimensions: 10.2 inches x 8.2 inches (260 mm x 208 mm)
Usage Methods
The Allen-Bradley 1336-BDB-SP30C gate driver board is used to drive the power transistors of an AC VFD. It is responsible for turning the transistors on and off at the correct times to produce the desired output voltage and frequency.
To use the 1336-BDB-SP30C gate driver board, it must be connected to the power transistors, the VFD controller, and the power supply. The power transistors are typically connected to the output terminals of the VFD. The VFD controller is responsible for sending control signals to the gate driver board. The power supply provides power to the gate driver board and the power transistors.
Product Advantages
The Allen-Bradley 1336-BDB-SP30C gate driver board is a reliable and high-quality product. It is designed to operate in demanding industrial environments. The 1336-BDB-SP30C is also easy to install and maintain.
Additional Notes
The Allen-Bradley 1336-BDB-SP30C gate driver board is obsolete, but it is still available from some suppliers. If you are unable to find a new 1336-BDB-SP30C gate driver board, you may be able to find a used one or have your existing board repaired.
It is important to note that the Allen-Bradley 1336-BDB-SP30C gate driver board is a critical component of an AC VFD. If the gate driver board fails, the VFD will not be able to operate. Therefore, it is important to regularly inspect and maintain the gate driver board.
