Product Information:A-B 1336-BDB-SP17D Gate Driver Board
Allen-Bradley 1336-BDB-SP17D Product Description

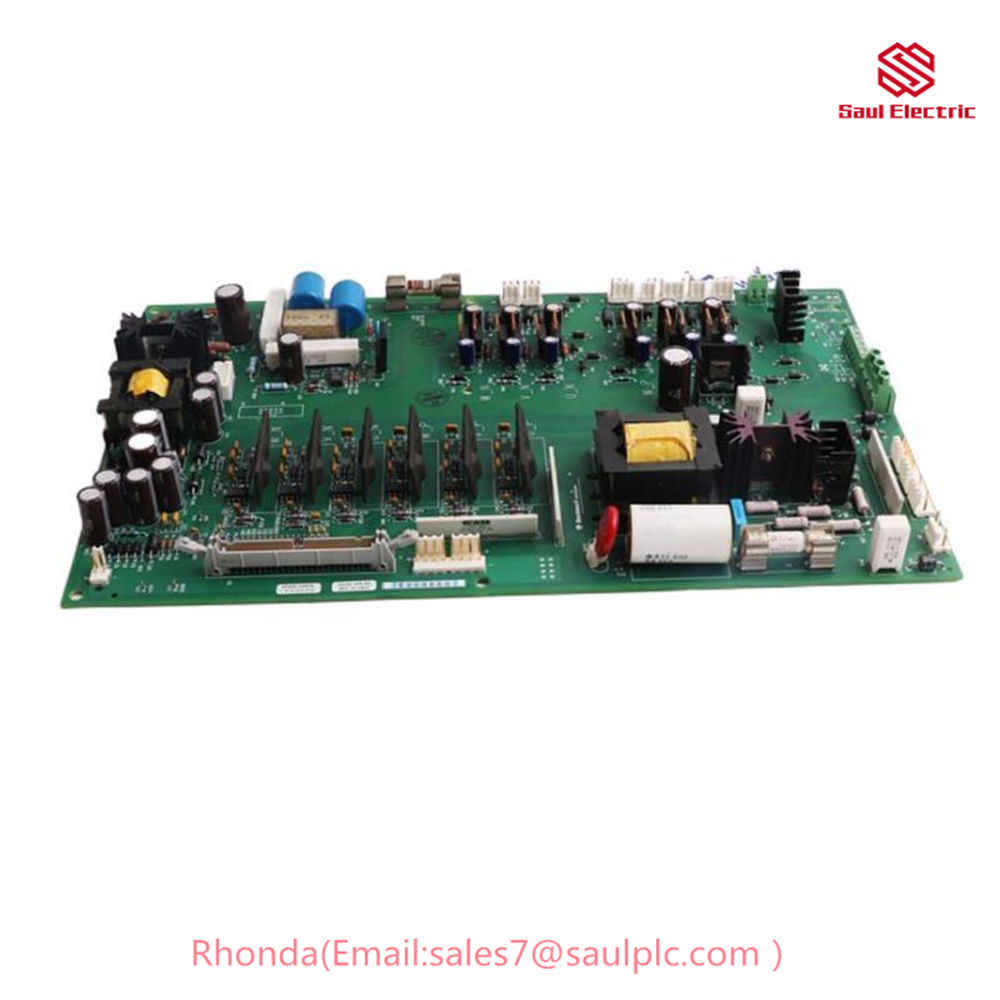

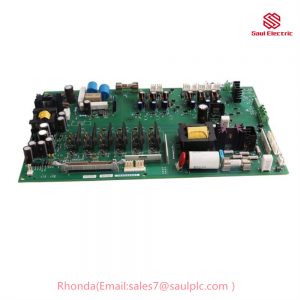

The Allen-Bradley 1336-BDB-SP17D is a PCB gate driver board that is used with the Allen-Bradley 1336 PLUS, FORCE, IMPACT, and PLUS II drives. It is located directly underneath the 1336 drive’s main control board. The 1336-BDB-SP17D PCB gate driver board is responsible for driving the IGBTs in the 1336 drive’s power module. It does this by providing high-power pulses to the IGBTs, which causes them to turn on and off.
Allen-Bradley 1336-BDB-SP17D Product Parameters
- Voltage: 480 VAC
- Horsepower: 40 HP
- Frequency: 60 Hz
- Dimensions: 10.25 inches x 7.5 inches x 2.25 inches
- Weight: 2.5 pounds
Allen-Bradley 1336-BDB-SP17D Usage Methods
The Allen-Bradley 1336-BDB-SP17D PCB gate driver board is installed in the Allen-Bradley 1336 drive. It is connected to the main control board of the drive and to the power module. The 1336-BDB-SP17D PCB gate driver board is controlled by the main control board of the drive. The main control board sends signals to the 1336-BDB-SP17D PCB gate driver board, which then drives the IGBTs in the power module.
Allen-Bradley 1336-BDB-SP17D Product Advantages
The Allen-Bradley 1336-BDB-SP17D PCB gate driver board has a number of advantages, including:
- It is designed to work specifically with the Allen-Bradley 1336 PLUS, FORCE, IMPACT, and PLUS II drives.
- It is made from high-quality materials and is built to last.
- It is easy to install and maintain.
- It is reliable and provides efficient operation of the motor.
Overall, the Allen-Bradley 1336-BDB-SP17D PCB gate driver board is a high-quality product that is designed to work with the Allen-Bradley 1336 PLUS, FORCE, IMPACT, and PLUS II drives. It is a reliable and efficient product that provides efficient operation of the motor.
