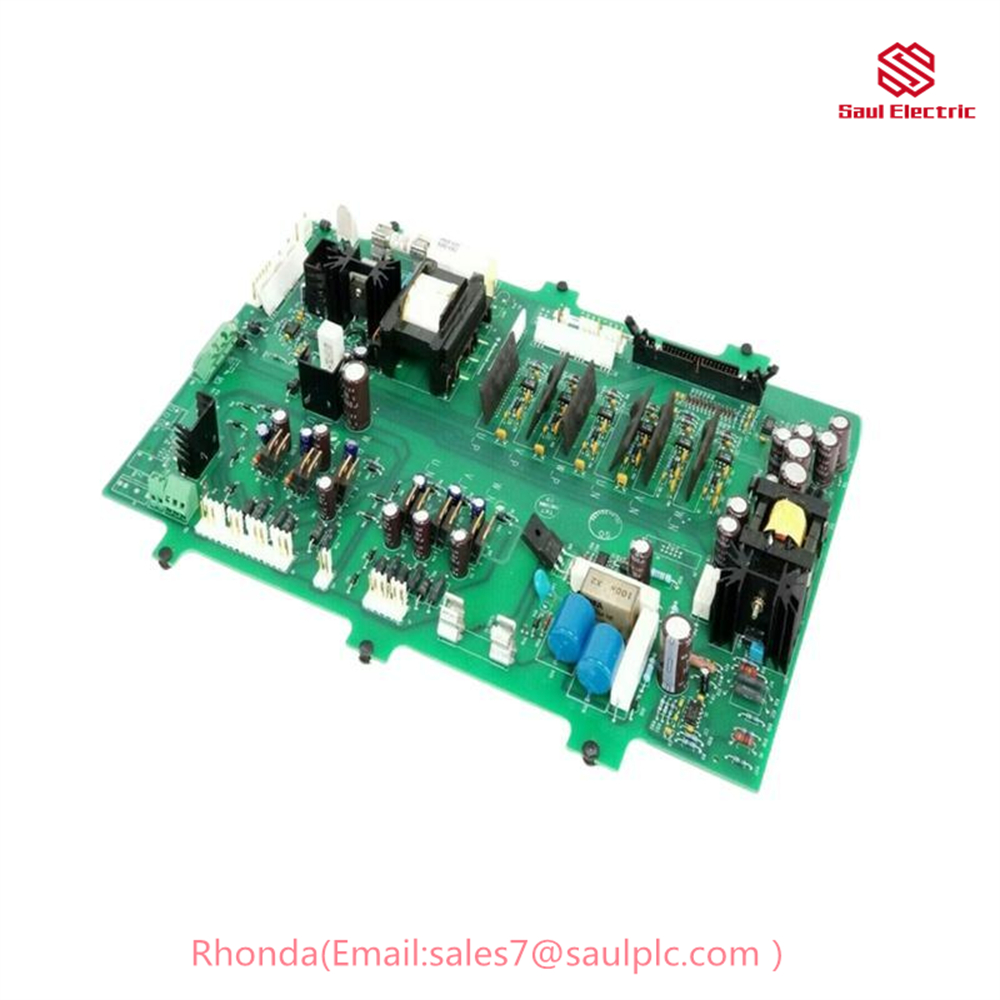

Product Information:A-B 1336-BDB-SP11C Driver Board
Product description:
The Allen-Bradley 1336-BDB-SP11C is a gate driver PC board used to control the gates of power MOSFETs and IGBTs. It is a high-performance board that can provide up to 10A of peak current and can operate at frequencies up to 20kHz. The board also features a number of protection features, such as overvoltage and undervoltage protection, overcurrent protection, and short-circuit protection.
Product parameters:
- Peak current: 10A
- Operating frequency: up to 20kHz
- Input voltage: 12V to 30V
- Output voltage: 12V to 30V
- Protection features: overvoltage and undervoltage protection, overcurrent protection, short-circuit protection
Usage methods:
The 1336-BDB-SP11C gate driver PC board is typically used in applications where high-power MOSFETs or IGBTs need to be controlled. For example, it can be used in motor drives, power supplies, and welding machines.
To use the 1336-BDB-SP11C gate driver PC board, the user must first connect the board to the power supply and to the MOSFETs or IGBTs that need to be controlled. The user must also connect the board to the control signals that will be used to turn the MOSFETs or IGBTs on and off.
Once the board is connected, the user can configure the board’s settings using the provided software. The settings include the operating frequency, the dead time, and the protection features.
Once the board is configured, the user can start using it to control the MOSFETs or IGBTs. To turn a MOSFET or IGBT on, the user must send a high signal to the corresponding control input. To turn a MOSFET or IGBT off, the user must send a low signal to the corresponding control input.
Product advantages:
The Allen-Bradley 1336-BDB-SP11C gate driver PC board has a number of advantages, including:
- High performance: The board can provide up to 10A of peak current and can operate at frequencies up to 20kHz.
- Protection features: The board features a number of protection features, such as overvoltage and undervoltage protection, overcurrent protection, and short-circuit protection.
- Easy to use: The board is easy to use and configure using the provided software.
Overall, the Allen-Bradley 1336-BDB-SP11C gate driver PC board is a high-performa
