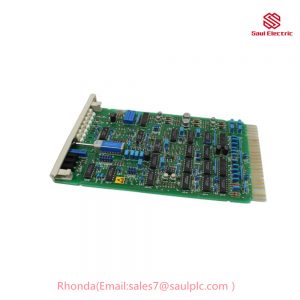

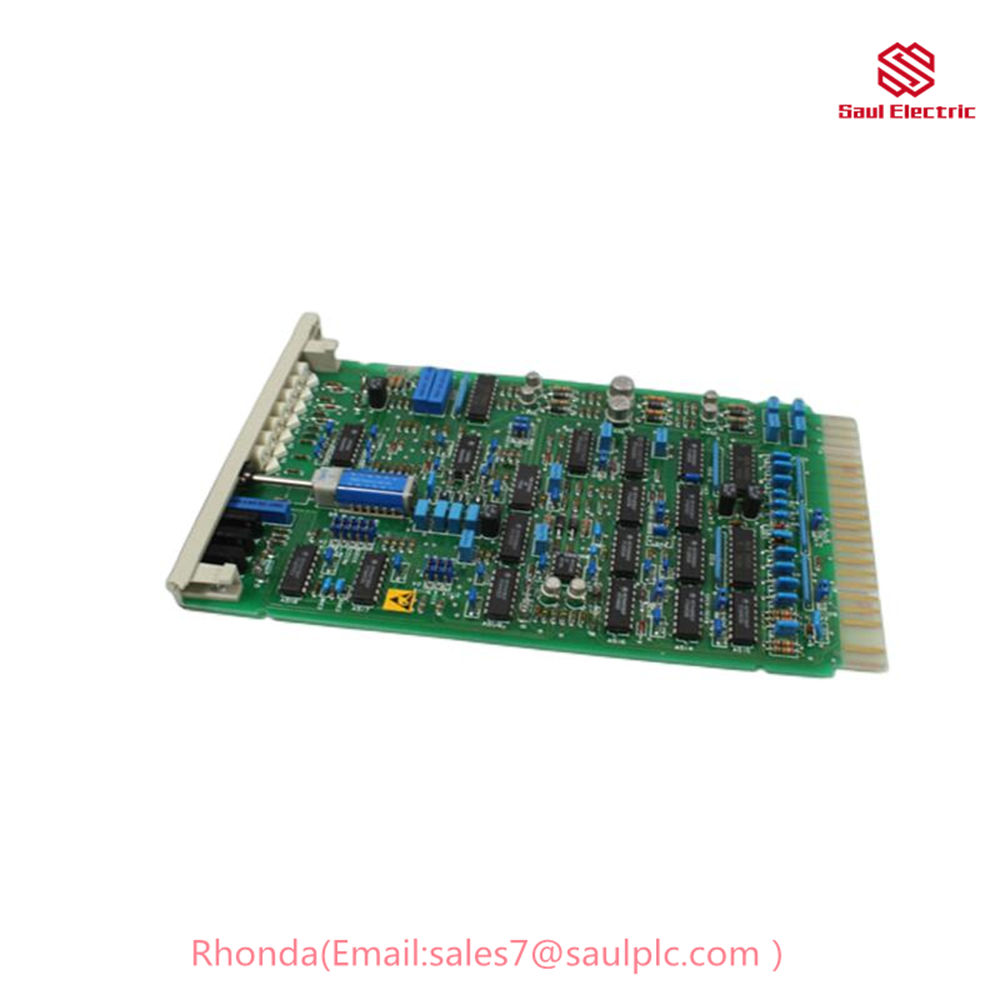

ABB UNITROL UN 0806 a-P Var .1(UN0806A-PV1) Voltage regulator-Saul Electric

Product description:

The ABB UNITROL UN 0806 a-P Var .1 is a voltage regulator for small and medium synchronous generators and industrial machines. It combines performance control and power regulation in one unit. The UNITROL UN 0806 is a versatile regulator that can be used in a variety of applications, including:

Generator voltage regulation
Industrial machine voltage regulation
Power factor correction
Reactive power compensation
Harmonic filtering

Product parameters:

Usage method:

The ABB UNITROL UN 0806 a-P Var .1 is easy to use. It can be connected to a generator or industrial machine using the included terminals. The regulator can be configured using the front panel controls.

Product application:

The ABB UNITROL UN 0806 a-P Var .1 is a versatile regulator that can be used in a variety of applications. Some common applications include:

Generator voltage regulation: The UNITROL UN 0806 can be used to regulate the voltage of a synchronous generator. This is important for ensuring that the generator operates reliably and efficiently.
Industrial machine voltage regulation: The UNITROL UN 0806 can be used to regulate the voltage of an industrial machine. This is important for ensuring that the machine operates properly and does not damage sensitive components.
Power factor correction: The UNITROL UN 0806 can be used to improve the power factor of a load. This can reduce energy costs and improve the efficiency of the electrical system.
Reactive power compensation: The UNITROL UN 0806 can be used to compensate for reactive power. This can improve the voltage stability of the electrical system and reduce the risk of blackouts.
Harmonic filtering: The UNITROL UN 0806 can be used to filter harmonics from the electrical system. This can improve the power quality and protect sensitive equipment from damage.

Example applications:

Generators in power plants and industrial facilities
Industrial machines such as motors, pumps, and compressors
Data centers and other critical facilities
Renewable energy systems such as solar and wind farms
Utility grids

UNITROL® Excitation Systems

Excitation systems are a key component in many power generating units used by plant owners and operators to achieve reliability of operations, stability and fast transient response of their assets, as per grid requirements.

UNITROL® 1000 Series

The UNITROL® 1000 Series is ABB’s brushless excitation system for applications using synchronous machines ranging from 100kVA to 80MVA.

UNITROL® 1020

UNITROL 1020 is the voltage regulator intended for small and medium synchronous generators and industrial machines. It combines performance control and power circuits with a simple mechanical design provides high performance in a wide range of temperature and vibration conditions .

With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, this automatic voltage regulator (AVR) is manufactured using the most advanced microprocessor technology and IGBT semiconductors allowing current output up to 20 ADC for continuous operation.

UNITROL® 1010

UNITROL® 1010 is the Indirect Excitation System for small and medium synchronous generators and industrial machines. Its advanced microprocessor technology and IGBT semiconductors allow for current output up to 10 ADC for continuous operation.

With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, UNITROL 1010 provides high performance in a wide range of temperature and vibration conditions.

UNITROL® 1005

UNITROL 1005 is the smaller component of the family designed for low-end excitation application with maximum excitation current up to 5 ADC.
Like all UNITROL1000 products, UNITROL 1005 is based on the same target software source code and share the same simulation models that makes it very suitable for demanding grid code applications.

Included in the package is CMT1000, the tool for focused and fast commissioning.

UNITROL® 1000 Flex Systems

UNITROL® 1000 FLEX Systems are prepackaged solutions for applications requiring single or dual channel controllers. All systems are fitted with UNITROL® 1020 FULL as a standard device, leveraging the best solution for optimum price and flexible project adjustment constraints.
