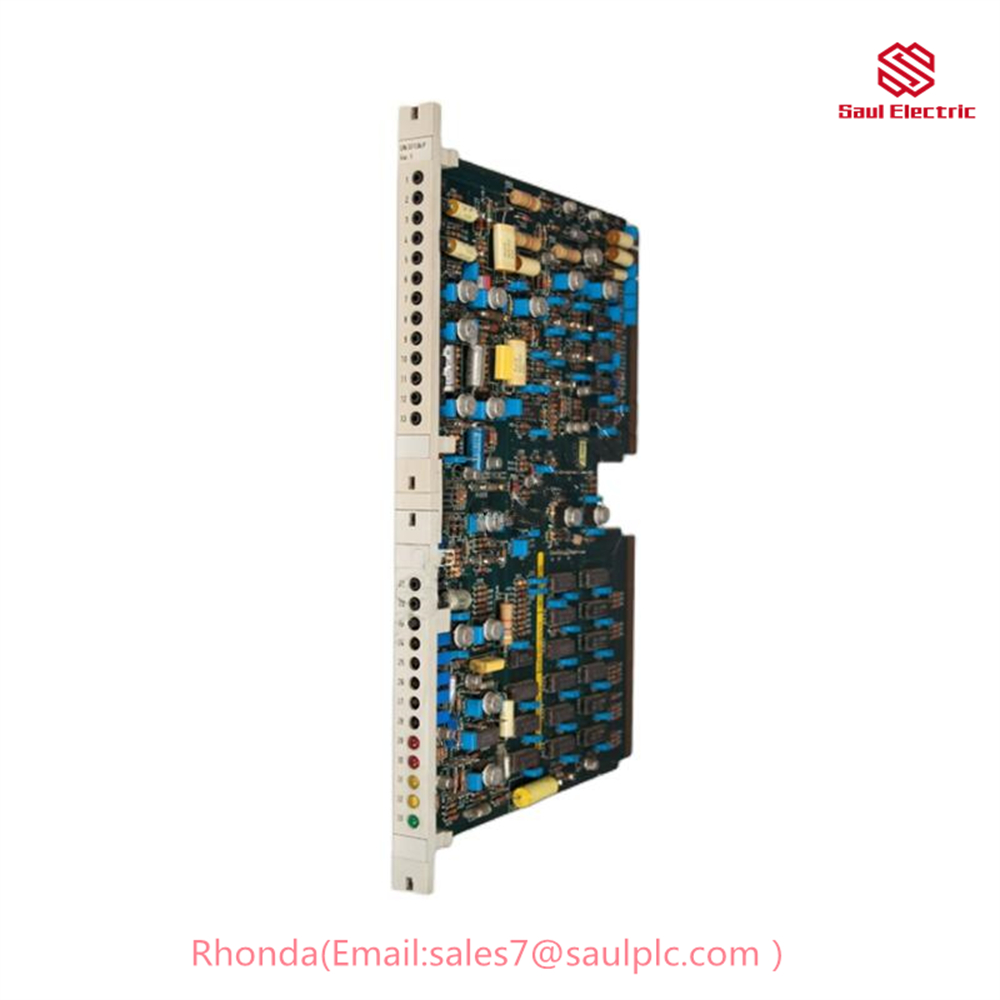

ABB UNITROL UN 0710 b-P Var .1(HIER449696R1) Voltage regulator-Saul Electric

Product Description

ABB UNITROL UN 0710 b-P Var .1 is a voltage regulator intended for small and medium synchronous generators and industrial machines. It combines performance control and power electronics in a single unit, making it a compact and efficient solution for a variety of applications.

Product Parameters

Usage Method

The ABB UNITROL UN 0710 b-P Var .1 is a simple and straightforward to use voltage regulator. It can be installed in any standard control cabinet. The input and output terminals are clearly marked, and the unit is supplied with a detailed instruction manual.

Product Application

The ABB UNITROL UN 0710 b-P Var .1 is suitable for a wide range of applications, including:

Synchronous generators
Industrial machines
Power factor correction
Voltage stabilization
Soft starting

Examples

Synchronous generators: The ABB UNITROL UN 0710 b-P Var .1 can be used to regulate the voltage of a synchronous generator, ensuring that it provides a stable and reliable power supply.
Industrial machines: The ABB UNITROL UN 0710 b-P Var .1 can be used to regulate the voltage of industrial machines, such as electric motors and pumps. This can help to improve the performance and efficiency of these machines, as well as extending their lifespan.
Power factor correction: The ABB UNITROL UN 0710 b-P Var .1 can be used to improve the power factor of an electrical system. This can help to reduce energy consumption and improve the efficiency of the system.
Voltage stabilization: The ABB UNITROL UN 0710 b-P Var .1 can be used to stabilize the voltage of an electrical system. This can help to protect sensitive equipment from damage caused by voltage fluctuations.
Soft starting: The ABB UNITROL UN 0710 b-P Var .1 can be used to provide a soft start for large electric motors. This can help to reduce the inrush current and protect the motor from damage.

UNITROL® Excitation Systems

Excitation systems are a key component in many power generating units used by plant owners and operators to achieve reliability of operations, stability and fast transient response of their assets, as per grid requirements.

UNITROL® 1000 Series

The UNITROL® 1000 Series is ABB’s brushless excitation system for applications using synchronous machines ranging from 100kVA to 80MVA.

UNITROL® 1020

UNITROL 1020 is the voltage regulator intended for small and medium synchronous generators and industrial machines. It combines performance control and power circuits with a simple mechanical design provides high performance in a wide range of temperature and vibration conditions .

With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, this automatic voltage regulator (AVR) is manufactured using the most advanced microprocessor technology and IGBT semiconductors allowing current output up to 20 ADC for continuous operation.

UNITROL® 1010

UNITROL® 1010 is the Indirect Excitation System for small and medium synchronous generators and industrial machines. Its advanced microprocessor technology and IGBT semiconductors allow for current output up to 10 ADC for continuous operation.

With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, UNITROL 1010 provides high performance in a wide range of temperature and vibration conditions.

UNITROL® 1005

UNITROL 1005 is the smaller component of the family designed for low-end excitation application with maximum excitation current up to 5 ADC.
Like all UNITROL1000 products, UNITROL 1005 is based on the same target software source code and share the same simulation models that makes it very suitable for demanding grid code applications.

Included in the package is CMT1000, the tool for focused and fast commissioning.

UNITROL® 1000 Flex Systems

UNITROL® 1000 FLEX Systems are prepackaged solutions for applications requiring single or dual channel controllers. All systems are fitted with UNITROL® 1020 FULL as a standard device, leveraging the best solution for optimum price and flexible project adjustment constraints.
