Product description

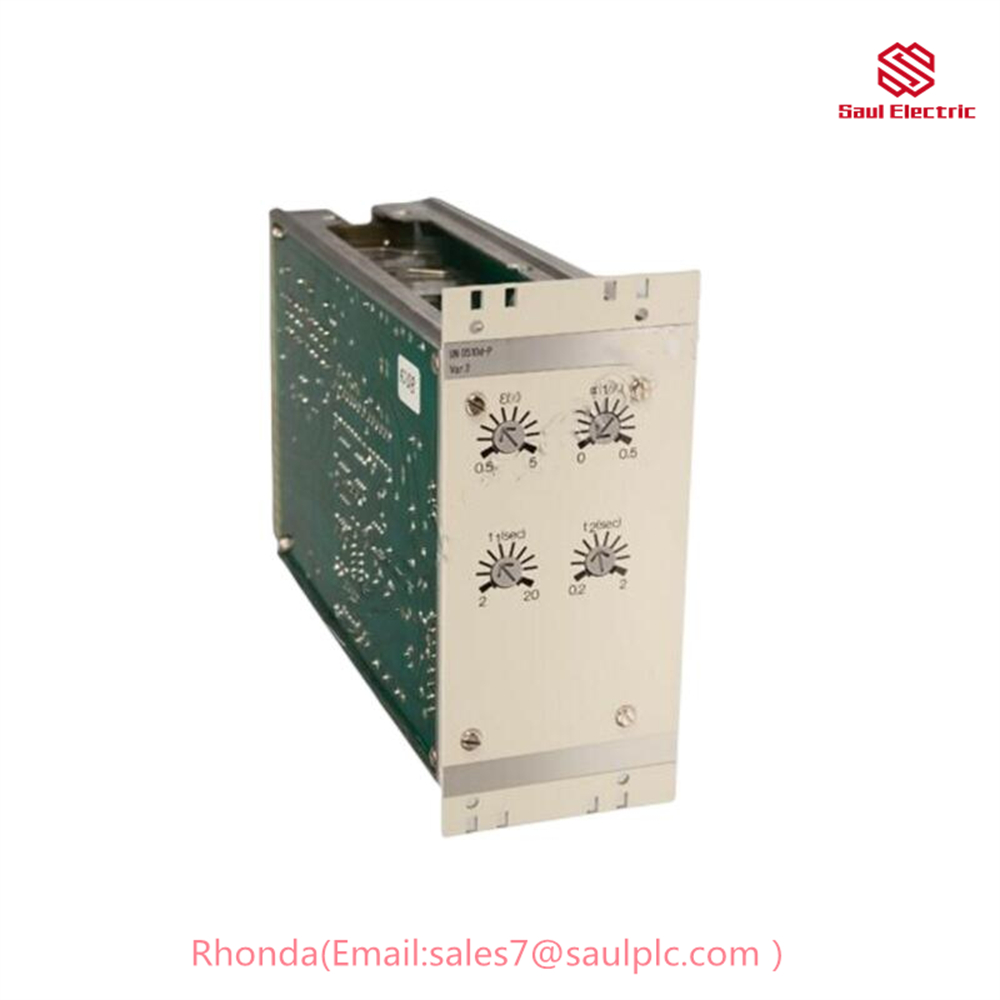

The ABB UNITROL UN 0510d-P Var .2 is a pulse control module. It is used to control the speed of electric motors by generating a pulse train that is proportional to the desired speed. The module can be used with a variety of electric motors, including AC induction motors, DC motors, and servo motors.
Product parameters
- Input voltage: 24 VDC
- Output voltage: 0-10 VDC
- Output current: 20 mA
- Pulse frequency: 0-10 kHz
- Duty cycle: 0-100%
Usage method
To use the ABB UNITROL UN 0510d-P Var .2, simply connect the input voltage to the V+ and V- terminals, and the output voltage to the S+ and S- terminals. The pulse frequency and duty cycle can be adjusted using the F and D potentiometers, respectively.
Product application
The ABB UNITROL UN 0510d-P Var .2 can be used in a variety of applications, including:
- Speed control of electric motors
- Positioning control of servo motors
- Flow control of pumps and valves
- Level control of liquids and solids
- Process control
Here are some examples of how the ABB UNITROL UN 0510d-P Var .2 can be used in real-world applications:
- In a manufacturing plant, the module could be used to control the speed of a conveyor belt that is transporting products.
- In a water treatment plant, the module could be used to control the flow of water through a pump.
- In a power plant, the module could be used to control the speed of a turbine.
- In a robotics application, the module could be used to control the position of a servo motor.
The ABB UNITROL UN 0510d-P Var .2 is a versatile and reliable pulse control module that can be used in a wide variety of applications.
UNITROL® Excitation Systems
Excitation systems are a key component in many power generating units used by plant owners and operators to achieve reliability of operations, stability and fast transient response of their assets, as per grid requirements.
UNITROL® 1000 Series
The UNITROL® 1000 Series is ABB’s brushless excitation system for applications using synchronous machines ranging from 100kVA to 80MVA.
UNITROL® 1020
UNITROL 1020 is the voltage regulator intended for small and medium synchronous generators and industrial machines. It combines performance control and power circuits with a simple mechanical design provides high performance in a wide range of temperature and vibration conditions .
With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, this automatic voltage regulator (AVR) is manufactured using the most advanced microprocessor technology and IGBT semiconductors allowing current output up to 20 ADC for continuous operation.
UNITROL® 1010
UNITROL® 1010 is the Indirect Excitation System for small and medium synchronous generators and industrial machines. Its advanced microprocessor technology and IGBT semiconductors allow for current output up to 10 ADC for continuous operation.
With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, UNITROL 1010 provides high performance in a wide range of temperature and vibration conditions.
UNITROL® 1005
UNITROL 1005 is the smaller component of the family designed for low-end excitation application with maximum excitation current up to 5 ADC.
Like all UNITROL1000 products, UNITROL 1005 is based on the same target software source code and share the same simulation models that makes it very suitable for demanding grid code applications.
Included in the package is CMT1000, the tool for focused and fast commissioning.
UNITROL® 1000 Flex Systems
UNITROL® 1000 FLEX Systems are prepackaged solutions for applications requiring single or dual channel controllers. All systems are fitted with UNITROL® 1020 FULL as a standard device, leveraging the best solution for optimum price and flexible project adjustment constraints.
