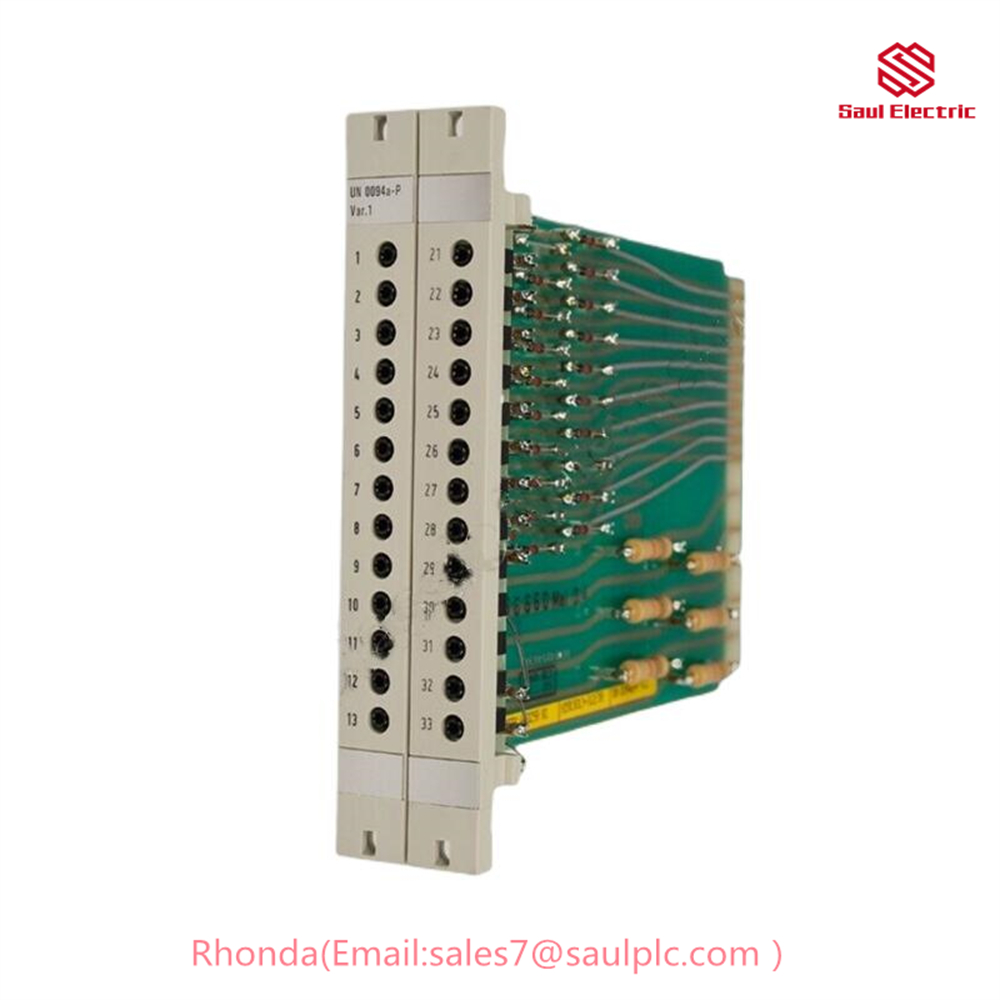

ABB UNITROL UN 0094 a-P V .1 is a single-phase, brushless, self-excited generator voltage regulator. It is designed for use with small and medium synchronous generators, and is ideal for a wide range of applications, including:
- Industrial machines
- Power generation systems
- Marine applications
- Renewable energy systems
Product description
The UNITROL UN 0094 a-P V .1 voltage regulator is a compact and lightweight unit that is easy to install and operate. It features a microprocessor-based control system that provides precise and reliable voltage regulation. The regulator also includes a number of features that make it ideal for a wide range of applications, including:
- Adjustable voltage regulation
- Soft start function
- Overvoltage and undervoltage protection
- Loss of excitation protection
- Remote monitoring and control
Product parameters
- Input voltage: 190-264 V AC
- Output voltage: 200-240 V AC
- Output current: 10 A
- Frequency: 50/60 Hz
- Regulation accuracy: ±0.5%
Usage method
The UNITROL UN 0094 a-P V .1 voltage regulator is typically installed in the control panel of the generator. It is connected to the generator’s output terminals, as well as to the generator’s exciter field. Once installed, the regulator can be configured using the built-in control panel or using the optional CMT 1000 software.
Product application
The UNITROL UN 0094 a-P V .1 voltage regulator is suitable for use with a wide range of synchronous generators, including:
- Brushless generators
- Permanent magnet generators
- Wound rotor generators
The regulator is also suitable for use with a variety of applications, including:
- Industrial machines
- Power generation systems
- Marine applications
- Renewable energy systems
Example applications:
- Emergency generators
- Standby generators
- Prime power generators
- Marine generators
- Wind turbine generators
- Solar panel generators
Conclusion
The ABB UNITROL UN 0094 a-P V .1 voltage regulator is a versatile and reliable solution for a wide range of applications. It is easy to install and operate, and it provides precise and reliable voltage regulation.
UNITROL® Excitation Systems
Excitation systems are a key component in many power generating units used by plant owners and operators to achieve reliability of operations, stability and fast transient response of their assets, as per grid requirements.
UNITROL® 1000 Series
The UNITROL® 1000 Series is ABB’s brushless excitation system for applications using synchronous machines ranging from 100kVA to 80MVA.
UNITROL® 1020
UNITROL 1020 is the voltage regulator intended for small and medium synchronous generators and industrial machines. It combines performance control and power circuits with a simple mechanical design provides high performance in a wide range of temperature and vibration conditions .
With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, this automatic voltage regulator (AVR) is manufactured using the most advanced microprocessor technology and IGBT semiconductors allowing current output up to 20 ADC for continuous operation.
UNITROL® 1010
UNITROL® 1010 is the Indirect Excitation System for small and medium synchronous generators and industrial machines. Its advanced microprocessor technology and IGBT semiconductors allow for current output up to 10 ADC for continuous operation.
With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, UNITROL 1010 provides high performance in a wide range of temperature and vibration conditions.
UNITROL® 1005
UNITROL 1005 is the smaller component of the family designed for low-end excitation application with maximum excitation current up to 5 ADC.
Like all UNITROL1000 products, UNITROL 1005 is based on the same target software source code and share the same simulation models that makes it very suitable for demanding grid code applications.
Included in the package is CMT1000, the tool for focused and fast commissioning.
UNITROL® 1000 Flex Systems
UNITROL® 1000 FLEX Systems are prepackaged solutions for applications requiring single or dual channel controllers. All systems are fitted with UNITROL® 1020 FULL as a standard device, leveraging the best solution for optimum price and flexible project adjustment constraints.
