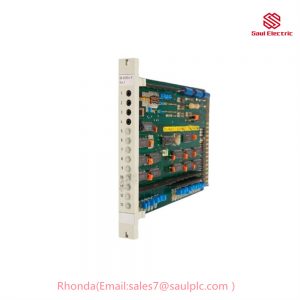

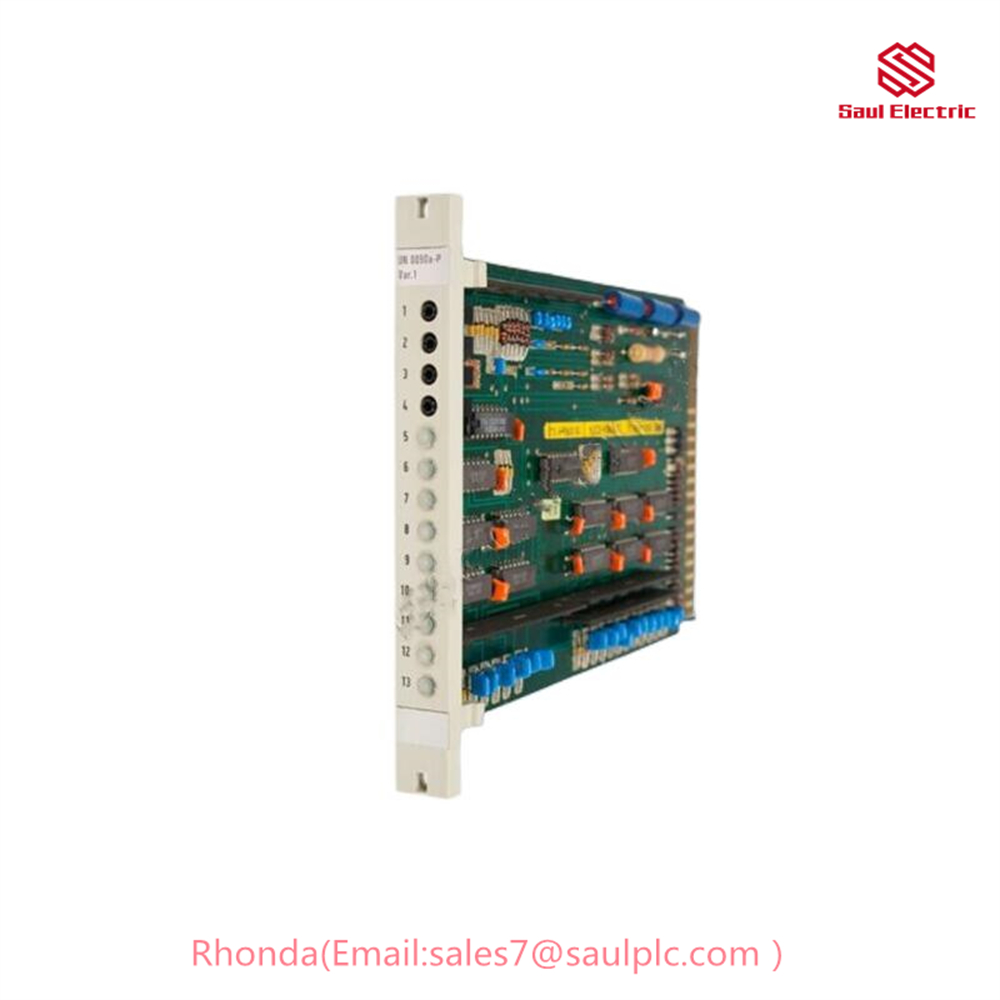

ABB UNITROL UN 0090a-P V.1(UN 0090 a-P v . 1) Summing Module-Saul Electric

Product Description

The ABB UNITROL UN 0090a-P V.1 is a Summing Module in the UNITROL line of process control equipment. It is used to sum analog signals from multiple sources, such as temperature sensors, pressure sensors, and flow sensors. The output of the summing module is a single analog signal that is proportional to the sum of the input signals.

Product Parameters

• Input voltage range: 0 to 10 V
• Output voltage range: 0 to 10 V
• Input impedance: 10 kΩ
• Output impedance: 100 Ω
• Accuracy: ±0.1%
• Temperature range: -10 to 55 °C

Usage Method

The ABB UNITROL UN 0090a-P V.1 Summing Module is a simple device to use. The input signals are connected to the screw terminals on the module. The output signal is connected to the screw terminal labeled “OUT”. The module is powered by a 24 V DC supply.

Product Application

The ABB UNITROL UN 0090a-P V.1 Summing Module can be used in a variety of applications, such as:

• Temperature control: To sum the signals from multiple temperature sensors to get an average temperature reading.
• Pressure control: To sum the signals from multiple pressure sensors to get an average pressure reading.
• Flow control: To sum the signals from multiple flow sensors to get an average flow rate reading.
• Process control: To sum the signals from multiple sensors to get a single signal that represents a process variable.

Examples

Here are some examples of how the ABB UNITROL UN 0090a-P V.1 Summing Module can be used:

• In a temperature control system, the summing module could be used to sum the signals from multiple temperature sensors in a room to get an average temperature reading. This average temperature reading could then be used to control a heater or air conditioner.
• In a pressure control system, the summing module could be used to sum the signals from multiple pressure sensors in a pipe to get an average pressure reading. This average pressure reading could then be used to control a pump or valve.
• In a flow control system, the summing module could be used to sum the signals from multiple flow sensors in a pipe to get an average flow rate reading. This average flow rate reading could then be used to control a pump or valve.
• In a process control system, the summing module could be used to sum the signals from multiple sensors, such as temperature sensors, pressure sensors, and flow sensors, to get a single signal that represents a process variable. This process variable signal could then be used to control a process, such as a chemical reaction or a manufacturing process.

UNITROL® Excitation Systems

Excitation systems are a key component in many power generating units used by plant owners and operators to achieve reliability of operations, stability and fast transient response of their assets, as per grid requirements.

UNITROL® 1000 Series

The UNITROL® 1000 Series is ABB’s brushless excitation system for applications using synchronous machines ranging from 100kVA to 80MVA.

UNITROL® 1020

UNITROL 1020 is the voltage regulator intended for small and medium synchronous generators and industrial machines. It combines performance control and power circuits with a simple mechanical design provides high performance in a wide range of temperature and vibration conditions .

With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, this automatic voltage regulator (AVR) is manufactured using the most advanced microprocessor technology and IGBT semiconductors allowing current output up to 20 ADC for continuous operation.

UNITROL® 1010

UNITROL® 1010 is the Indirect Excitation System for small and medium synchronous generators and industrial machines. Its advanced microprocessor technology and IGBT semiconductors allow for current output up to 10 ADC for continuous operation.

With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, UNITROL 1010 provides high performance in a wide range of temperature and vibration conditions.

UNITROL® 1005

UNITROL 1005 is the smaller component of the family designed for low-end excitation application with maximum excitation current up to 5 ADC.
Like all UNITROL1000 products, UNITROL 1005 is based on the same target software source code and share the same simulation models that makes it very suitable for demanding grid code applications.

Included in the package is CMT1000, the tool for focused and fast commissioning.

UNITROL® 1000 Flex Systems

UNITROL® 1000 FLEX Systems are prepackaged solutions for applications requiring single or dual channel controllers. All systems are fitted with UNITROL® 1020 FULL as a standard device, leveraging the best solution for optimum price and flexible project adjustment constraints.
