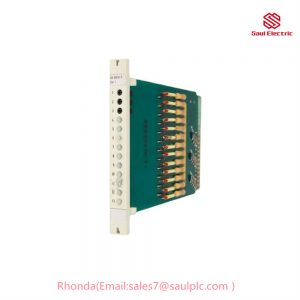

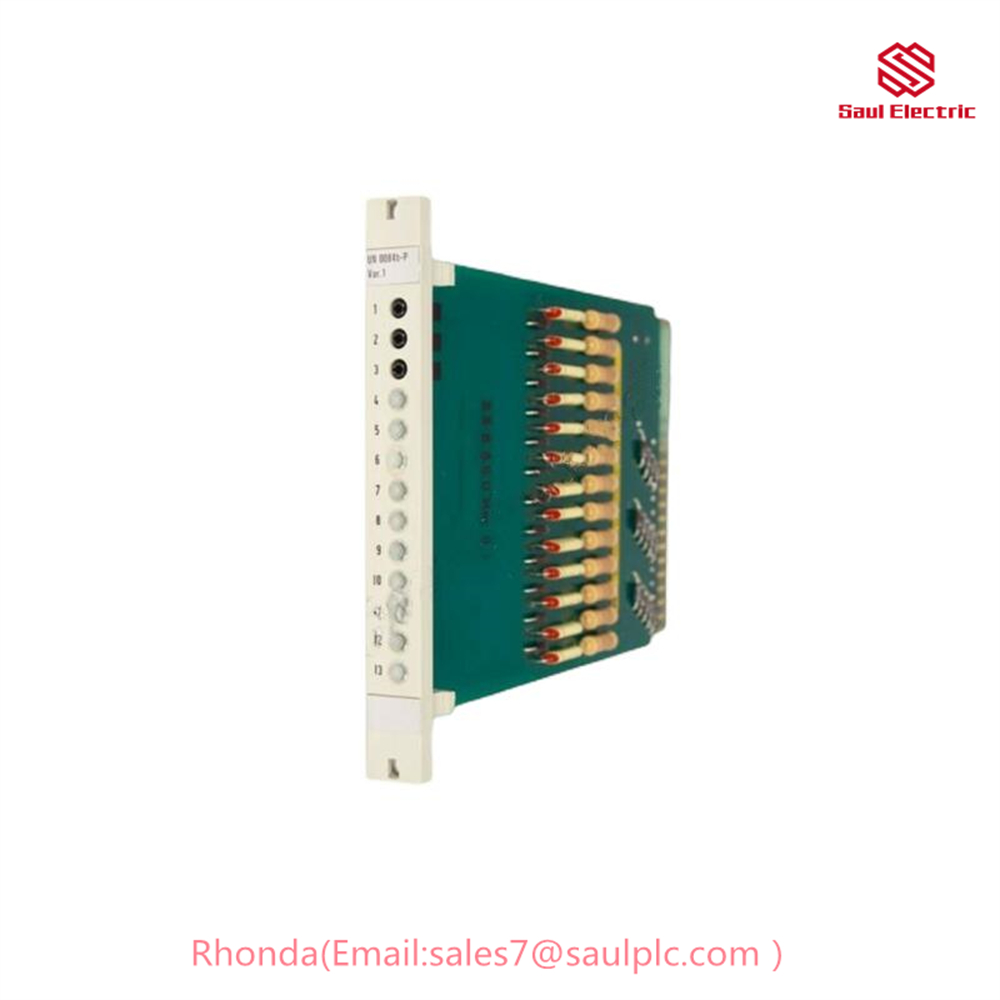

The UN 0084b-P Var.1 is a plug-in module that can be easily installed and replaced. It has a rated input voltage of 230 VAC and a rated output voltage of 24 VDC. The maximum output current is 10 A.
The UN 0084b-P Var.1 can be used in a variety of applications, including:
- Industrial automation
- Process control
- Building automation
- Power generation
- Transportation
Product parameters:
- Rated input voltage: 230 VAC
- Rated output voltage: 24 VDC
- Maximum output current: 10 A
- Dimensions: 100 x 50 x 25 mm
- Weight: 0.2 kg
Usage method:
- Insert the UN 0084b-P Var.1 module into the corresponding slot in the UNITROL system.
- Connect the AC power supply to the input terminals of the module.
- Connect the DC load to the output terminals of the module.
Product application:
The UN 0084b-P Var.1 diode module is used to convert AC power to DC power for use by the other modules in the UNITROL series of process control systems. It is a plug-in module that can be easily installed and replaced. The UN 0084b-P Var.1 can be used in a variety of applications, including industrial automation, process control, building automation, power generation, and transportation.
UNITROL® Excitation Systems
Excitation systems are a key component in many power generating units used by plant owners and operators to achieve reliability of operations, stability and fast transient response of their assets, as per grid requirements.
UNITROL® 1000 Series
The UNITROL® 1000 Series is ABB’s brushless excitation system for applications using synchronous machines ranging from 100kVA to 80MVA.
UNITROL® 1020
UNITROL 1020 is the voltage regulator intended for small and medium synchronous generators and industrial machines. It combines performance control and power circuits with a simple mechanical design provides high performance in a wide range of temperature and vibration conditions .
With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, this automatic voltage regulator (AVR) is manufactured using the most advanced microprocessor technology and IGBT semiconductors allowing current output up to 20 ADC for continuous operation.
UNITROL® 1010
UNITROL® 1010 is the Indirect Excitation System for small and medium synchronous generators and industrial machines. Its advanced microprocessor technology and IGBT semiconductors allow for current output up to 10 ADC for continuous operation.
With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, UNITROL 1010 provides high performance in a wide range of temperature and vibration conditions.
UNITROL® 1005
UNITROL 1005 is the smaller component of the family designed for low-end excitation application with maximum excitation current up to 5 ADC.
Like all UNITROL1000 products, UNITROL 1005 is based on the same target software source code and share the same simulation models that makes it very suitable for demanding grid code applications.
Included in the package is CMT1000, the tool for focused and fast commissioning.
UNITROL® 1000 Flex Systems
UNITROL® 1000 FLEX Systems are prepackaged solutions for applications requiring single or dual channel controllers. All systems are fitted with UNITROL® 1020 FULL as a standard device, leveraging the best solution for optimum price and flexible project adjustment constraints.
