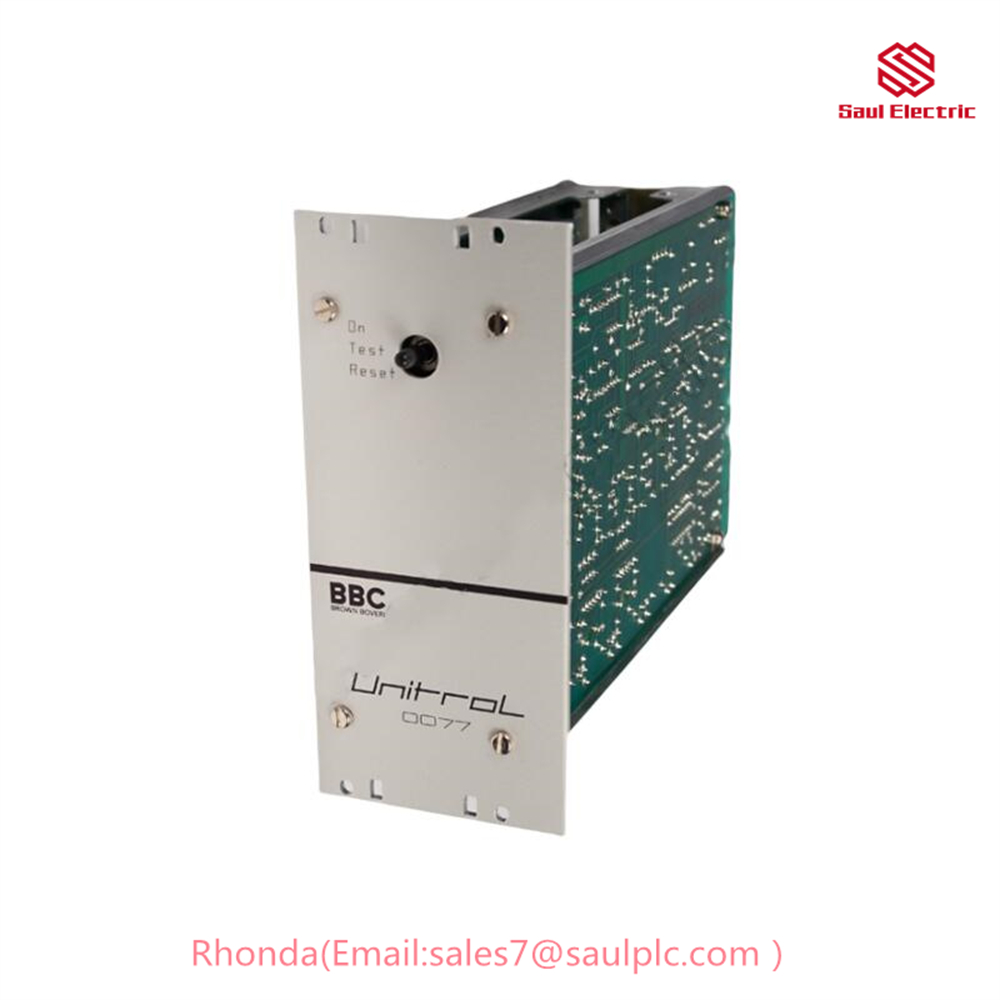

ABB UNITROL UN 0077 a-P V .1 (HEIR 318418 R1, HEIR318418R0001) Stand-alone, single-phase, variable frequency drive (VFD)-Saul Electric

Product Description

The ABB UNITROL UN 0077 a-P V .1 is a stand-alone, single-phase, variable frequency drive (VFD) that is designed for use with a variety of industrial applications. It is a compact and easy-to-use unit that offers a wide range of features, including:

• Speed control: The UN 0077 can be used to control the speed of a variety of motors, including induction motors, permanent magnet motors, and synchronous motors.
• Torque control: The UN 0077 can also be used to control the torque of a motor, which is useful for applications where precise control of the motor’s output is required.
• Energy efficiency: The UN 0077 is designed to be energy efficient, which can help to reduce operating costs.
• Reliability: The UN 0077 is a reliable unit that is built to withstand the rigors of industrial use.

Product Parameters

The following table shows some of the key product parameters for the ABB UNITROL UN 0077 a-P V .1:

Usage Method

The ABB UNITROL UN 0077 a-P V .1 is a relatively easy-to-use unit. The following steps provide a general overview of how to use it:

1. Connect the input and output power terminals to the VFD.
2. Connect the motor to the VFD.
3. Set the desired speed and torque parameters on the VFD.
4. Start the motor by pressing the start button on the VFD.

Product Applications

The ABB UNITROL UN 0077 a-P V .1 is a versatile unit that can be used in a variety of industrial applications. Some typical applications include:

• Conveyor belts
• Fans and blowers
• Pumps
• Compressors
• Machine tools
• Textile machinery

Safety Precautions

When using the ABB UNITROL UN 0077 a-P V .1, it is important to follow the safety precautions outlined in the user manual. Some of the key safety precautions include:

• Always disconnect the power supply to the VFD before making any connections.
• Make sure that all connections are properly tightened before powering on the VFD.
• Do not operate the VFD in a wet or humid environment.
• Keep the VFD away from flammable materials.

Conclusion

The ABB UNITROL UN 0077 a-P V .1 is a versatile and reliable VFD that can be used in a variety of industrial applications. It is a relatively easy-to-use unit, but it is important to follow the safety precautions outlined in the user manual.

UNITROL® Excitation Systems

Excitation systems are a key component in many power generating units used by plant owners and operators to achieve reliability of operations, stability and fast transient response of their assets, as per grid requirements.

UNITROL® 1000 Series

The UNITROL® 1000 Series is ABB’s brushless excitation system for applications using synchronous machines ranging from 100kVA to 80MVA.

UNITROL® 1020

UNITROL 1020 is the voltage regulator intended for small and medium synchronous generators and industrial machines. It combines performance control and power circuits with a simple mechanical design provides high performance in a wide range of temperature and vibration conditions .

With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, this automatic voltage regulator (AVR) is manufactured using the most advanced microprocessor technology and IGBT semiconductors allowing current output up to 20 ADC for continuous operation.

UNITROL® 1010

UNITROL® 1010 is the Indirect Excitation System for small and medium synchronous generators and industrial machines. Its advanced microprocessor technology and IGBT semiconductors allow for current output up to 10 ADC for continuous operation.

With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, UNITROL 1010 provides high performance in a wide range of temperature and vibration conditions.

UNITROL® 1005

UNITROL 1005 is the smaller component of the family designed for low-end excitation application with maximum excitation current up to 5 ADC.
Like all UNITROL1000 products, UNITROL 1005 is based on the same target software source code and share the same simulation models that makes it very suitable for demanding grid code applications.

Included in the package is CMT1000, the tool for focused and fast commissioning.

UNITROL® 1000 Flex Systems

UNITROL® 1000 FLEX Systems are prepackaged solutions for applications requiring single or dual channel controllers. All systems are fitted with UNITROL® 1020 FULL as a standard device, leveraging the best solution for optimum price and flexible project adjustment constraints.
