Product Description

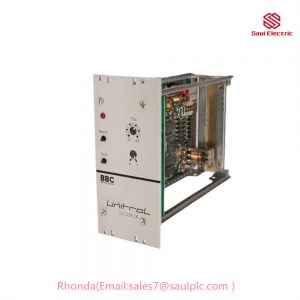

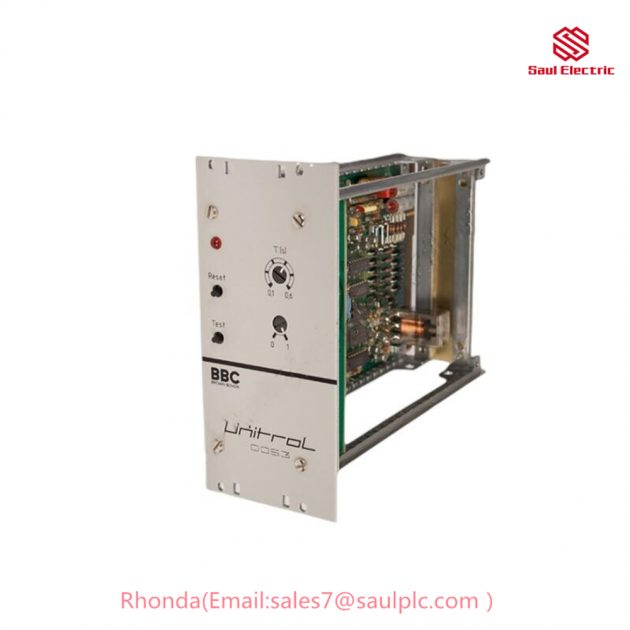

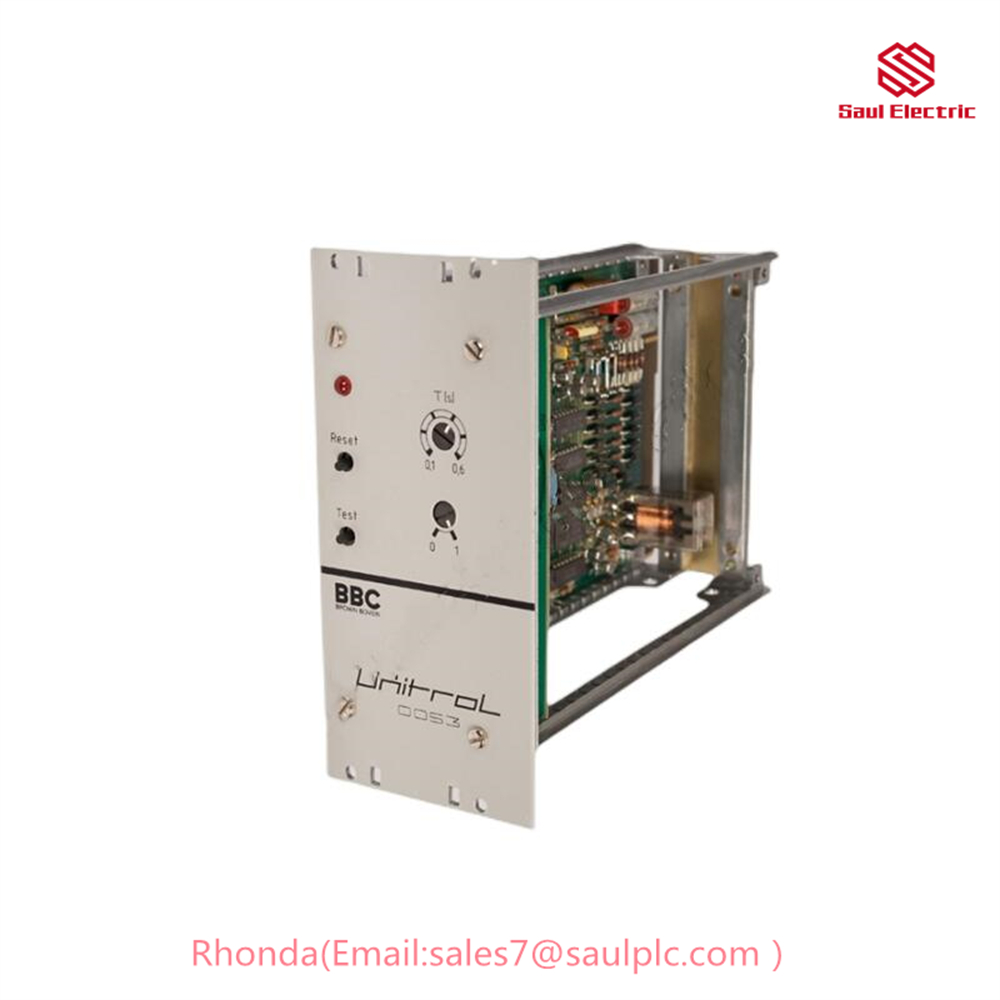

The ABB UNITROL UN 0053c-P V1 is a Pulse Monitoring Module. It is part of the ABB UNITROL family of modules, which are used to control and monitor industrial processes. The UN 0053c-P V1 is used to monitor the frequency of a pulse train. It can be used to monitor the speed of a motor, the flow rate of a liquid, or the number of pulses produced by a sensor.
Product Parameters
- Power Supply Voltage: 24 VDC
- Input Pulse Frequency: 0 to 100 kHz
- Output Pulse Frequency: 0 to 100 kHz
- Accuracy: ±0.1%
- Operating Temperature: -25 to 70 °C
- Dimensions: 45 x 22.5 x 100 mm
Usage Method
To use the UN 0053c-P V1 Pulse Monitoring Module, connect the input pulse train to the input terminals of the module. Connect the output pulse train to the output terminals of the module. Connect the power supply to the power supply terminals of the module.
The module will monitor the frequency of the input pulse train and generate an output pulse train with the same frequency. The accuracy of the output pulse train is ±0.1%.
Product Application
The UN 0053c-P V1 Pulse Monitoring Module can be used in a variety of industrial applications, such as:
- Speed control of motors
- Flow measurement of liquids and gases
- Counting of pulses from sensors
Examples of Product Application
- The UN 0053c-P V1 Pulse Monitoring Module can be used to monitor the speed of a motor in a conveyor belt system. The output of the module can be used to control the speed of the conveyor belt.
- The UN 0053c-P V1 Pulse Monitoring Module can be used to measure the flow rate of a liquid in a pipe. The output of the module can be used to control a valve to adjust the flow rate of the liquid.
- The UN 0053c-P V1 Pulse Monitoring Module can be used to count the number of pulses produced by a sensor. The output of the module can be used to display the number of pulses on a counter or to send a signal to a control system.
UNITROL® Excitation Systems
Excitation systems are a key component in many power generating units used by plant owners and operators to achieve reliability of operations, stability and fast transient response of their assets, as per grid requirements.
UNITROL® 1000 Series
The UNITROL® 1000 Series is ABB’s brushless excitation system for applications using synchronous machines ranging from 100kVA to 80MVA.
UNITROL® 1020

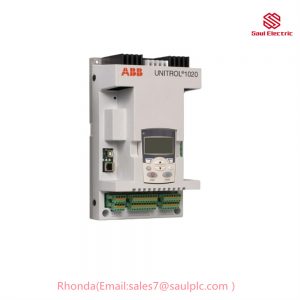

UNITROL 1020 is the voltage regulator intended for small and medium synchronous generators and industrial machines. It combines performance control and power circuits with a simple mechanical design provides high performance in a wide range of temperature and vibration conditions .
With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, this automatic voltage regulator (AVR) is manufactured using the most advanced microprocessor technology and IGBT semiconductors allowing current output up to 20 ADC for continuous operation.
UNITROL® 1010
UNITROL® 1010 is the Indirect Excitation System for small and medium synchronous generators and industrial machines. Its advanced microprocessor technology and IGBT semiconductors allow for current output up to 10 ADC for continuous operation.
With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, UNITROL 1010 provides high performance in a wide range of temperature and vibration conditions.
UNITROL® 1005
UNITROL 1005 is the smaller component of the family designed for low-end excitation application with maximum excitation current up to 5 ADC.
Like all UNITROL1000 products, UNITROL 1005 is based on the same target software source code and share the same simulation models that makes it very suitable for demanding grid code applications.
Included in the package is CMT1000, the tool for focused and fast commissioning.
UNITROL® 1000 Flex Systems
UNITROL® 1000 FLEX Systems are prepackaged solutions for applications requiring single or dual channel controllers. All systems are fitted with UNITROL® 1020 FULL as a standard device, leveraging the best solution for optimum price and flexible project adjustment constraints.
