Product Description

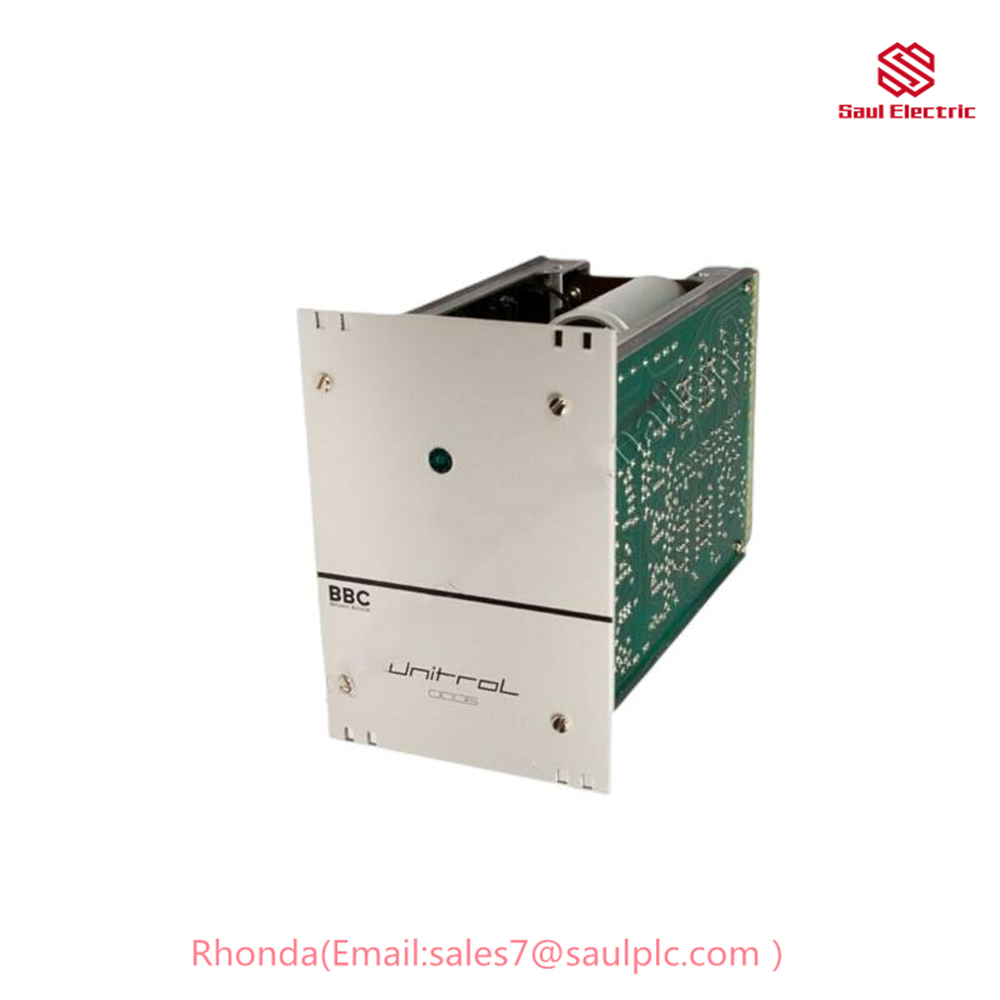

The ABB UNITROL UN 0006a-P V.1 is a voltage regulator module. It is used to regulate the voltage of an electrical system to a desired level. The module is typically used in industrial and commercial applications, such as power plants, factories, and office buildings.
Product Parameters
The ABB UNITROL UN 0006a-P V.1 has the following parameters:
- Input voltage range: 190-250 VAC
- Output voltage range: 190-250 VAC
- Output current: 10 A
- Regulation accuracy: +/- 1%
- Operating temperature range: 0-55 degrees Celsius
Usage Method
The ABB UNITROL UN 0006a-P V.1 is connected to the input and output of the electrical system that needs to be regulated. The module is typically mounted in a control panel or enclosure.
The module is programmed using a software tool. The software allows the user to set the desired output voltage and other parameters.
Product Application
The ABB UNITROL UN 0006a-P V.1 is used in a variety of applications, including:
- Power plants
- Factories
- Office buildings
- Hospitals
- Data centers
- Other critical infrastructure facilities
Examples
The ABB UNITROL UN 0006a-P V.1 can be used to regulate the voltage of:
- Generators
- Transformers
- Motors
- UPS systems
- Lighting systems
- HVAC systems
- Other electrical equipment
Benefits
The ABB UNITROL UN 0006a-P V.1 offers a number of benefits, including:
- High accuracy regulation
- Wide operating temperature range
- Easy to program
- Reliable and durable
UNITROL® Excitation Systems
Excitation systems are a key component in many power generating units used by plant owners and operators to achieve reliability of operations, stability and fast transient response of their assets, as per grid requirements.
UNITROL® 1000 Series
The UNITROL® 1000 Series is ABB’s brushless excitation system for applications using synchronous machines ranging from 100kVA to 80MVA.
UNITROL® 1020
UNITROL 1020 is the voltage regulator intended for small and medium synchronous generators and industrial machines. It combines performance control and power circuits with a simple mechanical design provides high performance in a wide range of temperature and vibration conditions .
With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, this automatic voltage regulator (AVR) is manufactured using the most advanced microprocessor technology and IGBT semiconductors allowing current output up to 20 ADC for continuous operation.
UNITROL® 1010
UNITROL® 1010 is the Indirect Excitation System for small and medium synchronous generators and industrial machines. Its advanced microprocessor technology and IGBT semiconductors allow for current output up to 10 ADC for continuous operation.
With built-in dual channel support, advanced load sharing between machines operating in parallel, rotating diode monitoring, automatic synchronizing and several integrated communication options, UNITROL 1010 provides high performance in a wide range of temperature and vibration conditions.
UNITROL® 1005
UNITROL 1005 is the smaller component of the family designed for low-end excitation application with maximum excitation current up to 5 ADC.
Like all UNITROL1000 products, UNITROL 1005 is based on the same target software source code and share the same simulation models that makes it very suitable for demanding grid code applications.
Included in the package is CMT1000, the tool for focused and fast commissioning.
UNITROL® 1000 Flex Systems
UNITROL® 1000 FLEX Systems are prepackaged solutions for applications requiring single or dual channel controllers. All systems are fitted with UNITROL® 1020 FULL as a standard device, leveraging the best solution for optimum price and flexible project adjustment constraints.
