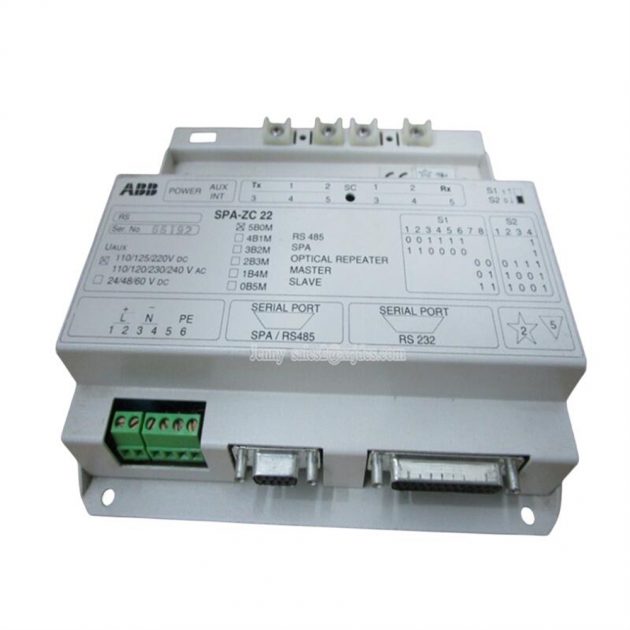

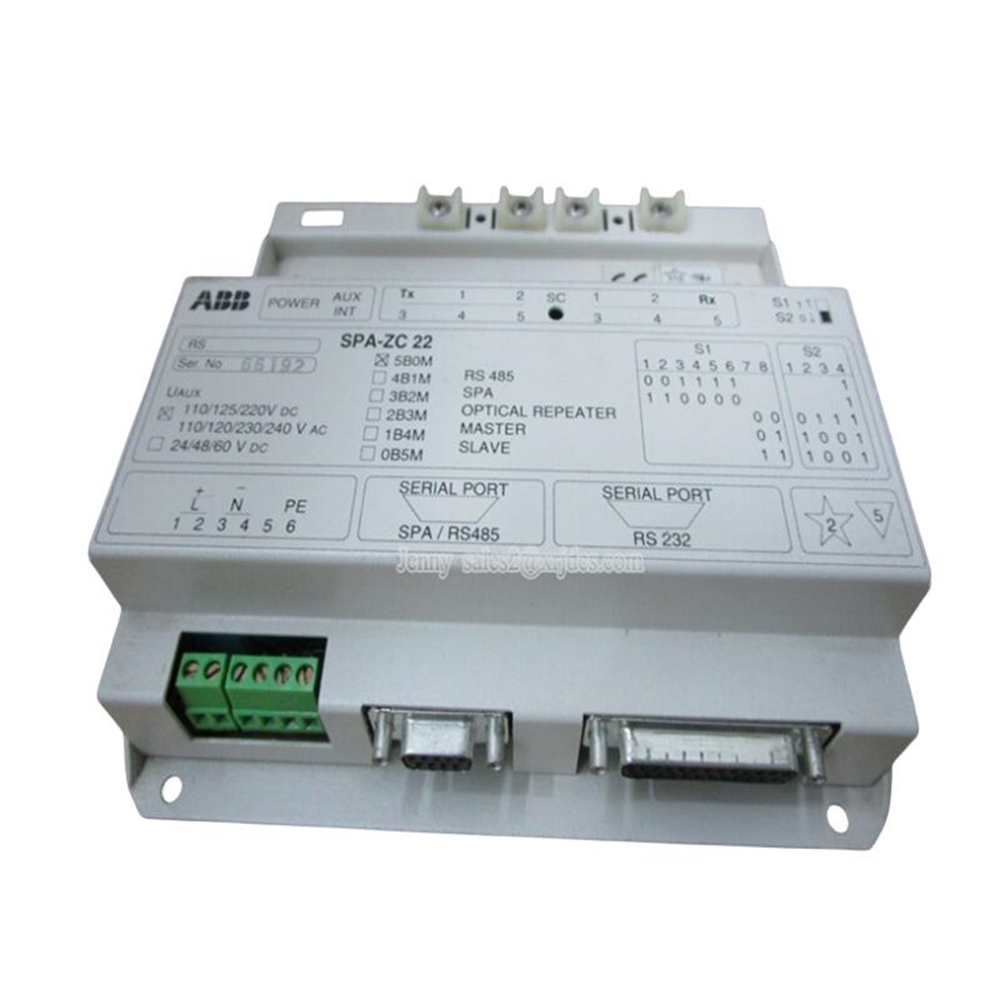

The ABB SPA-ZC22 is a bus connection module that converts the optical signals of the SPA bus to RS 485, SPA (+5 V), or RS 232 signals and vice versa. It is used to connect SPACOM devices to the SPA bus.
The SPA-ZC22 is provided with the following:
- One 9-pin D-type subminiature connector for RS 485 or SPA connections
- One 25-pin D-type connector (to order)
- Two or five opto-connector couples for fiber-optic cables
The SPA-ZC22 can be mounted on a DIN rail or directly on a wall.
Here are some additional details about the SPA-ZC22:
- Power supply: 24 V DC
- Power consumption: 1.5 W
- Operating temperature: -25 to +70°C
- Storage temperature: -40 to +85°C
- Humidity: 95% non-condensing
