ABB PP865 3BSE042236R1 15-inch operator panel-Saul Electric

Product description

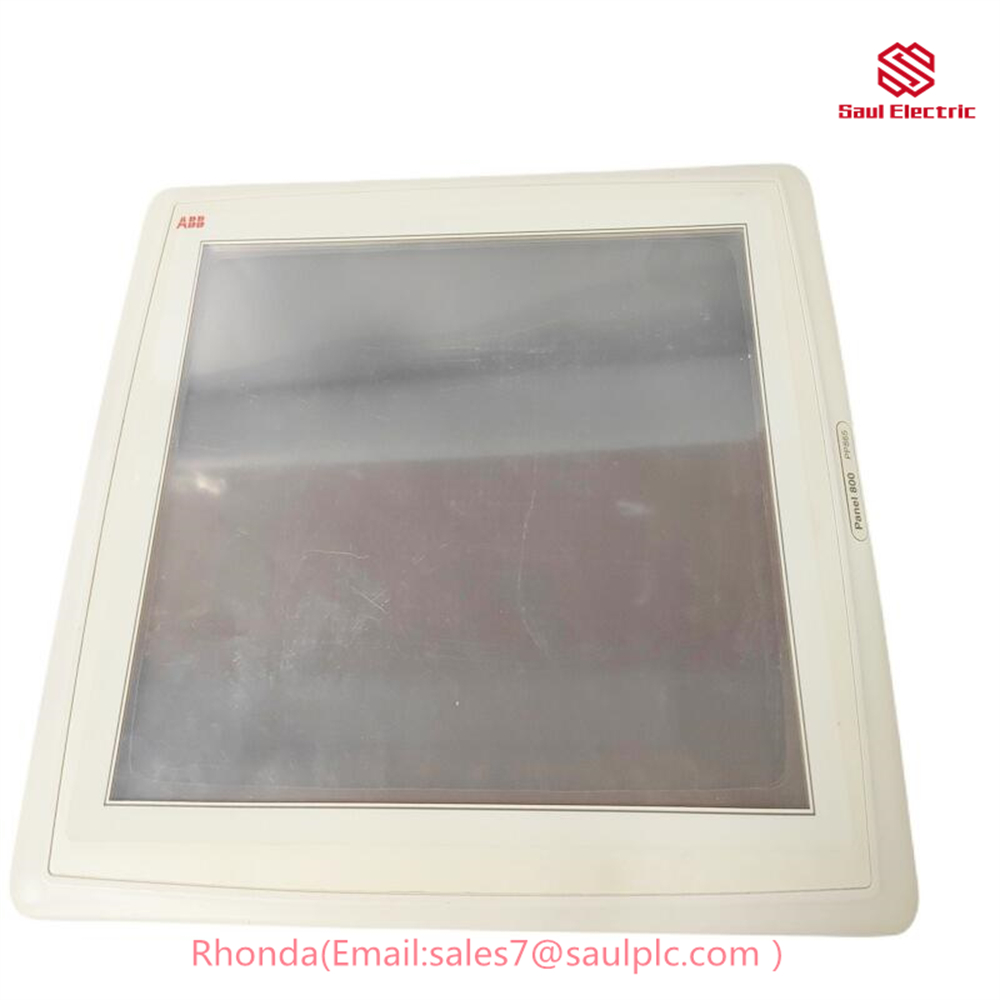

The ABB PP865 is a 15-inch operator panel with a touch screen display. It is part of the ABB Panel 800 product line, which is designed for use in industrial applications. The PP865 is a powerful and flexible operator panel that can be used for a variety of tasks, including machine control, process monitoring, and data visualization.

Product parameters

• Display size: 15 inches
• Display type: Touch screen
• Resolution: 1024 x 768 pixels
• Processor: Intel Celeron J1900
• Memory: 2 GB RAM
• Storage: 16 GB SSD
• Operating system: Windows 10 IoT Enterprise
• Communication ports: 2 x Ethernet, 2 x USB 3.0, 2 x USB 2.0, 1 x HDMI, 1 x RS-232

Usage method

The PP865 can be programmed using the ABB PanelBuilder software. PanelBuilder is a powerful and easy-to-use software tool that allows users to create custom operator panels for their specific needs.

To program the PP865, users first need to create a new project in PanelBuilder. Once the project is created, users can add objects to the panel, such as buttons, text boxes, and graphs. Users can also configure the panel to communicate with other devices, such as PLCs and sensors.

Once the panel is programmed, it can be downloaded to the PP865 using the PanelBuilder software. The PP865 can then be installed in the desired location and used to control and monitor machines and processes.

Product application

The PP865 can be used in a variety of industrial applications, including:

• Machine control
• Process monitoring
• Data visualization
• SCADA systems
• HMI systems
• Building automation
• Food and beverage processing
• Pharmaceutical manufacturing
• Metalworking
• Plastics processing
• And more

Example applications

• The PP865 can be used to control a machine that assembles electronic components. The operator panel would be used to start and stop the machine, monitor the machine’s status, and make adjustments to the machine’s settings.
• The PP865 can be used to monitor a process in a chemical plant. The operator panel would be used to display the current values of process variables, such as temperature, pressure, and flow rate. The operator panel would also be used to alarm operators if any of the process variables exceed their setpoints.
• The PP865 can be used to visualize data from a SCADA system. The operator panel would be used to display real-time data from sensors and other devices. The operator panel could also be used to create historical trends and charts.

I hope this information is helpful. Please let me know if you have any other questions.

We can respond globally and deliver quickly.

A strong supply network ensures that when manufacturers’ equipment malfunctions or stops

Able to respond promptly and provide assistance

Provide multilingual services

Original accessories from various brands

One stop procurement for enterprise customers

Original parts from various brands, including leading manufacturers, with reliable quality and a complete range.

Panel 800
Range of user-friendly, intuitive and ergonomic operator panels for process automation systems
The Panel 800 version 6.2 family comprises of user-friendly, intuitive and ergonomic operator panels that combine slim, space-saving dimensions with a comprehensive range of advanced functions. Panel 800 Version 6 comprises of Standard, black and rugged panels that boast of more interfacing options, speed and brilliant displays.

Designed to make process automation easy, all 11 panels are equipped with advanced functionality for process and equipment control, maneuvered by touching the LCD display. Combined with market-leading performance and stunning graphical ability, Panel 800 erodes the line between ordinary Operator Panels and PC-based HMIs. All panels are configured using ABB’s Panel Builder tool that contains all basic functions needed in an application. The functions are tested and developed with customer needs and preferences in focus.

Easy to use
A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with familiar Microsoft® Windows® environment along with multiple language support results in remarkably quick, easy and efficient engineering.

State-of-the-arts graphics
Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface navigation and control.

Robust and reliable technology
Panel 800 is constructed in a strong yet lightweight die-cast, powder-coated aluminum housing. IP65/IP66 front casing withstands wet, dusty and demanding environments. Operating temperatures ranging between -30oC to 70oC with maximum 95% humidity.

Truly open platform
Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more.
