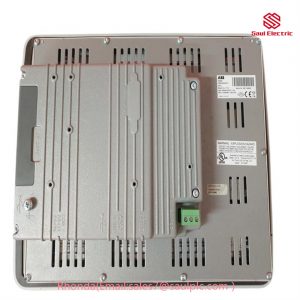

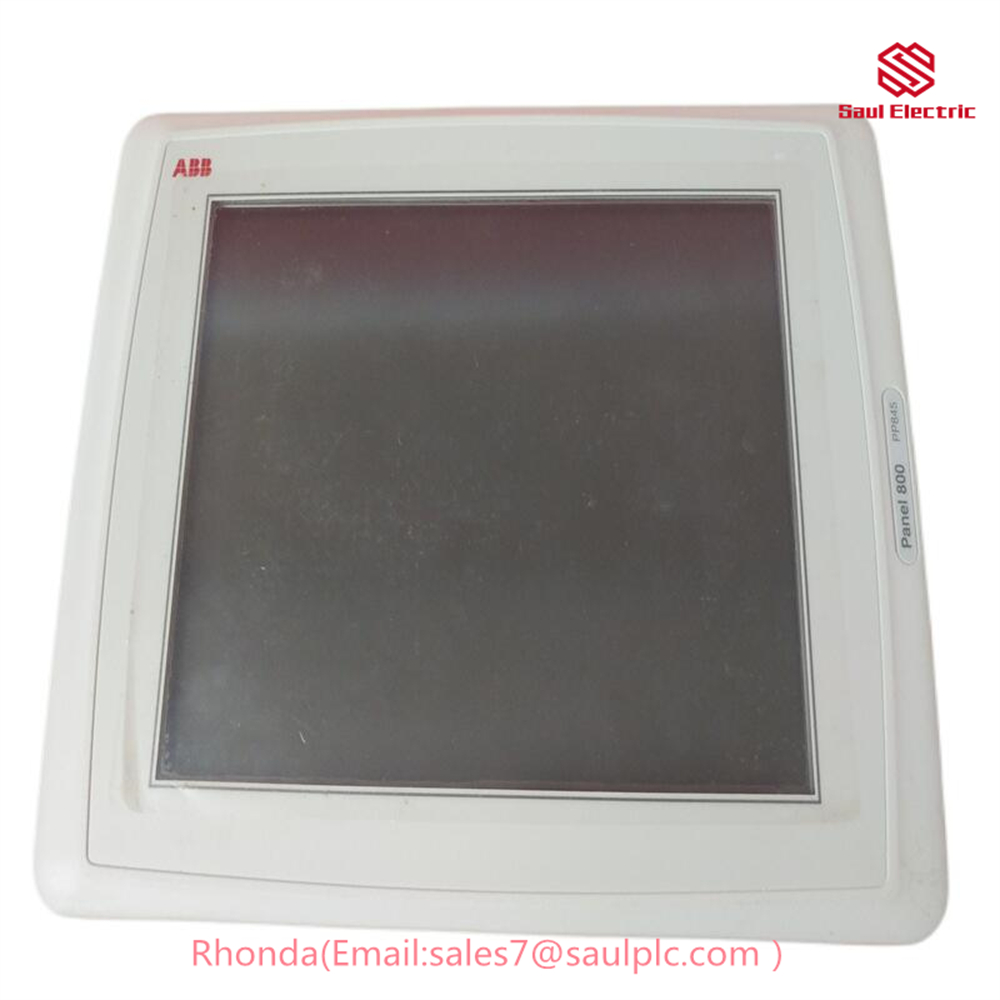

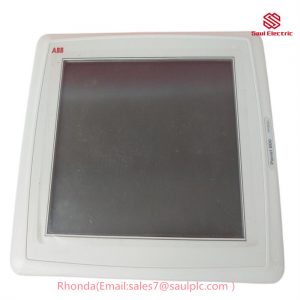

ABB PP845 3BSE042235R1 10.4-inch color touch screen operator panel-Saul Electric

Product Description

The ABB PP845 is a 10.4-inch color touch screen operator panel that is part of the ABB Panel 800 series. It is a rugged and reliable HMI device that is designed for use in demanding industrial environments. The PP845 is powered by a 1 GHz Cortex-A9 processor and runs Windows Embedded CE 7.0. It features a high-resolution display with a wide viewing angle and a resistive touch screen that is easy to use even with gloves on.

Product Parameters

• Display size: 10.4 inches
• Display type: Color touch screen
• Resolution: 800×600 pixels
• Processor: 1 GHz Cortex-A9
• Operating system: Windows Embedded CE 7.0
• Memory: 512 MB RAM, 4 GB flash
• Communication ports: 1x Ethernet, 1x RS-232, 1x USB 2.0
• Protection class: IP65/IP66 (front)
• Operating temperature range: -30°C to 70°C
• Humidity: 95% non-condensing

Usage Method

The ABB PP845 can be used to monitor and control a wide range of industrial processes. It can be used to display data from sensors and transducers, to control actuators and valves, and to generate alarms and reports. The PP845 can be programmed using ABB’s PanelBuilder software, which provides a user-friendly interface for creating and editing graphical user interfaces.

Product Application

The ABB PP845 is typically used in the following industrial applications:

• Process control
• Machine automation
• Building automation
• Power generation and distribution
• Oil and gas
• Mining
• Food and beverage
• Pharmaceutical

Examples of Usage

• The PP845 can be used to monitor and control the temperature and pressure of a chemical reactor.
• The PP845 can be used to control the operation of a robotic assembly line.
• The PP845 can be used to monitor and control the energy consumption of a building.
• The PP845 can be used to monitor and control the power grid.
• The PP845 can be used to monitor and control the flow of oil and gas through a pipeline.
• The PP845 can be used to monitor and control the mining process.
• The PP845 can be used to monitor and control the food and beverage production process.
• The PP845 can be used to monitor and control the pharmaceutical production process.

We can respond globally and deliver quickly.

A strong supply network ensures that when manufacturers’ equipment malfunctions or stops

Able to respond promptly and provide assistance

Provide multilingual services

Original accessories from various brands

One stop procurement for enterprise customers

Original parts from various brands, including leading manufacturers, with reliable quality and a complete range.

Panel 800
Range of user-friendly, intuitive and ergonomic operator panels for process automation systems
The Panel 800 version 6.2 family comprises of user-friendly, intuitive and ergonomic operator panels that combine slim, space-saving dimensions with a comprehensive range of advanced functions. Panel 800 Version 6 comprises of Standard, black and rugged panels that boast of more interfacing options, speed and brilliant displays.

Designed to make process automation easy, all 11 panels are equipped with advanced functionality for process and equipment control, maneuvered by touching the LCD display. Combined with market-leading performance and stunning graphical ability, Panel 800 erodes the line between ordinary Operator Panels and PC-based HMIs. All panels are configured using ABB’s Panel Builder tool that contains all basic functions needed in an application. The functions are tested and developed with customer needs and preferences in focus.

Easy to use
A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with familiar Microsoft® Windows® environment along with multiple language support results in remarkably quick, easy and efficient engineering.

State-of-the-arts graphics
Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface navigation and control.

Robust and reliable technology
Panel 800 is constructed in a strong yet lightweight die-cast, powder-coated aluminum housing. IP65/IP66 front casing withstands wet, dusty and demanding environments. Operating temperatures ranging between -30oC to 70oC with maximum 95% humidity.

Truly open platform
Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more.
