Product Description

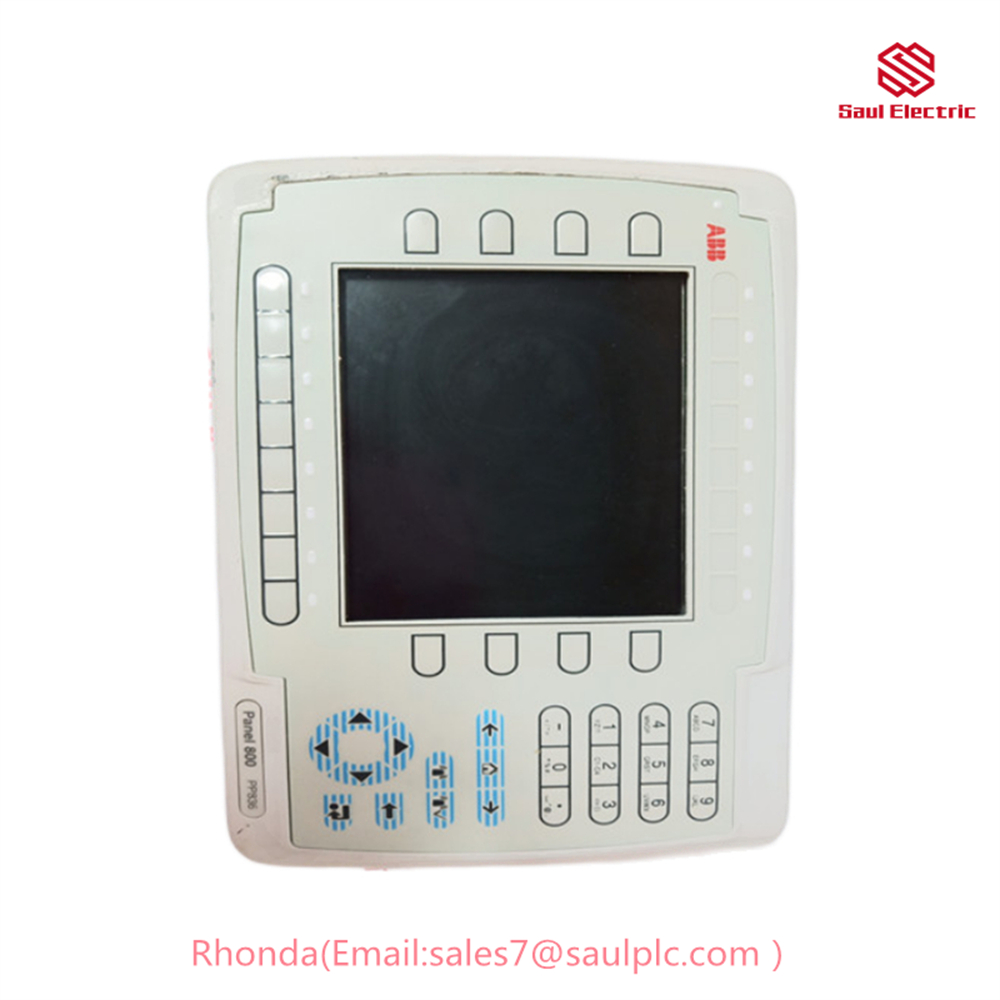

The ABB PP836 is a 6.5-inch color TFT operator panel with a function key panel. It is part of ABB’s Panel 800 family of operator panels, which are designed for use in industrial automation applications.
The PP836 has a resolution of 640×480 pixels and can display both text and graphics. It has a built-in Ethernet port for communication with other devices, such as PLCs, HMIs, and PCs.
The PP836 is also equipped with a number of other features, including:
- A built-in real-time clock
- A battery backup for maintaining data in the event of a power failure
- A password protection system to prevent unauthorized access
ABB PP836 Product Parameters
- Display size: 6.5 inch
- Display type: TFT color TFT
- Display resolution: 640×480 pixels
- Communication: Ethernet
- Power supply: 24 VDC
- Operating temperature: 0 to 55 degrees Celsius
- Storage temperature: -20 to 70 degrees Celsius
- Dimensions: 180 x 72 x 324 mm
- Weight: 1.3 kg
ABB PP836 Usage Method
The ABB PP836 can be used to monitor and control a wide variety of industrial processes. It is typically used to display process data, such as temperature, pressure, and flow rate. It can also be used to control process equipment, such as motors, valves, and pumps.
To use the PP836, it must first be programmed with the desired application. This can be done using a variety of programming tools, such as ABB’s PanelBuilder 800 software.
Once the PP836 is programmed, it can be connected to other devices, such as PLCs, HMIs, and PCs. The PP836 can then be used to monitor and control the process.
ABB PP836 Product Applications
The ABB PP836 can be used in a wide variety of industrial applications, including:
- Food and beverage processing
- Pharmaceutical manufacturing
- Chemical processing
- Water and wastewater treatment
- Power generation and distribution
- Oil and gas production
- Mining and metals processing
- Manufacturing
- Robotics and automation
Example of ABB PP836 Usage
The ABB PP836 can be used to monitor and control a water pumping system. The PP836 can be programmed to display the water pressure, flow rate, and temperature. It can also be programmed to control the water pumps to maintain the desired pressure and flow rate.
The PP836 can be connected to the water pumps and other devices, such as pressure sensors and flow meters. The PP836 can then be used to monitor and control the water pumping system.
The ABB PP836 is a powerful and versatile operator panel that can be used in a wide variety of industrial applications. It is easy to use and program, and it offers a number of features that make it ideal for industrial automation applications.
We can respond globally and deliver quickly.
A strong supply network ensures that when manufacturers’ equipment malfunctions or stops
Able to respond promptly and provide assistance
Provide multilingual services
Original accessories from various brands
One stop procurement for enterprise customers
Original parts from various brands, including leading manufacturers, with reliable quality and a complete range.
Panel 800
Range of user-friendly, intuitive and ergonomic operator panels for process automation systems
The Panel 800 version 6.2 family comprises of user-friendly, intuitive and ergonomic operator panels that combine slim, space-saving dimensions with a comprehensive range of advanced functions. Panel 800 Version 6 comprises of Standard, black and rugged panels that boast of more interfacing options, speed and brilliant displays.
Designed to make process automation easy, all 11 panels are equipped with advanced functionality for process and equipment control, maneuvered by touching the LCD display. Combined with market-leading performance and stunning graphical ability, Panel 800 erodes the line between ordinary Operator Panels and PC-based HMIs. All panels are configured using ABB’s Panel Builder tool that contains all basic functions needed in an application. The functions are tested and developed with customer needs and preferences in focus.
Easy to use
A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with familiar Microsoft® Windows® environment along with multiple language support results in remarkably quick, easy and efficient engineering.
State-of-the-arts graphics
Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface navigation and control.
Robust and reliable technology
Panel 800 is constructed in a strong yet lightweight die-cast, powder-coated aluminum housing. IP65/IP66 front casing withstands wet, dusty and demanding environments. Operating temperatures ranging between -30oC to 70oC with maximum 95% humidity.
Truly open platform
Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more.
