Product description

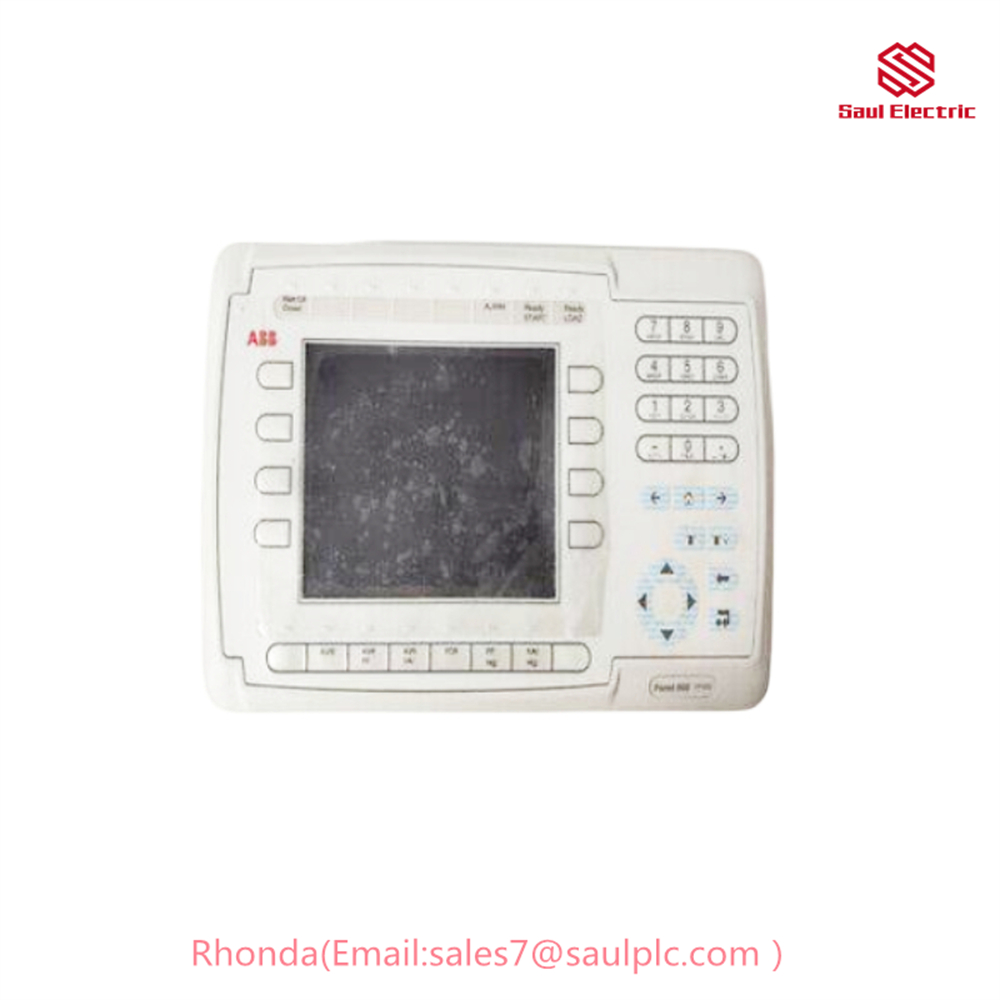

The ABB PP826 is a function key panel that can be used to control a variety of industrial devices. It has a membrane keypad with 20 function keys, and an LED display that can show the current state of the device. The PP826 can be connected to a variety of devices using a variety of communication protocols, including CAN, Profibus DP, and Modbus RTU.

Product parameters

• Power supply: 24 VDC
• Power consumption: 10 W
• Communication protocols: CAN, Profibus DP, Modbus RTU
• Operating temperature: 0 to 55 °C
• Storage temperature: -25 to 70 °C
• Dimensions: 144 x 96 x 35 mm

Usage method

The PP826 is used to control a variety of industrial devices by sending and receiving commands over a communication protocol. The specific usage method will vary depending on the device that is being controlled. However, the general usage method is as follows:

1. Connect the PP826 to the device that you want to control.
2. Configure the PP826 to use the correct communication protocol.
3. Send commands to the device using the PP826.
4. Receive responses from the device and display them on the LED display.

Product application

The PP826 can be used to control a variety of industrial devices, including:

• Variable frequency drives
• Motor starters
• Soft starters
• Contactors
• Relays
• Valves
• Pumps

The PP826 is typically used in industrial applications where it is necessary to control multiple devices from a single location. Some examples of such applications include:

• Factory automation
• Process control
• Building automation
• Power generation and distribution
• Transportation

Examples of use cases

• The PP826 can be used to control a variable frequency drive to control the speed of a motor.
• The PP826 can be used to control a motor starter to start and stop a motor.
• The PP826 can be used to control a soft starter to reduce the inrush current when starting a motor.
• The PP826 can be used to control a contactor to switch a high-power load.
• The PP826 can be used to control a relay to switch a low-power load.
• The PP826 can be used to control a valve to regulate the flow of a fluid.
• The PP826 can be used to control a pump to start and stop the flow of a liquid.

Conclusion

The ABB PP826 is a versatile function key panel that can be used to control a variety of industrial devices. It is typically used in industrial applications where it is necessary to control multiple devices from a single location.

We can respond globally and deliver quickly.

A strong supply network ensures that when manufacturers’ equipment malfunctions or stops

Able to respond promptly and provide assistance

Provide multilingual services

Original accessories from various brands

One stop procurement for enterprise customers

Original parts from various brands, including leading manufacturers, with reliable quality and a complete range.

PP826 3BSE042244R1

PP825 3BSE042240R1

PP825A 3BSE042240R3

Panel 800
Range of user-friendly, intuitive and ergonomic operator panels for process automation systems
The Panel 800 version 6.2 family comprises of user-friendly, intuitive and ergonomic operator panels that combine slim, space-saving dimensions with a comprehensive range of advanced functions. Panel 800 Version 6 comprises of Standard, black and rugged panels that boast of more interfacing options, speed and brilliant displays.

Designed to make process automation easy, all 11 panels are equipped with advanced functionality for process and equipment control, maneuvered by touching the LCD display. Combined with market-leading performance and stunning graphical ability, Panel 800 erodes the line between ordinary Operator Panels and PC-based HMIs. All panels are configured using ABB’s Panel Builder tool that contains all basic functions needed in an application. The functions are tested and developed with customer needs and preferences in focus.

Easy to use
A fully deployable HMI with comprehensive and integrated templates and libraries for every conceivable process. The Panel Builder tool, with familiar Microsoft® Windows® environment along with multiple language support results in remarkably quick, easy and efficient engineering.

State-of-the-arts graphics
Vector-based, high-resolution graphics in TFL/LED display, with icon-based interface navigation and control.

Robust and reliable technology
Panel 800 is constructed in a strong yet lightweight die-cast, powder-coated aluminum housing. IP65/IP66 front casing withstands wet, dusty and demanding environments. Operating temperatures ranging between -30oC to 70oC with maximum 95% humidity.

Truly open platform
Built on open architecture and technologies that accompany the .NET framework, these panels are capable of multi-brand controller connectivity. A multitude of connection options are available for local communication, expansion, remote access and more.
