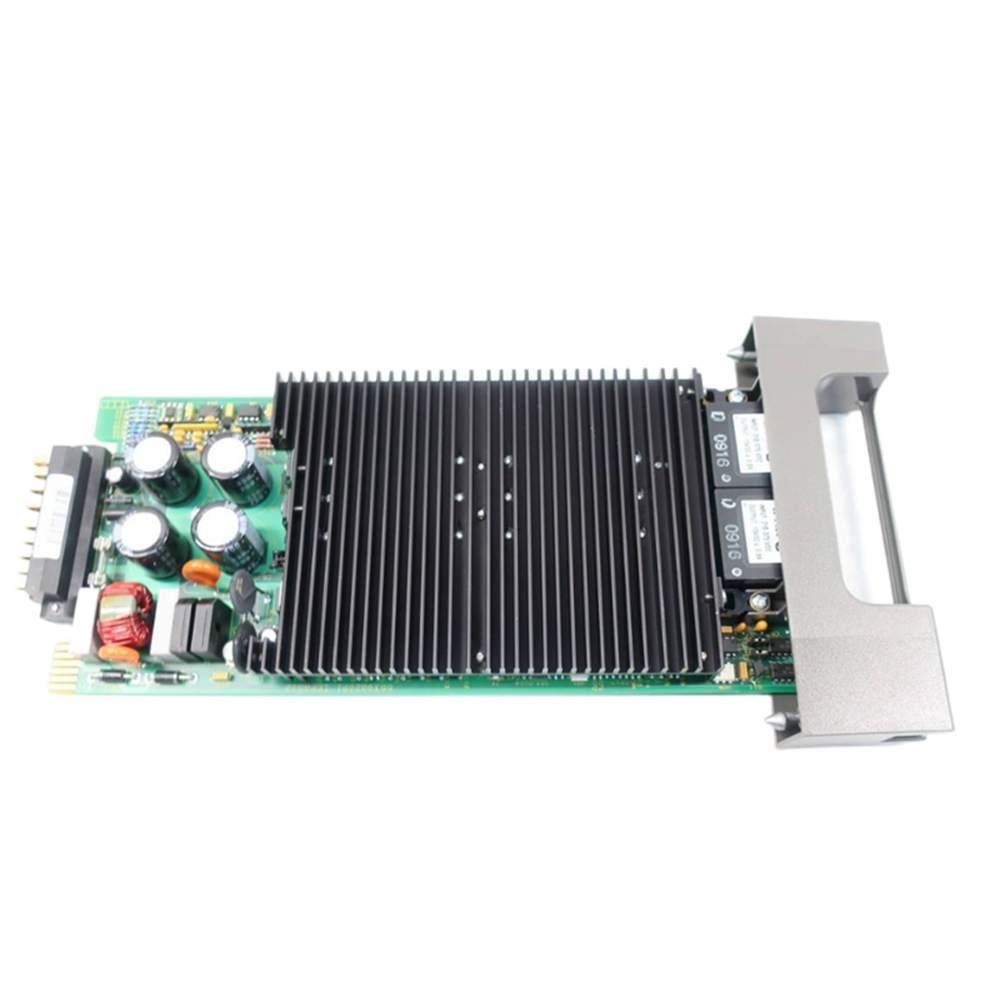

The ABB IEPAS02 is an AC system power supply that provides +5, +/-15, and 24 VDC power to Bailey INFI 90 systems. It is a modular unit that can be hot-swapped, and it has a variety of features that make it a reliable and versatile power solution.
Technical Specifications
- Input voltage: 120 or 240 VAC
- Input frequency: 47 to 63 Hz
- Input current: 3.0 A at 120 VAC, 1.7 A at 240 VAC
- Output voltage: +5, +/-15, and 24 VDC
- Output current: +5 VDC at 5 A, +/-15 VDC at 0.5 A, 24 VDC at 2 A
- Efficiency: 80%
- Power factor: 0.95
- Operating temperature: 0 to 55 degrees Celsius
- Storage temperature: -20 to 70 degrees Celsius
- Humidity: 5 to 95% non-condensing
- Dimensions: 10.6 inches x 5.5 inches x 4.2 inches
- Weight: 5.5 pounds
Features
- Hot-swappable
- Overvoltage protection
- Overcurrent protection
- Short-circuit protection
- Thermal protection
- EMI/RFI suppression
- UL/cUL listed
- CE marked
Applications
- Bailey INFI 90 systems
- Process control systems
- Industrial automation systems
- SCADA systems
- Telecommunications systems
If you are interested in our products, please feel free to contact me!
