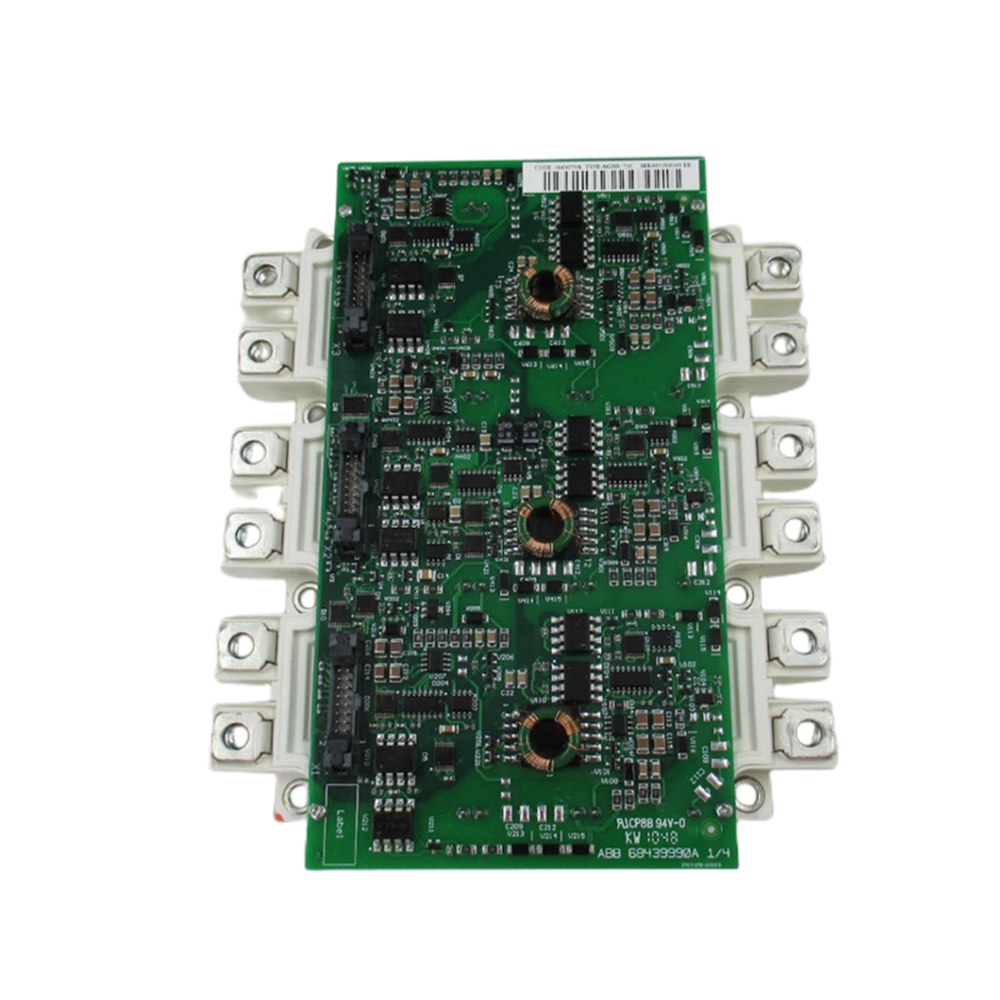

The ABB FS450R12KE3/AGDR-71C is an IGBT module that is part of the ABB ACS880 series of drives. It is a high-performance module that is designed for use in a variety of applications, including industrial automation, renewable energy, and marine propulsion.
The FS450R12KE3/AGDR-71C has a continuous current rating of 450 A and a peak current rating of 600 A. It has a nominal voltage rating of 1200 V and a maximum voltage rating of 1700 V. The module is also equipped with a number of features that make it suitable for use in demanding applications, such as:
- Integrated gate drivers
- Short-circuit protection
- Overtemperature protection
- Overvoltage protection
Here are some of the key specifications of the FS450R12KE3/AGDR-71C:
- Continuous current rating: 450 A
- Peak current rating: 600 A
- Nominal voltage rating: 1200 V
- Maximum voltage rating: 1700 V
- Switching frequency: 16 kHz
- Operating temperature range: -40 to +85 °C
- Storage temperature range: -40 to +125 °C
- Weight: 1.1 kg
- Dimensions: 150 x 120 x 40 mm
If you are interested in our products, please feel free to contact me!
