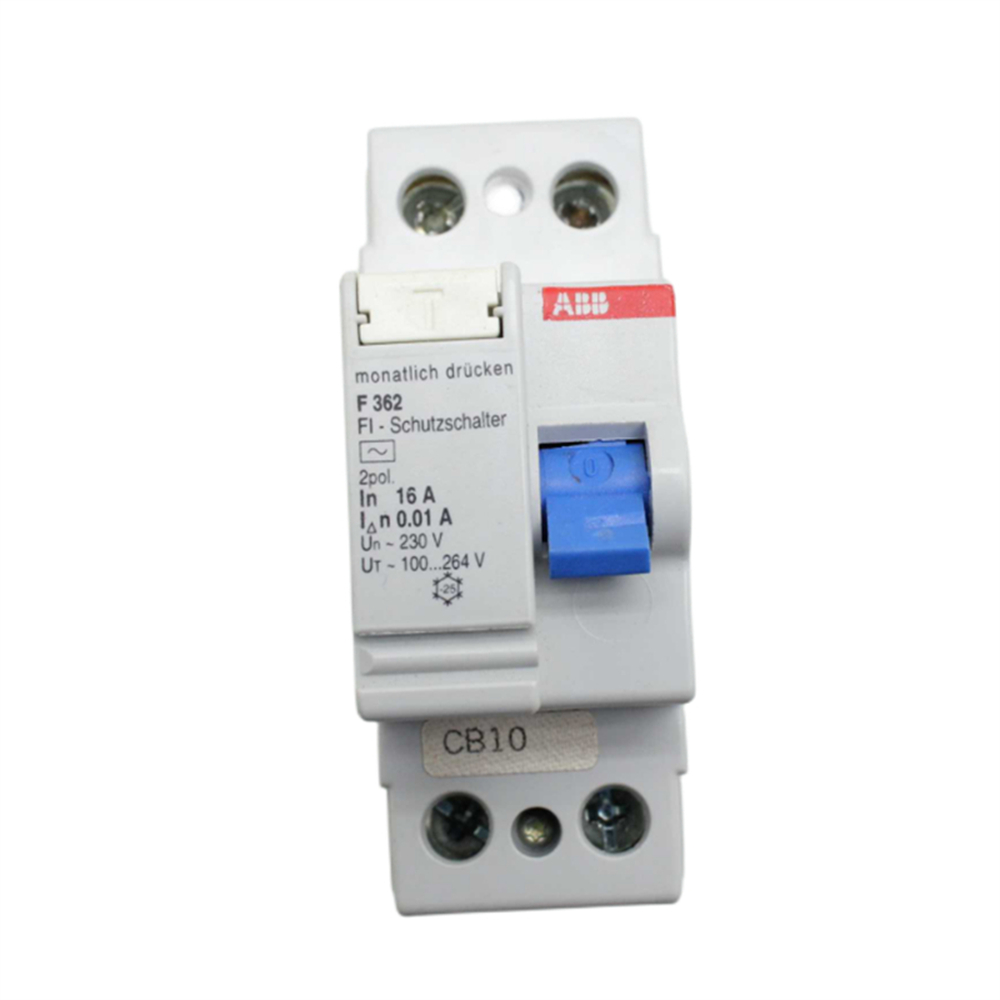

The ABB F362 is a Residual Current Circuit Breaker (RCCB), or Residual Current Device (RCD), that is designed to protect people from electric shock. It does this by monitoring the current flowing through a circuit and disconnecting the circuit if it detects a fault current. Fault currents are caused by insulation failures or other problems that can cause dangerous levels of current to flow through a person.
The F362 is a two-pole RCCB, which means that it can protect two circuits. It is available in a variety of ratings, including 16A, 25A, 40A, and 63A. It has a sensitivity of 30mA, which means that it will trip if it detects a fault current of 30mA or more. The F362 is also available with a higher sensitivity of 10mA, which is more sensitive to earth leakage currents.
Here are some of the specifications of the ABB F362:
- Rated voltage: 230V AC
- Rated frequency: 50Hz
- Rated current: 16A, 25A, 40A, or 63A
- Sensitivity: 30mA or 10mA
- Breaking capacity: 10kA
- Number of poles: 2
- Mounting: DIN rail
- Dimensions: 80mm x 71mm x 44mm
- Weight: 0.3kg
