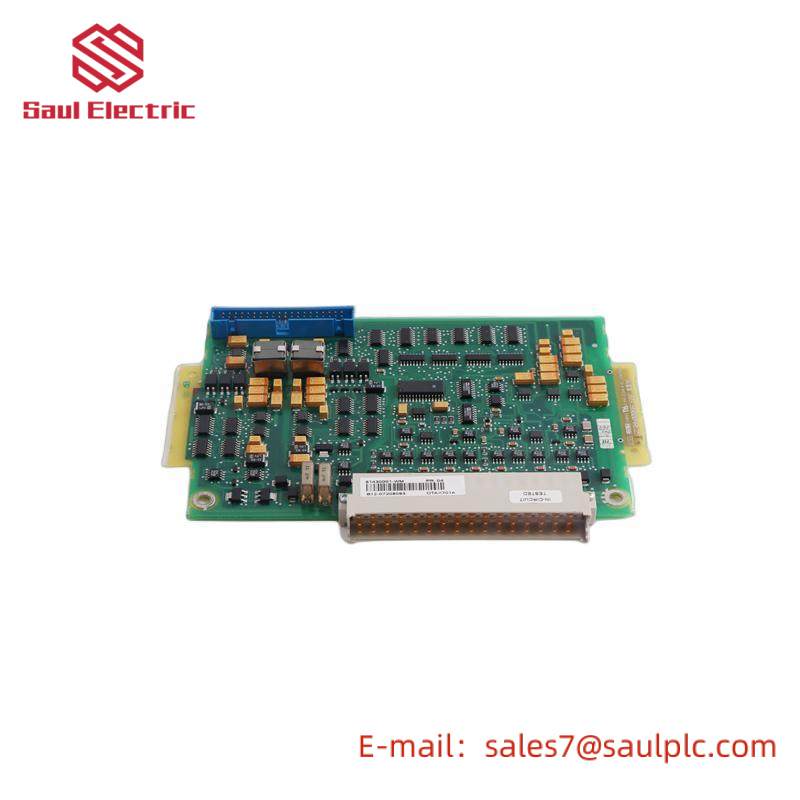

ABB DTAX701A 61430001-WM – High-Performance Digital Output Module

Product Type:Output Module

Brand:ABB

Model:DTAX701A

Module Number:61430001-WM

Operating Voltage:DC 24V

Current Rating:1A

Switching Capacity:2A at 24VDC

Connection Type:MODBUS TCP/IP

Dimensions (LxWxH):120mm x 50mm x 30mm

Weight:0.15kg

Environmental Conditions:Operating Temperature: -20°C to +60°C; Storage Temperature: -40°C to +85°C

Protection Class:IP20

Compliance:CE, UL, CSA, FCC

    The ABB DTAX701A 61430001-WM digital output module is engineered to deliver high reliability and efficiency in industrial environments. It features an advanced relay contact design that ensures quick switching and low power consumption, making it ideal for applications requiring high-speed and precise control over outputs.

    With a versatile voltage range from 12V to 24V DC, this module is compatible with various industrial power supplies, ensuring seamless integration into existing systems. Its compact DIN rail mount design allows for easy installation and space-saving solutions, enhancing operational flexibility.

    Equipped with eight channels, the DTAX701A offers ample capacity for managing multiple outputs simultaneously, catering to the diverse needs of manufacturing, automation, and process control sectors. The module’s robust IP20 enclosure rating provides protection against dust and light splashes, ensuring durability in harsh industrial settings.

    Operating within a temperature range of -25°C to +60°C, this module maintains optimal performance across a wide variety of environmental conditions, from cold storage facilities to hot production lines. The lightweight design (0.2 kg) ensures minimal strain on mounting hardware and reduces overall system weight.

    Designed with user-friendliness in mind, the ABB DTAX701A 61430001-WM output module comes with comprehensive documentation and compatibility with ABB‘s suite of control systems, facilitating quick setup and integration. This makes it an excellent choice for upgrading or expanding existing automation infrastructures, promoting productivity and efficiency in industrial operations.
