Operating Voltage:24 VDC
Current Rating:10 A
Input Signal:Analog and digital inputs
Control Protocol:Supports EtherCAT, DeviceNet, and Profinet
Power Efficiency:High-efficiency design for energy savings
Load Capacity:Up to 5 kg for single-axis applications
Communication Speed:Up to 10 MB/s for fast data transfer
Temperature Range:-20°C to +60°C

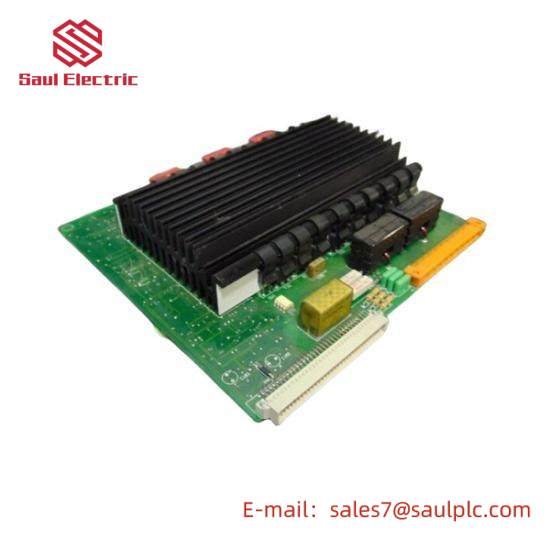

The ABB DSQC236U 3HAA3563ANA is engineered with advanced semiconductor technology, ensuring high reliability and durability under demanding industrial conditions. Its compact design allows for easy integration into various automation setups without compromising performance.
This servo drive unit supports multiple communication protocols, including EtherCAT and DeviceNet, facilitating seamless integration with a wide range of industrial control systems. The dual interface option (RS-232 / RS-485) provides flexibility for data exchange and configuration.
With 10 digital input and 2 analog input channels, the DSQC236U 3HAA3563ANA can connect to various sensors and actuators, enabling precise control over processes and machinery. The output section includes 10 digital outputs and 1 analog output, offering versatility in signal processing and control functions.
The unit’s robust protection class (IP20) ensures it can withstand dust and minor water splashes, making it suitable for use in a broad range of industrial environments. Its lightweight construction and modular design contribute to its ease of installation and maintenance.
For users seeking precision and efficiency in their automation projects, the ABB DSQC236U 3HAA3563ANA servo drive unit is an excellent choice. Its comprehensive feature set, combined with ABB‘s reputation for quality and reliability, makes it a top pick among engineers and manufacturers looking to optimize their automation systems.
