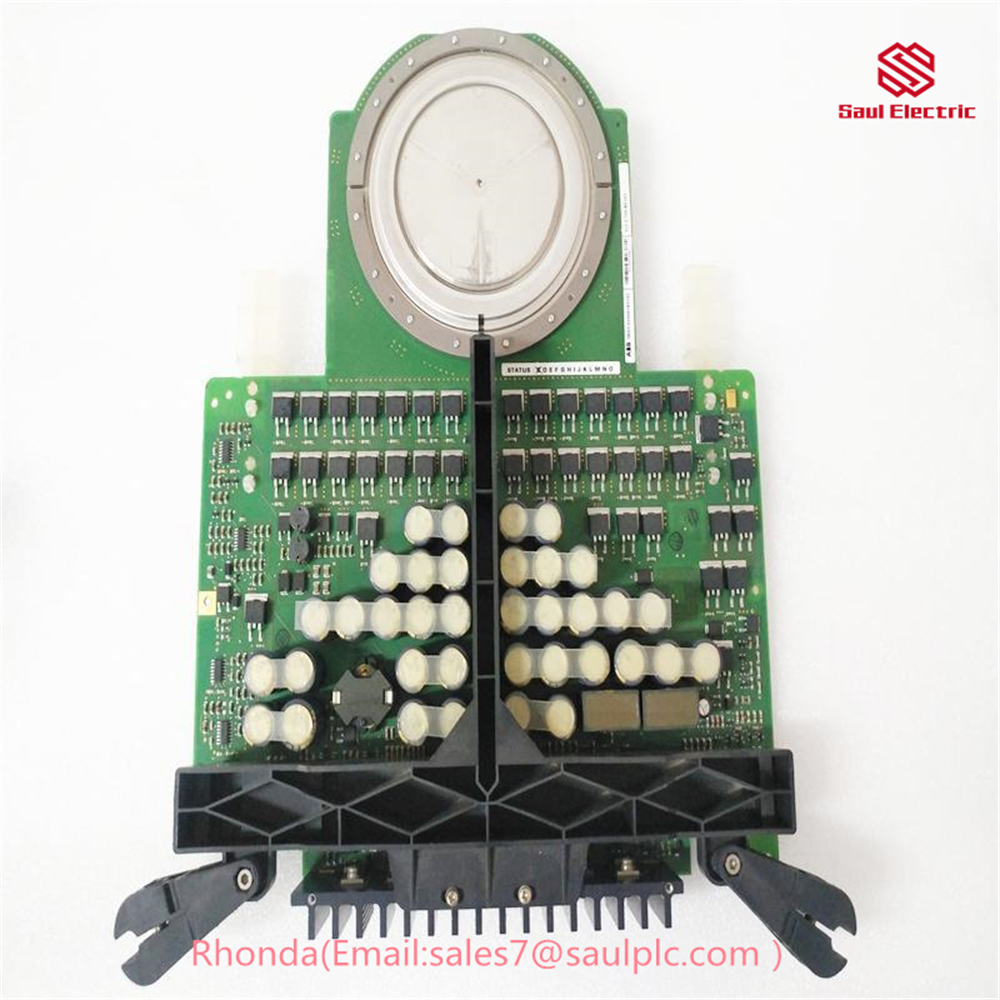

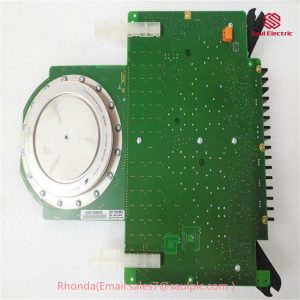

The ABB 5SHY3545L0010 is a 5kV, 3500A Insulated Gate Commutated Thyristor (IGCT) module. It is a high-performance, reliable, and robust semiconductor device that is designed for use in a wide range of industrial applications.
Product parameters:
- Type: 5SHY3545L0010
- Voltage class: 5kV
- Current rating: 3500A
- Switching frequency: up to 1kHz
- Operating temperature range: -40°C to +85°C
Usage method:
The ABB 5SHY3545L0010 IGCT module can be used in a wide range of industrial applications, including:
- Frequency converters
- Static VAR compensators (SVCs)
- High-voltage direct current (HVDC) transmission systems
- Industrial drives
- Renewable energy systems
To use the IGCT module, you will need to connect it to a suitable gate drive unit and cooling system. You will also need to design and build a circuit that protects the IGCT module from overvoltage, overcurrent, and short circuits.
If you need detailed technical information, welcome to contact us.
