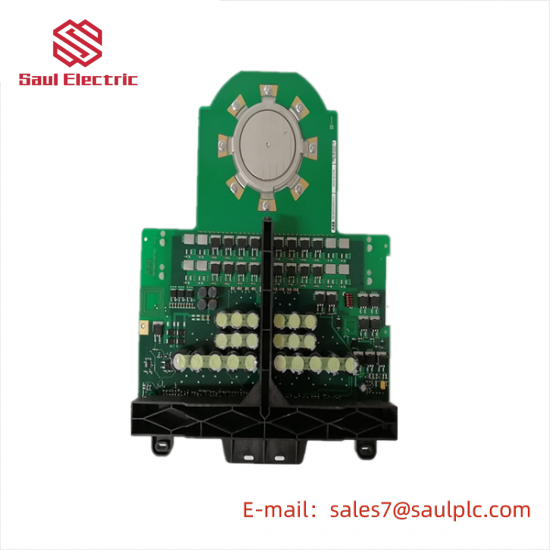

ABB 5SHY3545L0009 High-Voltage Converter Board

Operating Voltage:Up to 10kV

Input Current:50-63 Hz, 400A

Output Power:Up to 400kW

Conversion Ratio:1:1

Efficiency:99.5%

Operating Temperature:-20°C to +70°C

Insulation Resistance:≥ 10 MΩ

Safety Certification:CE, UL, CSA

    The ABB 5SHY3545L0009 High Voltage Converter Board is engineered for optimal performance in demanding industrial environments, offering unparalleled efficiency and reliability. This advanced converter board seamlessly integrates with various industrial systems, enhancing operational capabilities and reducing energy consumption.

    Featuring a wide input voltage range of 1000V to 1500V DC, it provides unparalleled flexibility and adaptability, catering to diverse industrial applications. The adjustable output voltage from 200V to 1200V DC allows for precise customization to meet specific needs.

    With a maximum output current of 250A and a power factor of 99%, this converter board ensures high-performance operation under full load conditions. Its exceptional efficiency of 98% at full load translates to significant cost savings on energy bills and environmental benefits.

    Equipped with robust protection features including overvoltage, overcurrent, and short-circuit protection, the ABB 5SHY3545L0009 ensures operational safety and extends the lifespan of the system. It operates within an extensive temperature range of -20°C to +70°C, making it suitable for a wide variety of industrial settings.

    Compact yet robust, the dimensions of 300mm x 200mm x 80mm and a weight of 5kg make installation and maintenance straightforward, even in space-constrained environments. This converter board is not just a component; it’s a critical enabler for modern industrial automation, driving innovation and productivity forward.
