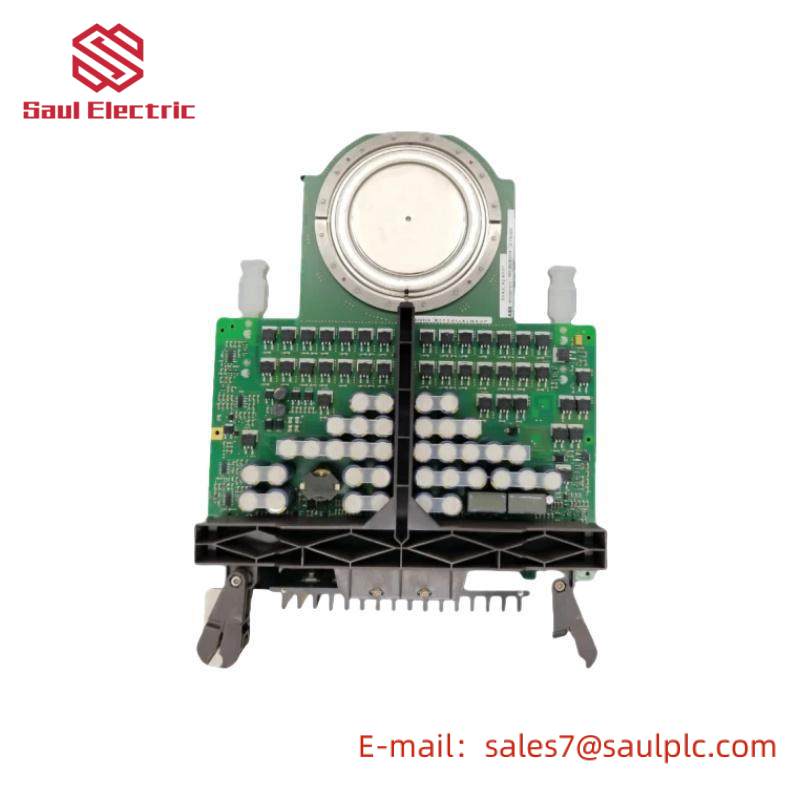

ABB 5SHY 3545L0009 IGCT MODULE – High-Performance Inductive Gate Commutating Transistor Module

Operating Voltage:DC 1200V

Maximum Current:4500A

Switching Frequency:Up to 10kHz

Temperature Range:-40°C to +150°C

Insulation Resistance:1000MΩ at 500V DC

Electrical Lifetime:Over 1 million cycles

    The ABB 5SHY 3545L0009 IGCT MODULE is engineered to deliver exceptional reliability and efficiency in demanding industrial environments, making it an ideal choice for advanced electric drive systems and power management solutions.

    Featuring state-of-the-art semiconductor materials, this module ensures minimal switching losses and enhanced system performance, contributing to reduced energy consumption and improved operational efficiency.

    Equipped with robust insulation and cooling mechanisms, the 5SHY 3545L0009 is designed to withstand harsh conditions without compromising on performance, offering extended service life and lower maintenance costs.

    Integrating seamlessly with ABB‘s comprehensive portfolio of power electronics components, this module enables optimized system integration, ensuring compatibility with various control strategies and interface protocols.

    Designed with ease of installation and maintenance in mind, the ABB 5SHY 3545L0009 IGCT MODULE comes with comprehensive documentation and support services, facilitating quick setup and minimizing downtime for end-users.
