Operating Temperature Range:-40°C to +175°C
Input Voltage Range:300V DC to 1200V DC
Output Current:Up to 1000A
Switching Frequency:Up to 100 kHz
Insulation Resistance:≥ 10 MΩ at 500V DC
Efficiency Rating:≥ 98% at full load
Mechanical Reliability:Over 10 million switching cycles
Protection Features:Overcurrent, Overvoltage, Thermal Protection

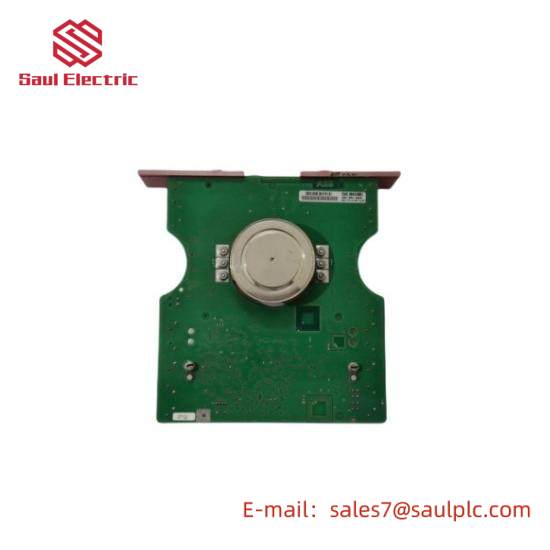

The ABB 5SDF0460F0001, 416-005-1 IGBT Modules are part of our comprehensive line of power semiconductor devices, designed to meet the stringent demands of modern industrial automation. These modules feature advanced insulation and temperature management capabilities, ensuring optimal performance under various operating conditions.
With their robust design and high-efficiency characteristics, these IGBT modules are ideal for driving large motors, controlling power electronics, and managing complex industrial processes. They are compatible with a wide range of control systems and can be easily integrated into existing infrastructure for immediate enhancement.
Key design features include enhanced thermal conductivity for improved heat dissipation, which reduces downtime and extends the lifespan of the system. The modular design facilitates easy maintenance and replacement, minimizing operational disruptions.
Our IGBT modules come equipped with advanced signal processing capabilities, enabling precise control over power distribution and energy consumption. This not only improves the overall efficiency of the system but also contributes to environmental sustainability by reducing energy waste.
ABB‘s commitment to quality and innovation is reflected in every aspect of these modules, from their construction materials to their durability testing. We stand behind our products with a reliable warranty, offering peace of mind to our customers.
