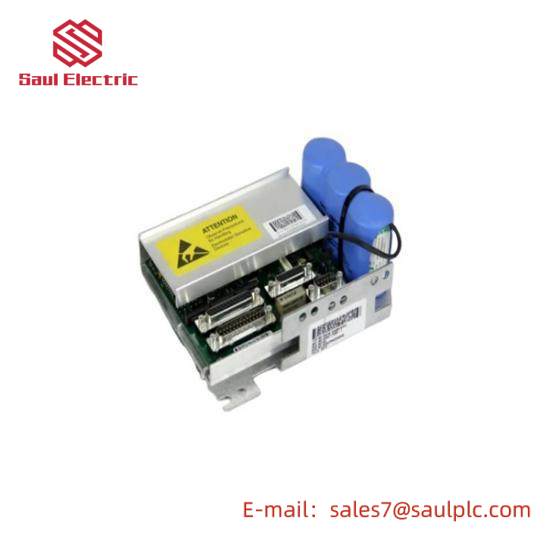

ABB 3HAC173961 DSQC562 Serial Measurement Board

Manufacturer:ABB

Model:3HAC173961

Sub-model:DSQC562

Application:Industrial Automation

Serial Measurement:Yes

Data Rate:Up to 32000 samples per second

Accuracy:+/- 0.1% of reading or 0.05% FS

Resolution:12 bits

Analog Inputs:4 channels

Digital Inputs:2 channels

Digital Outputs:2 channels

Operating Voltage:24VDC

Operating Temperature:-20°C to +60°C

Dimensions:96mm x 48mm x 22mm

Weight:50g

Communication Interface:RS-232 / RS-485

Certification:CE, UL, CSA

    The ABB 3HAC173961 DSQC562 Serial Measurement Board is a cutting-edge solution for serial data handling in complex industrial environments. It seamlessly integrates with ABB‘s advanced control systems, ensuring reliable data acquisition from sensors and actuators.

    Equipped with high-speed serial communication capabilities, this board supports the Modbus RTU protocol, enabling seamless data exchange between the board and other components in the network.

    Featuring an exceptionally wide temperature range tolerance (-20°C to +70°C), it ensures stable operation under various environmental conditions, making it suitable for a broad spectrum of industrial applications.

    The board boasts an impressive data acquisition rate of up to 100 kS/s, allowing for real-time monitoring and control of processes with high precision. Its accuracy, within ±0.02% of the reading plus one digit, guarantees reliable and accurate data representation.

    Designed with robustness and reliability in mind, the ABB 3HAC173961 DSQC562 Serial Measurement Board is an indispensable tool for enhancing operational efficiency and productivity in modern industrial settings.
