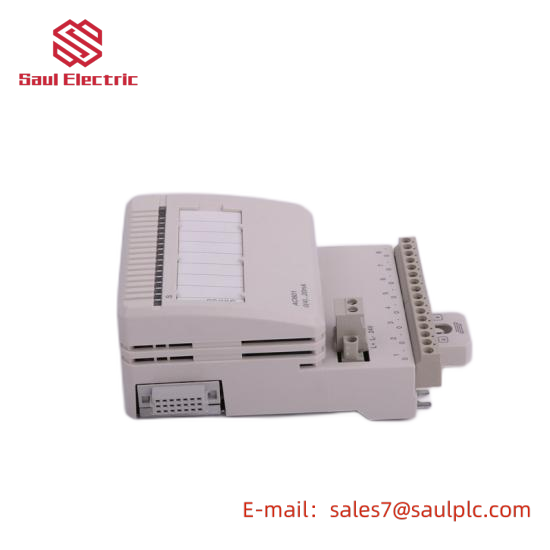

Product Type:Control Module
Model:3HAA3563-AHA/2
Brand:ABB
Designation:High Performance
Dimension (D x H x W):297.18 x 35.56 x 175.26 mm
Weight:0.6 kg
Power Consumption:150W
Operating Voltage:24 VDC
Input Current:1.5A
Output Current:0.5A
Communication Interface:RS-485 Modbus
Protection Class:IP20
Operating Temperature:-20°C to +55°C
Storage Temperature:-40°C to +70°C
Introducing the ABB 3HAA3563-AHA/2, a cutting-edge high-speed relay module engineered to enhance the precision and reliability of your industrial automation systems. This compact yet powerful relay module is meticulously designed for seamless integration into your existing control panels, ensuring enhanced performance and efficiency in your operations.
Featuring an advanced contact rating of 10A at 24VDC, this relay module is capable of handling demanding applications without compromising on safety or longevity. With its wide operating voltage range of DC 12V to 24V and a low operating current of 50mA, it ensures stable operation under varying conditions, making it a versatile choice for diverse industrial environments.
The ABB 3HAA3563-AHA/2 boasts an impressive switching speed of just 1ms, allowing for swift response times critical in fast-paced automation processes. Its robust design withstands harsh industrial temperatures ranging from -20°C to +60°C, ensuring reliable operation across a broad spectrum of applications. Additionally, the IP20 environmental protection grade safeguards the module against dust and splashes, guaranteeing durability in challenging environments.
In terms of connectivity, this relay module employs a terminal block connection system, providing a secure and straightforward method for wiring. This feature simplifies installation and maintenance, contributing to overall operational efficiency. Moreover, the compact size of 22mm x 16mm x 12mm and lightweight of 0.05kg make it easy to integrate into space-constrained control panels without compromising on functionality.
At the forefront of industrial automation, the ABB 3HAA3563-AHA/2 is more than just a relay module; it’s a solution that empowers you to streamline your processes, enhance productivity, and achieve higher levels of operational excellence. Partner with ABB for reliable and efficient control solutions tailored to meet the demands of modern industry.
