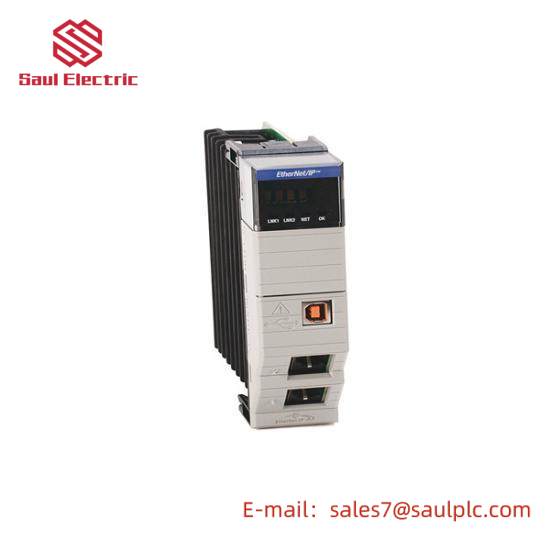

AB 1756-EN2TSC Secure Industrial Control Interface Module

Model Type:ControlLogix Communication Module

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Connection Cables:802.3 Compliant Shielded Or Unshielded Twisted Pair

Communication Speed:10/100 MBPS

    The AB 1756-EN2TSC Secure Interface Module is a critical component for enhancing security in industrial automation environments. It facilitates secure and robust data exchange between ControlLogix controllers and third-party devices, ensuring reliable operation in harsh industrial settings.

    With an open-type enclosure, this module is designed to withstand environmental variations, making it suitable for use in diverse industrial conditions. The ability to operate within a temperature range from 0 to 60 degrees Celsius ensures its durability in various climates.

    Featuring a power supply of 3 mA at 24 VDC, the module supports efficient communication and data transfer. Its adherence to 802.3 compliant shielded or unshielded twisted pair cables ensures compatibility with a wide range of network infrastructure.

    The module’s Ethernet connectivity offers high-speed data transfer rates, supporting 10/100 MBPS speeds. This capability is crucial for seamless integration into industrial networks, enabling real-time monitoring and control operations.

    While lacking a USB port, the AB 1756-EN2TSC focuses on essential functionalities for industrial communication. Its design ensures that users can leverage advanced security features without compromising on the primary objectives of data integrity and network reliability.
