Model Type:SLC500
Model Number:1746-OB16
Manufacturer:Allen Bradley
Type:Digital DC Output Module
Number Of Channels:16
Input:24 VDC
Output:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating:{“Backplane”:”0.28 A”,”Continuous Current Per Output”:”0.25 A At 60 DEG C”,”Continuous Current Per Module”:”4 A At 60 DEG C”}
Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”}
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95%

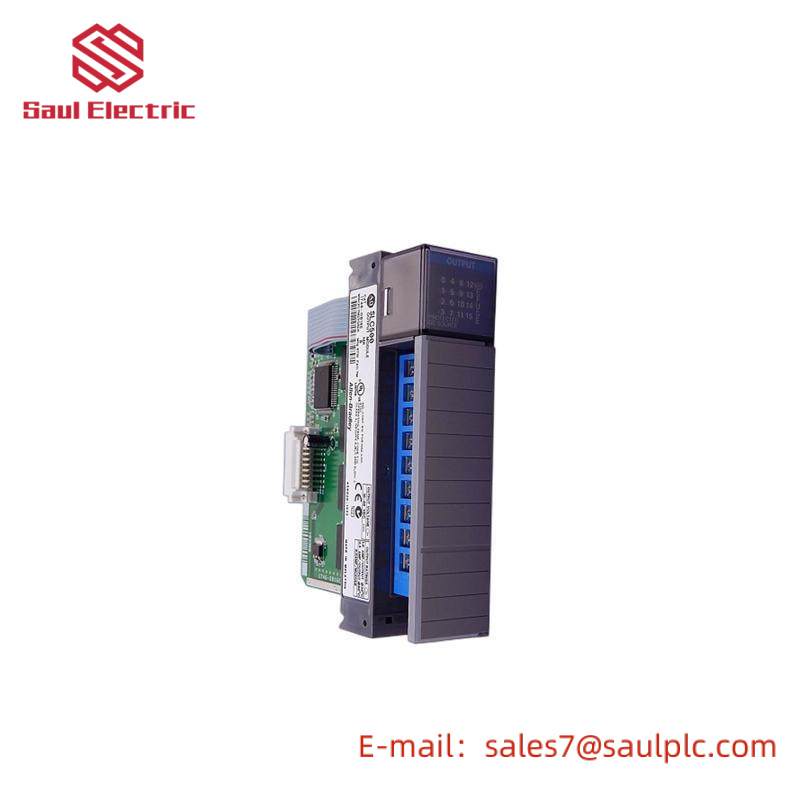

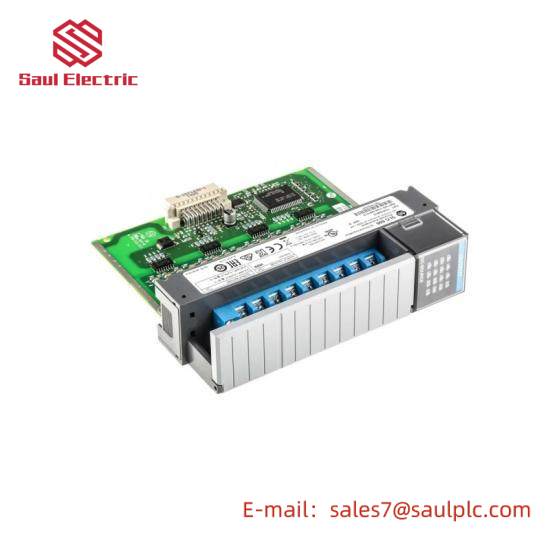

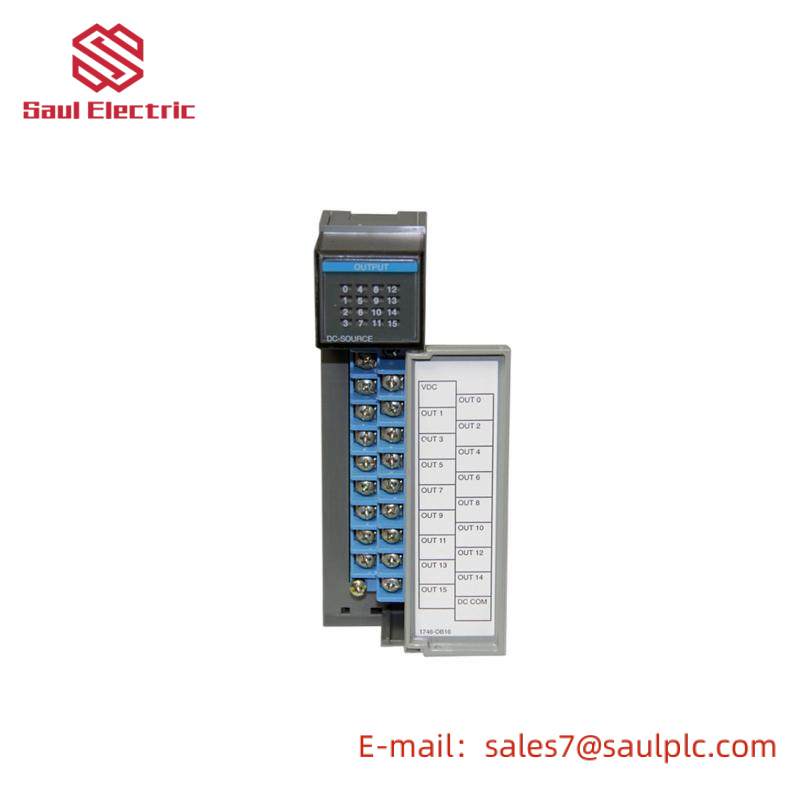

The A-B 1746-OB16 Digital DC Output Module is a high-performance module designed for industrial automation applications. It features 16 channels of digital output, providing flexibility and reliability for controlling various industrial devices and systems. With an input voltage of 24 VDC and an output range of 10 to 50 VDC, this module ensures compatibility with a wide range of equipment.
This module boasts an on-state voltage drop of just 1.2 V and off-state output leakage of 1 MA, ensuring minimal power loss and high efficiency. The continuous current rating per output at 60 DEG C is 0.25 A, with a maximum continuous current per module of 4 A at the same temperature, offering robust performance under demanding conditions.
Built with isolation specifications of 500 VDC for communication circuits and 1500 VAC for the backplane, this module provides superior protection against electrical interference and damage. The open-type enclosure allows for easy installation and maintenance, while the chassis mounting method ensures secure integration into existing systems.
Designed for use in environments ranging from 0 to 60 DEG C and capable of handling humidity levels between 5% and 95%, this module is well-suited for a wide array of industrial settings. Whether you’re managing complex machinery or integrating new systems, the A-B 1746-OB16 Digital DC Output Module delivers the reliability and versatility you need.
